Saburu Forester Wiring Diagram – 2004 Factory Manual

If you’re tracing a short in a Forester and the aftermarket diagram shows the wrong wire color, you’ve already lost half a day. I’ve seen guys chase ghosts for hours because some third-party reprint swapped pins on a connector. That’s why this Saburu Forester Wiring Diagram is what I keep in the shop reference cabinet. 315 pages of OEM data, direct from Saburu’s engineering department. The wiring section alone covers 28 subsystems, from the basic power supply routing to the immobilizer system. No one else gives you that.

Here’s the reality: a wiring diagram is only as good as its source. Aftermarket publishers often lift schematics from earlier model years or generic templates. Factory Saburu diagrams show every splice, every ground location, and every connector pin. When I had a Forester with an intermittent fuel gauge failure, the factory diagram on page 186 (Fuel Gauge System) showed me the signal path through the combination meter. The aftermarket diagram skipped that junction entirely. That’s the difference between a two-hour fix and a two-day headache.

Saburu Forester Wiring Diagram: 315 Pages of Factory Data

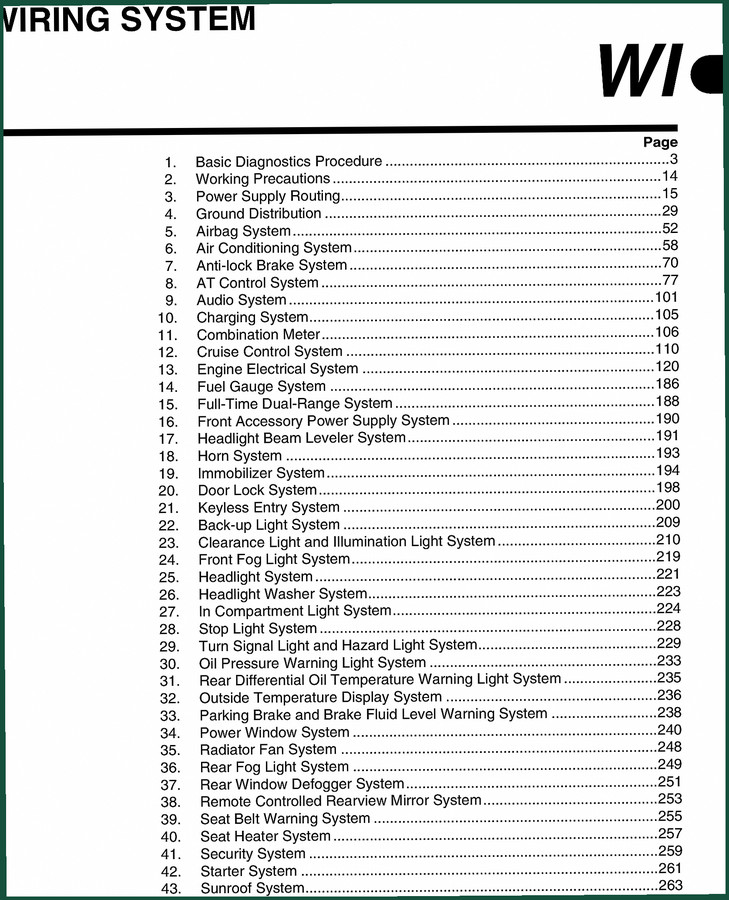

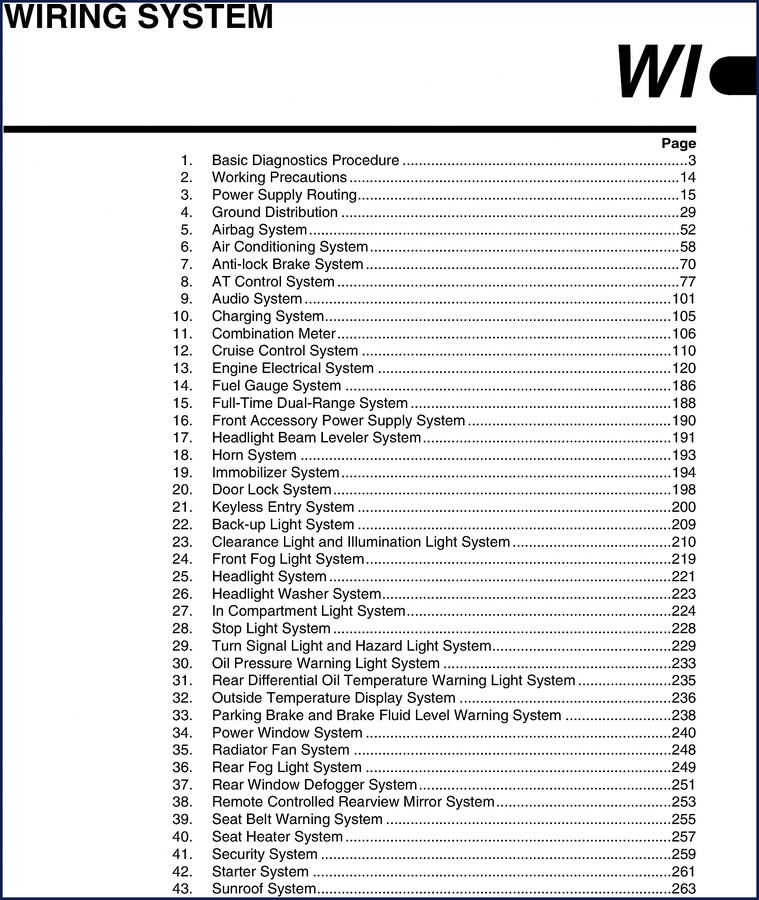

This isn’t a reprint of a reprint. The PDF comes from the same digital source Saburu used for dealer service departments. You get the full WIRING SYSTEM section from the 2004 Forester service manual. Every subsystem is broken down by function, not by guesswork. The table of contents lists 29 distinct systems, including the Engine Electrical System (page 120), Anti-lock Brake System (page 70), and the AT Control System. Each one has its own diagnostic procedure, working precautions, and connector views. Want to verify the power ground distribution? Page 29 shows the exact ground points for the Forester chassis. That kind of detail lets you probe with confidence.

Where Does the Manual Cover the Engine Electrical System?

The Engine Electrical System section on page 120 includes the complete wiring for the ECM, fuel injectors, sensors, and ignition system. It’s not just a block diagram – it gives you wire colors, connector terminal numbers, and voltage values at each test point. For a DIY owner replacing a crankshaft position sensor, this means you can confirm the signal wire before you pull the old part. For the shop tech, it means you can bypass the ECM harness check in 15 minutes instead of 45. The Saburu Factory manual also includes the immobilizer system wiring on page 194, which is critical if you’re dealing with a no-start that isn’t throwing codes. Most aftermarket diagrams omit the immobilizer entirely.

ABS Diagnostics: Factory Procedure

Anti-lock Brake System wiring is one of the most mis-documented areas in aftermarket literature. The factory manual dedicates a full section to the ABS (page 70) with the exact pinout for the hydraulic unit and wheel speed sensors. I had a Forester where the right rear sensor was intermittent – the problem was a corroded pin in the connector under the car. The factory diagram showed that connector location and pin numbering, so I could backprobe without removing the harness. Saved a brake line bleed job and a new sensor. The manual also includes Brake system inspection procedures from the service section – not just the wiring but the physical checks for Brake lines and fluids.

Transmission Control System – AT Control System

The AT Control System wiring (page 77) covers the shift solenoids, torque converter clutch, and transmission range switch. If you’ve ever tried to diagnose a Forester that won’t shift past third, you know the value of having the correct solenoid activation pattern. The factory diagram gives you the ECM pin, the solenoid resistance specs, and the connector views. It also cross-references the Transmission gear oil specifications from the Periodic Maintenance section. That section includes the 4-speed automatic and manual transmission wiring, plus the full-time dual-range system on page 188. No aftermarket manual I’ve seen includes that dual-range transfer case wiring.

Why OEM Wiring Diagrams Beat Aftermarket

Aftermarket publishers often reuse the same generic wiring diagrams across multiple models. Saburu’s factory wiring is specific to the 2004 Forester. The Suspension section (page 22 of the Specifications) lists the front and rear suspension dimensions, but the wiring section shows the ride height sensor connections for the headlight beam leveler system (page 191). That’s a system unique to the Forester – you won’t find it in a generic import book. The Electrical specifications on page C list the alternator output and battery capacity. That data is integrated into the charging system wiring diagram (page 105). When you use OEM documentation, you’re not filling in gaps with guesses.

For related manuals, check out Body Electrical Practice Electrical Wiring Diagrams if you need a broader foundation, or LDV Electrics 1 Vehicle Wiring 1994 Onwards RHD for other makes. The LDV Electrics 1 Vehicle Wiring Diagrams 1987-1992 also covers older vehicles. For a deeper understanding of automotive circuits, refer to Automotive Wiring principles on Wikipedia, and the Automotive Industry Overview for context on wiring standards.

Frequently Asked Questions

Does this wiring diagram include pinouts for the ECM?

Yes. Page 120 gives the full Engine Control Module connector view with terminal numbers and wire colors for the 2004 Forester. You also get the ECM power and ground distribution from the Power Supply Routing section on page 15.

Will this work for a 2005 Forester?

No. This is specifically the 2004 model year. Saburu made wiring changes between years, especially in the immobilizer and ABS systems. Using a 2004 diagram on a 2005 could lead to misdiagnosis.

Are torque specs included in a wiring diagram?

Not directly. The manual is all electrical – no engine or suspension torque values. For those, you need the full service manual. But the wiring section does reference exploded views of connectors and ground bolts, and the Specifications section (page C) lists electrical system capacities.

How many pages cover the transmission wiring?

The AT Control System runs from page 77 to page 100, so roughly 24 pages including shift lock, torque converter clutch, and diagnostic charts. The Full-Time Dual-Range system adds another 2 pages on page 188.

If you’re working on a 2004 Forester and you need the actual factory wiring – not a copy of a copy – this 315-page PDF is what the dealer techs get. You can print it, bookmark it, and reference it on the bench without relying on factory lights. Access the Factory Manual now and stop guessing which wire goes where.
