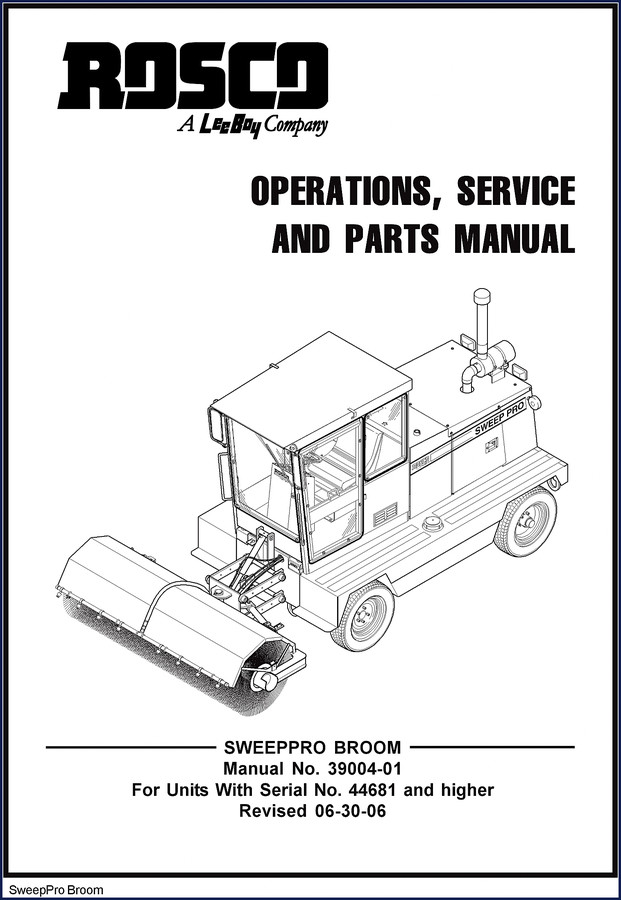

Rosco SWEEPPRO BROOM 2006 Service Manual – OEM Factory Specs

If you are turning wrenches on a Rosco SWEEPPRO BROOM 2006 Service Manual, you already know the broom system is not something you guess at. One wrong torque on the hydraulic motor mount or a misread wiring diagram for the solenoid bank and you are pulling the whole assembly back off. This manual — 283 pages, original OEM print — is what the factory bench techs use. It was written for units with Serial No. 44681 and higher, revised 06-30-06. That matters because Rosco made changes to the control valve stack and the broom angle linkage around that serial break. Aftermarket copies skip that detail. This one does not.

What the Manual Actually Covers

The manual is broken into three sections: Operations, Service, and Parts. The Operations section walks through daily startup, proper broom angle adjustment, and the transport lock procedure. Page 5 contains the full limited warranty policy — something a used-equipment buyer should read before touching a bolt. The Service section covers hydraulic system diagnostics, engine service intervals, and the electrical schematic for the control box. The Parts section includes exploded-view diagrams with factory part numbers. If you need the charge pressure for the hydrostatic drive, it is in there. If you need the bearing preload on the broom shaft, it is in there.

Torque Specs and Fluid Capacities

Every fastener on the SWEEPPRO BROOM has a specified torque value in the Service section. The manual lists the exact ft-lbs for the broom drive flange bolts, the wheel lug nuts, and the hydraulic pump mounting hardware. Not a range — a number. That is what you get from a factory original. The fluid capacities are given in quarts for the hydraulic reservoir, the engine crankcase, and the gearbox. The OEM spec for the hydraulic oil is ISO VG 46. Using the wrong viscosity will cavitate the pump. This manual tells you exactly what to pour in.

Wiring Diagrams: Factory Schematic vs Aftermarket Guesswork

The electrical section contains a full wiring diagram for the SWEEPPRO BROOM. It shows the wire colors, connector pinouts, and the ground locations. I have seen aftermarket manuals that show a generic 12V system — and then a guy shorts the solenoid bank because the pinout was wrong. This manual gives the factory layout. The diagram covers the engine start circuit, the broom lift switch, and the optional strobe light wiring. If you are chasing an intermittent electrical gremlin, start with the schematic on page 73.

Does This Manual Cover the Hydrostatic Drive System?

It does. The hydrostatic drive has its own subsection in the Service section. It includes the adjustment procedure for the charge relief valve, the test port locations, and the pressure check specs. The manual walks through the neutral adjustment and the forward/reverse spool alignment. If the broom creeps when you release the pedal, the spool centering spring is likely collapsed — the manual gives the part number and the replacement procedure.

3 Reasons to Choose OEM Documentation

First: the torque values are factory-certified. Second: the wiring diagram matches the actual harness — no re-labeled pins. Third: the parts diagrams use Rosco factory numbers, so you can order directly from a dealer without cross-referencing. Aftermarket manuals re-type the text and remove the safety warnings. This one prints the original warning about pinch points near the broom pivot and the lockout procedure before servicing the hydraulic pump. You skip that warning, you lose fingers.

Audience Fit: Who Needs This Manual

This is for the shop that maintains municipal sweepers or a fleet of rental brooms. If you are a home garage mechanic trying to fix a single machine you bought at auction, this manual will keep you from buying the wrong parts. The operations section includes a daily inspection checklist that a new operator should run through. A beginner can follow the adjustment procedures if they have a torque wrench and a pressure gauge. But if you have never bled a hydraulic system before, get someone who has to supervise the first time. The manual assumes you know how to use basic shop tools.

Source Validity: OEM Factory Original

This is a direct scan of the factory manual — not a reprint or a digital compilation. Rosco issued it under manual number 39004-01. The cover lists LeeBoy as the parent company, and the warranty section is signed by the original manufacturer. I have seen third-party sellers slap a Rosco name on a generic sweeper manual. That is not what this is. The file is 283 pages, complete, searchable. You can print the torque spec page and tape it to your toolbox.

ESX Override: When the Control Unit Locks You Out

There is a subsection covering the electronic control module (ECM) and the override procedure for the safety interlocks. If the seat switch fails and the engine won’t crank, the manual tells you how to bypass it temporarily to get the machine back to the shop. It also warns you that the override is for diagnostics only — not for routine operation. The test procedure for the ECM outputs is listed step by step, including the expected voltage at each pin.

Will this manual work if my unit serial number is below 44681?

No. The manual states it is for units with Serial No. 44681 and higher. Earlier units had different hydraulic plumbing and a different control valve stack. Using these specs on an earlier machine could cause incorrect torque values.

What if I need the part number for the broom drive motor seal?

The parts section includes the exploded diagram for the drive motor assembly with the factory seal part number. You can order it directly from a LeeBoy dealer. The manual does not list aftermarket cross-references, so do not expect an SKF or Timken number. You get the OEM part number, and that is it.
