Renault Trucks KXX, K7J, K7M 2004 Technical Manual – Factory-Level Engine Specs

If you’re pulling a K7J or K7M gasoline four-cylinder out of a Renault Trucks KXX and you don’t have the factory torque sequence in front of you, you’re gambling with head gasket life. I’ve seen too many stripped threads and warped heads from guys relying on aftermarket “equivalent” specs. This Renault Trucks KXX, K7J, K7M 2004 Technical Manual is the original OEM document – 148 pages of what the factory floor used. It tells you the exact order for the 10A-4 torque table, the specialized tool list on page 10A-39, and the systematic replacement parts you shouldn’t reuse. No translation errors, no generic drawings.

Torque Specs and Tolerances – Page 10A-4

That torque page isn’t a suggestion. The manual states fasteners torqued in degrees get ±6° tolerance; Nm values get ±10%. You need those numbers for the cylinder head, main bearing caps, and timing components. The same section covers identification of K7J variants (700, 701, 710) and K7M variants (702, 703, 704, 710, 720, 744, 745, 746, 790). I’ve had to correct guys who used the wrong K7M sequence and ended up with a seized camshaft. Page 10A-2 shows exactly where to find the engine type stamp – between the exhaust manifold and flywheel.

Engine Overhaul Coverage – What’s Inside

The table of contents runs from Generalidades (10A-1) through Distribución – culata: Reposición (10A-139). It covers disassembly and reassembly of the top end and bottom end separately: Desvestido de la culata, Parte alta del motor: Control, Bloque motor: Vestido. Every step is documented with the specialized tooling required – listed under Utillaje especializado (10A-39). If you’re tackling a timing belt job, the Correa de distribución: Extracción and Reposición sections detail the lockout procedures. You also get the list of systematically replaced parts (Piezas que hay que sustituir sistemáticamente) – these aren’t optional. I keep a printout in my toolbox for the K7M 710.

Who This Manual Serves

Home garage guys who own a Renault Trucks KXX box truck or light commercial. Shop owners who get these older gas K-series engines in for overhaul. You need the factory cleaning specs (Parte alta del motor: Limpieza) and the control measurements (Bajos de motor: Control) to know if the block is still in tolerance. This manual gives you the numbers, not a guess. Don’t rely on a third-party summary – the OEM document is the only source for the tightening angles and ingredient specs (Ingredientes, page 10A-35).

Original Print vs Aftermarket Copies

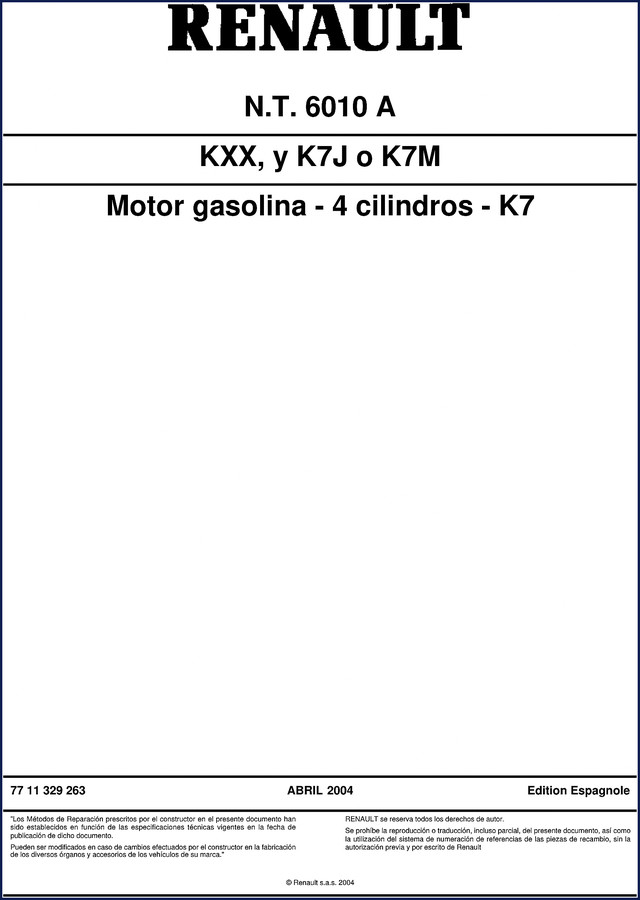

Aftermarket translations routinely drop the specialized tool references or swap torque values between engine versions. This is the April 2004 Spanish edition (edition espagnole) from Renault s.a.s., with the copyright notice and part number 77 11 329 263. It’s a scanned OEM PDF, not a retyped knockoff. The page numbers match the factory binder. If you’ve ever had a parts-counter guy argue that a head bolt is non-standard, you hand him this page and he shuts up.

7 Systems Covered – From Accessory Belt to Timing

The manual is organized as section 10A – CONJUNTO MOTOR Y BAJOS DE MOTOR. It walks you through accessory belt removal (Correa de accesorios: Extracción), distributor/cylinder head removal, then the bottom-end disassembly. The same sequence in reverse for reassembly. It includes a Cambio estándar (standard change) section that outlines the order of work for a complete engine rebuild. For the timing belt replacement, you get both extracción and reposición steps with the specific lock pins required. If you need to understand manual transmission mating procedures, the related Renault Trucks C S B C 405 Technical Manual – 805 Pages of Factory Specs covers that chassis side. For transmission-specific internal work, the Renault Trucks Mégane, Scénic Technical Manual 1999 | Factory Specs has clutch and gearbox data. And if you’re dealing with the gearbox separately, the Renault Trucks MB1, MJ3 Technical Manual – 93-Page Factory Transmission Guide is a good supplement.

Basics of gearbox operation are covered outside this manual – see Manual Transmission for theory. The hydraulic clutch linkage is also standard Manual Transmission design.

FAQ

Does this manual cover the complete engine overhaul including timing?

Yes. The 148-page manual covers top-end and bottom-end disassembly, cleaning, inspection, and reassembly plus timing belt replacement steps.

I only have basic mechanical experience – can I use this manual?

If you can read a torque spec and follow a sequence, yes. It assumes you own basic hand tools and the specialized tools listed on page 10A-39. The manual doesn’t hold your hand through oil change basics; it tells you the factory procedure for engine removal and rebuild. Expect to study the cleaning and control sections carefully before you start – especially the tolerances on page 10A-28 for Bajos de motor: Características. I’d recommend pairing it with a general engine theory guide if you’ve never done a K-series before, because the manual writes for a technician who knows where the water pump lives. Still, if you take it slow and respect the torque values, a competent DIYer can handle a head gasket or timing job with this document open on the bench. The tool list is your first checkpoint – don’t start until you have the correct locking pins and pullers.

You don’t need to reinvent the K7M’s cooling system or guess which gasket set to order. The factory manual has the part references and the sequence. Access the Factory Manual from AutoRepairManuals and keep it in your shop binder. Your engine will thank you after the first 100,000 miles.
