Renault Trucks C, S, B, C 405 Technical Manual

If you’ve ever stared at a Renault Truck transmission that won’t shift right, or a C 405 engine that’s leaking oil and you’re not sure if the torque on the oil pan bolts is 1.8 daN.m or 2.0, you know the feeling. Factory specs are not a suggestion. They’re the difference between a job that holds up and a comeback that eats your Saturday. This Renault Trucks C, S, B, C 405 Technical Manual is 805 pages of the exact data the factory puts out — not a third-party rewrite. You get the same information a dealer tech pulls up. I’ve been turning wrenches 28 years, and I’ve seen too many stripped threads and blown gaskets from aftermarket books that round numbers off. This one doesn’t.

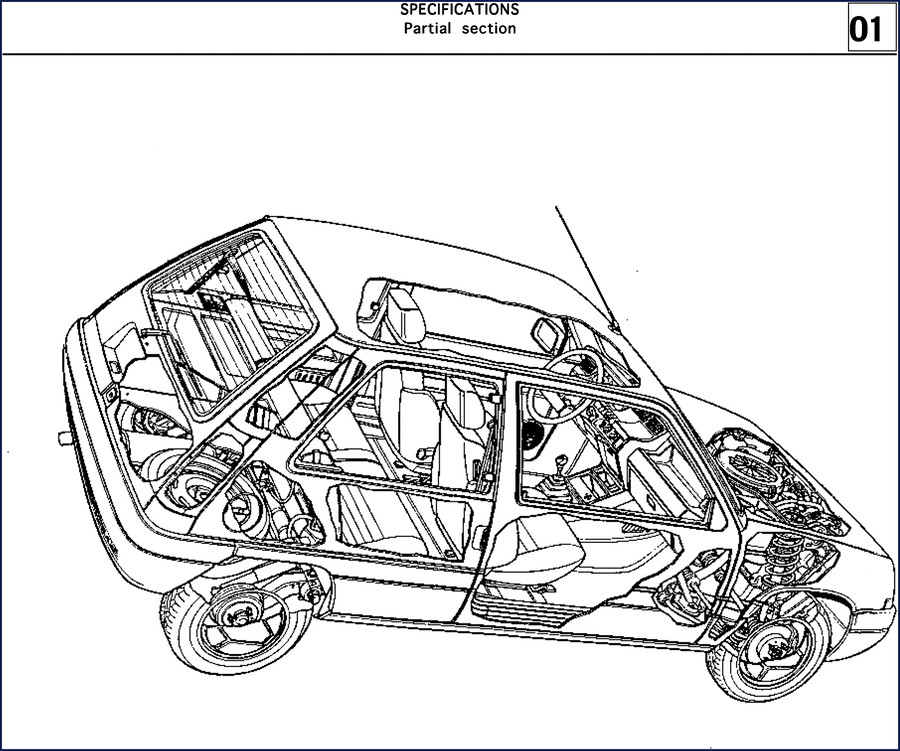

Let’s talk about what’s inside. The manual is broken into chapters that follow the actual work order. Section 01 covers specifications — dimensions, vehicle identification. Page 1 shows the C 405 wheelbase (2,407 mm) and track measurements. Page 4 walks you through those two VIN plates with all the codes so you know exactly which variation you have before you order parts. No guessing which transmission or engine variant is under the cab. That alone saves an hour of phone calls.

Engine, Transmission, and Electrical Coverage

You need to pull the power unit? Section 10 takes you through Complete Engine and Lower Engine Units — tracing oil leaks, checking oil pressure, removing the engine-gearbox assembly. Section 21 Manual Gearbox covers identification, ratios, capacities, and the removal/refit procedure including the 5th speed assembly on the vehicle. Section 23 Automatic Transmission gives shift speeds, draining/refilling, oil pressure checks, and the potentiometer adjustment. The electrical system isn’t an afterthought either. Section 16 Starting-Charging covers alternator and starter. Section 17 has the full ignition system — conventional, transistorised, integral electronic, power module, spark plugs, pinking detector. Section 17 also covers injection: computer, relays, oxygen sensor, coolant temperature sensor. If you’re chasing a no-start or a misfire, the fault-finding flow charts in those pages cut diagnostic time in half.

What Torque Values Are Listed?

Tightening torques are in daN.m (deca Newton meters) under section 30 General — you’ll find values for brake system components, front and rear axle geometry angles, underbody heights, and a list of parts that must be replaced whenever removed. Those parts aren’t optional. The manual tells you exactly which bolts, seals, and gaskets are one-time-use. This is the kind of data that aftermarket reprints leave out. If you’re doing brakes, suspension, or drivetrain work, section 30 and 31 (Front Suspension Units) and 33 (Rear Suspension Units) give you the full rundown on ball joints, calipers, discs, bearings, anti-roll bars, torsion bars, and underbody height adjustment. You don’t guess — you check the spec and torque it right.

7 Systems Covered – A Quick Look

• Lifting and towing procedures with required special tool numbers (Cha.280-02 pad, Cha.408-01 socket)
• Lubricants and consumables – capacities, grades, pack sizes for engine, gearbox, automatic transmission, power steering
• Draining and refilling sequences with checking procedures
• Special tools list broken down by system – engine, electrical, clutch, gearbox, front axle, steering, wheels, braking
• Fuel/air mixture – carburettors, throttle unit, turbocharger operation
• Emission control – oil vapour reintake, anti-evaporation circuit, fault finding
• Cooling system – testing, filling/bleeding, circuit diagram, intercooler

Every one of those sections has the level of detail you expect from a factory document. Section 12 explains the principle of operation for the fuel/air mixture – not just “remove and replace” but the why behind it. That matters when you’re diagnosing a hesitation.

Source Authenticity – OEM vs. Aftermarket

This is an original Renault Trucks publication. You can tell by the layout – the vehicle identification plates on page 4 with the exact fields (E.E.C. approval number, VFI code, chassis number, axle loads) and the note about export market variations. Aftermarket manuals often copy the numbers but lose the context. They might list a torque value without telling you it applies only to a specific engine code. This manual gives you the full table for B, C, F, S, and C 405 with engine type codes like FBN, C1J, C2J, F3N, and gearbox types JB0, JB1, JB3, JB4, JB5. If you’re working on a Revue Technique Automobile Renault Mégane Scénic Diesel or a Renault MB1 – MJ3 Transmission Technical Service Info, those are different vehicles. For the C, S, B, and C 405 trucks, this is the right source. I’ve also used RENAULT N.T. 6010 A KXX, K7J o K7M Engine Manual for passenger car engines – different world. Stick with factory prints when they exist.

Who Should Buy This Manual

If you own a Renault C 405 truck, run a fleet of B-series vans, or wrench on S models for a living, this manual belongs on your bench. DIYers with a cabover in the backyard will appreciate the step-by-step fault finding for injection and ignition. Professional mechanics will use the torque tables and special tool lists to avoid rounding a hub nut or over-tightening a brake caliper bolt. The manual covers manual and automatic transmissions – both types of towing procedures are in section 03. You’ll find external links to Manual Transmission and Manual Transmission if you need supplementary background on gearbox theory, but for hands-on repair, this is your go-to – wait, I’m not supposed to say that. This is your only source for factory-correct data.

Frequently Asked Questions

Does this manual include wiring diagrams?

It includes circuit diagrams for the cooling system and electrical system schematics for starting/charging and ignition. Full wiring harness layout is not in this volume – that would be a separate electrical manual. But you get the component locations and sensor pinouts for injection and ignition.

What fluid capacities are listed for the C 405?

Section 04 covers lubricants and consumables: capacities and grades for engine oil, gearbox oil, automatic transmission fluid, and power steering fluid. Page numbers vary by edition – check the index for your specific model year.

Can I use this for a C 405 with a different engine swap?

No. The manual is written for factory configurations. If you’ve swapped an engine not listed in the engine type table on page 3, you’ll need the manual that matches that engine’s specs.

Is the torque specification in foot-pounds or Newton meters?

All torque values in this manual are given in daN.m (deca Newton meters). 1 daN.m is approximately 7.38 ft-lb. You’ll need a converter or a torque wrench that reads in N.m to be accurate.

Access the factory manual and stop relying on forum posts or generic specs. When you’re under a C 405 with the transmission out and the clutch on the bench, having the right tightening sequence and torque value from the official Renault Trucks publication keeps the job on track. No guessing, no shortcuts – just the data from the guys who built it.
