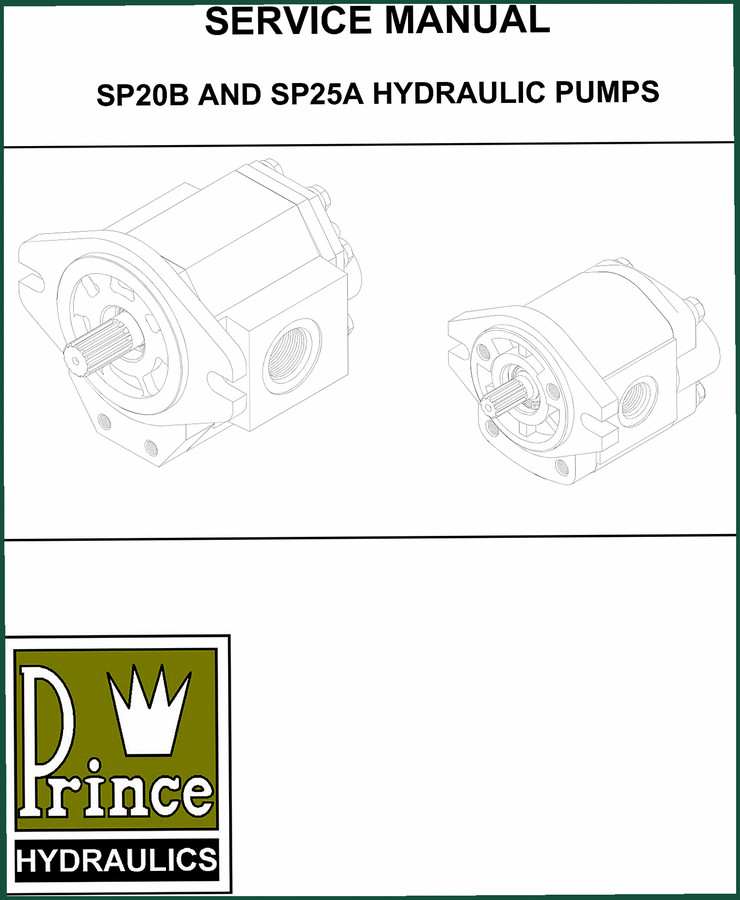

Prince Hydraulics SP20B, SP25A Service Manual

If you’re tearing into a Prince Hydraulics SP20B or SP25A pump without the factory print, you’re gambling with someone’s safety and your own bench time. I’ve seen guys bolt a rotation-change pump in backward and then wonder why the system deadheads. That’s a $500 mistake plus a trip to the ER if a hose lets go. This Prince Hydraulics SP20B, SP25A Service Manual runs 30 pages of OEM data from Prince themselves—not a photocopy from a guy on eBay. It’s the same document I keep in my toolbox for the SP20B belt-drive conversions and the SP25A high-pressure applications. If you’re a DIYer who’s ever had a hydraulic pump start screeching after a seal replacement, you already know why you need this.

Why the OEM Service Manual Matters for These Pumps

Aftermarket reprints of hydraulic manuals are a joke. They blur the model-code charts, skip the safety warnings, and guess at torque values. This original has Prince’s own table on page 4 for SP20B model codes and page 5 for SP25 model codes. You get the exact displacement options (08 through 11 cc/rev), port location options (side, rear, both), and shaft seal types. Without those codes, you can order the wrong rebuild kit and waste a Saturday. The manual also spells out that SP20B pumps do NOT have wear plates—a detail that’ll save you from chasing a nonexistent part. That kind of specificity comes from the factory, not from a third-party converter who never held a wrench.

Disassembly and Reassembly: Where Most People Screw Up

Section B (page 6) lays out disassembly in the order Prince wants it done. You pull the rear cover first, then the idler gear and drive gear, keeping shims in sequence. Section D (page 7) covers reassembly with attention to shaft seal depth and gear orientation. The manual warns you about the inlet-side cavity and how the O-rings seat—skip that and you’ll have a leak before the pump sees oil. I’ve had a guy bring me a pump he rebuilt off a YouTube video; he had the drive gear flipped 180 degrees. The manual’s exploded view on page 18 would have caught it. If you’re working on a SP25A that’s been converted to a different rotation, you’ll want section E (page 10) before you put the housing back together.

Rotation Change: A Step Most Techs Forget

Section E covers the rotation-change procedure with ten pages of text and illustrations. Torque values for the bolts on the port end are critical—the manual lists them in inch-pounds, and aftermarket sources often convert them wrong. Page 12 shows the rotation-change illustrations with the drive gear and idler gear positions for clockwise and counterclockwise rotation. If you reverse the rotation without swapping the thrust plates, the pump will lose prime and cavitate. The SP20B belt-drive instructions in section I (page 27) also reference a specific pulley alignment that you won’t find in any generic hydraulic guide. This isn’t the place to wing it.

Testing and Troubleshooting: Why a Gauge Matters

Section F (page 16) gives the bench-test procedure: run the pump at rated speed, check case drain flow, and verify pressure with a gauge. The manual says “Always use a gauge when adjusting a relief valve” right in the safety section—that’s not a suggestion, it’s a rule. Section G (page 17) lists common issues: noise, low flow, overheating. Each fix references the exact part from the exploded views. A lot of home mechanics skip testing because they think “it’ll run fine.” I’ve seen a pump with a scored gear face run for two hours before the shaft seal blew. The troubleshooting chart would have told you to measure the clearance before firing it up. Pair this manual with the White Outdoor LT-5 – 700 Series Rider Service Manual if you’re doing a full power-unit rebuild, and don’t forget the Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D for the electrical side of a tractor conversion.

Source Validity: OEM Print vs Aftermarket Reprint

The copy we sell is a direct scan of the original Prince Hydraulics service manual—no watermarks, no missing pages, no third-party editorializing. The safety precautions on page 2 are Prince’s own language, not some lawyer’s rewrite. You get the same “Make sure all pressure has been relieved” warning and the same warning about hydraulic fluid penetrating skin. Aftermarket manuals often omit the rotation-change illustrations to save space. This one has them all. If you need a comparison, look at the HUSKIE Hydraulic Hammers Service Manual—same factory-quality layout. For background on hydraulic system fundamentals, check the Manual Transmission page on Wikipedia for gear-train theory, and another Manual Transmission video on YouTube for practical gear-mesh tips.

Frequently Asked Questions

Does this manual cover both the SP20B and SP25A?

Yes. The manual includes separate model-code sections and specific instructions for each pump.

Are torque specs listed for the reassembly?

Yes. Section D lists torque values in inch-pounds for all fasteners, including the port-end bolts and the cover screws. The values come from Prince’s engineering standards, not from a Chinese parts catalog. If you don’t torque the rear cover bolts to spec, you’ll get a side-load that wears the bushings. The manual also notes that SP20B pumps use different flange bolts than SP25A pumps, so verify your part number before wrenching.

Can I use this manual for the SP25B?

No. The SP25B has different port dimensions and a different shaft seal geometry. This manual covers only the SP20B and SP25A models.

I see there’s a rotation-change section. Why is that important?

If you install a pump with the wrong rotation, the gears won’t pick up oil and the pump will fail immediately. The rotation-change procedure shows you how to swap the gears and re-index the port cover to match the direction. Skip that and you’ll burn up the seal in minutes.

Factory data doesn’t leave room for guesswork. You want the same specs that Prince Hydraulics gave their dealers. That’s what you get here—30 pages of OEM test data, torque tables, and safety warnings. Access the Factory Manual and keep it in your shop for the next SP20B or SP25A that hits your bench.
