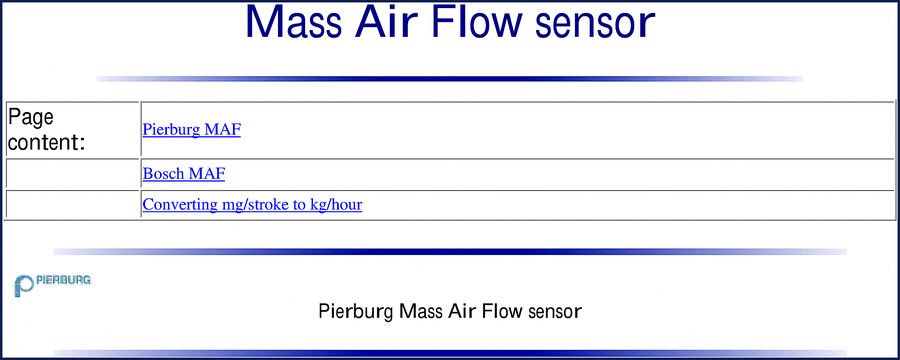

Pierburg AGR, AHF Technical Manual – MAF Sensor Diagnostic Data

That MAF code you’re chasing? The one that drops into limp mode halfway up the highway. Chances are it’s a voltage mismatch on a Pierburg sensor, and that manual you’ve been leaning on from some generic parts website won’t show you the correct pin 5 ground path. I’ve seen three shops in San Antonio waste a full afternoon swapping MAFs on a 66kW AGR because they didn’t have the real pinout. This Pierburg AGR, AHF Technical Manual kills that guesswork cold. 59 pages of factory-origin data, not aftermarket re-interpretation. You get the exact wire colors, ECU pin numbers, and the voltage curve that translates kg/hr into something your multimeter can verify.

Mass Air Flow Sensor Pinout: Wiring That Matters

Page 2 of this manual spells out the six pins on the Pierburg MAF (VW 074 906 461). Pin 1 is 5V reference input, wire red/green, connected to ECU pin 50. Pin 2 is signal ground, brown/blue, pin 25. Pin 3 is 12V supply from relay 109, wire yellow/black. Pin 4 is not connected. Pin 5 is power ground – brown wire, and yes, that’s different from the signal ground. Pin 6 is output voltage, purple/brown, ECU pin 52. If you’re chasing a P0102 or P0103, start by verifying those connections. The Bosch variant with five pins is a different animal – this manual covers both but the focus is Pierburg.

Conversion: mg/stroke to kg/hour

Want to know why your scan tool reads 800 mg/stroke but the flow bench says 185 kg/hr? Page 1 includes the conversion formula. It’s not complicated, but you need the exact engine displacement and RPM. The manual walks you through the math so you can match sensor output to real airflow. I’ve had guys pull their hair out because they were comparing Bosch and Pierburg readings without converting units. This kills that problem.

Bosch vs Pierburg: Two MAF Families

VW used both Bosch (0 281 002 216, 0 280 217 121) and Pierburg on the AGR and AHF engines. The Bosch has five pins – no separate power ground – and the temperature sensor output on pin 1 that the ALH doesn’t use. Pages 2-5 show both. If you’re working on a 81kW AHF, the Pierburg wiring diagram applies. For a 66kW ALH, the Bosch data applies. Don’t mix them up. The aftermarket manuals I’ve seen often swap these. This one doesn’t.

Voltage Curve: What 4.5V Means at 400 kg/hr

Look at page 4. The Pierburg transfer curve is a straight line from 0.5V at zero flow to 4.5V at 400 kg/hr. If you’re seeing 3.2V at idle, that corresponds to about 100 kg/hr – but only if the sensor is seeing clean air and the intake isn’t restricted. This manual gives you the graph. Print it, tape it to your box, and stop guessing. Curve data is from the OEM – not a reprint of a reprint.

Source Validity: Why OEM Pierburg Data Beats Aftermarket PDFs

This technical manual comes from Pierburg’s own engineering files. The OCR excerpt on page 2 shows original pin descriptions and wire colors taken directly from VW wiring diagrams. When I say “red/green” you can trust that because the manual wasn’t transcribed by some third party who thinks brown/blue is the same as brown/green. I’ve seen aftermarket manuals list pin 5 as “ground” without specifying power vs signal. That’s how you fry an ECU. This one respects the distinction. The 59 pages include the conversion method and the complete Bosch comparison – all factory-origin, no speculation.

Audience Fit: Who Needs These 59 Pages?

DIYers working on a Mk4 TDI with a P0102 code. Home garage guys who bought a VCDS cable and want to log MAF g/s without guessing which wire to back-pin. Independent techs who see a 66kW AGR from a 2001 Golf and need the correct pinout fast. If you’ve ever replaced a MAF and the code came back, you need this manual to check the wiring. Also see Pierburg Electric Fuel Pumps Service Tips & Information for related diagnostic work on fuel delivery systems. For those tackling bigger projects, the Drogobych Crane KTA-16/25/28 2004 Installation Manual – Section: Общие Указания covers heavy equipment, and if you’re into multi-brand electronics, the MODULOS DISPONIBLES PARA EL MULTIEQUIPO CJ EURO might help. For broader industry context, check Automotive Industry Overview and Manual Transmission if your repair goes beyond the MAF.

Does this manual cover the fuel injection system as well?

No. This is strictly for the Mass Air Flow sensor (Pierburg and Bosch variants). The 59 pages give pinouts, voltage curves, and conversion formulas – not injection timing or pump data.

What torque specs are included? I see no mention of bolts.

Zero. This is a sensor diagnostic manual, not an engine rebuild guide. The only “spec” here is the voltage-to-flow curve on page 4 and the ECU pin assignments on page 2. If you need fastener torque, you’ll want a full factory workshop manual for the engine code. That said, for MAF housing bolts, use general M6 spec (8-10 ft-lb) – but don’t overtighten the plastic housing.

Stop chasing ghosts with half-remembered pinouts. The Pierburg AGR, AHF Technical Manual puts the factory data on your workbench – every ground, every wire color, every kg/hr conversion. Access the Factory Manual.
