Piaggio Liberty 50 4T Technical Manual – OEM Factory Specs for Your Scooter

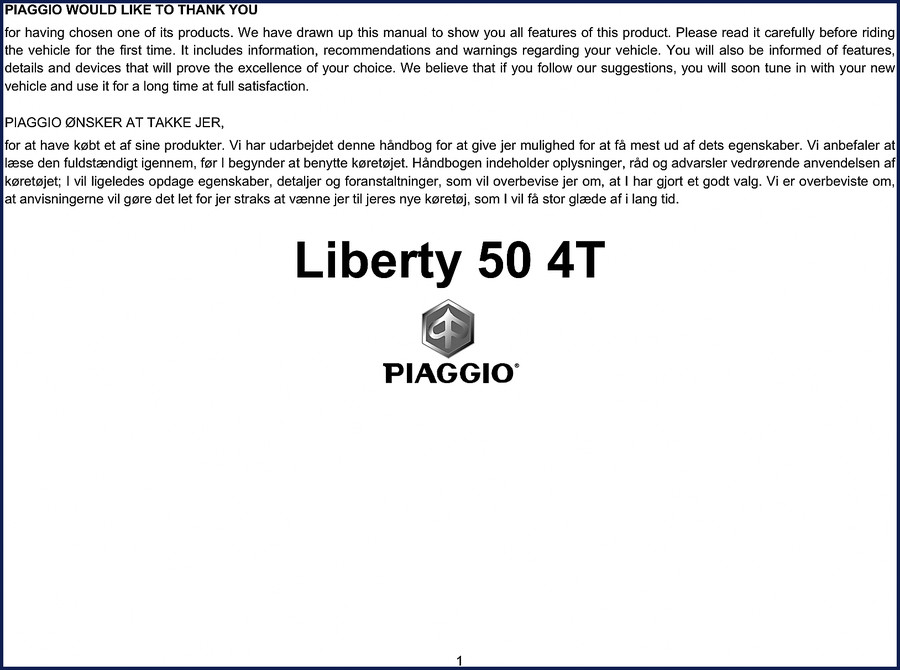

If you’re working on a Piaggio Liberty 50 4T and need the factory data, the Piaggio Liberty 50 4T Technical Manual is the only document you should trust. It has 74 pages of OEM specs – torque values, timing marks, wiring colors, and the exact procedures the factory trains on. No approximations, no missing pages, no speculation.

This manual walks you through the entire Liberty 50 4T’s 50cc 4-stroke engine, the CVT transmission, and the braking system. Page 1 is the introduction from Piaggio, but the real content starts with the engine removal and installation procedures. You get the valve clearance adjustments, the crankshaft bearings specs, and the belt replacement sequence. Every procedure lists the tools you need – a list you won’t find in any third-party summary.

Every critical fastener on this scooter has a specific torque. The factory manual gives you those numbers – not a range, not a “tighten until it feels solid”. I’ve had to install helicoils too many times because someone trusted an aftermarket manual that said “12-15 Nm” when the real spec is 14 Nm. That 1 Nm margin can cause a leak or a failure. The manual also specifies thread-locker type and replacement intervals for single-use nuts. Manual Transmission knowledge is useful for general theory, but for this CVT you need the Piaggio data.

Don’t guess. Use the spec.

The electrical system on the Liberty 50 4T is compact but complex. The manual includes the full wiring diagram with color codes and connector pinouts. If you’re diagnosing a no-start, a dead battery, or a lighting issue, you need the factory schematic. Aftermarket diagrams often skip the tip-over sensor or swap wire colors. This manual gives you the original layout and the diagnostic flow charts. You can trace a circuit from the battery to the component without second-guessing.

Home garage mechanics who want to service their own scooter without breaking something expensive will find this manual’s safety warnings and step sequences crucial. Beginners who haven’t touched a CVT before – the manual leads you through each step with warning notes about spring tension and variator nut removal. Experienced techs who need a quick reference for the specific 50cc 4T engine appreciate the indexed sections. Even if you’ve worked on a dozen Piaggio models, each scooter has its own quirks. This manual covers the Liberty 50 4T exactly.

This is not a reprint or a scan of a third-party book. It’s the original OEM file from Piaggio. That means every torque value, every warning, every diagram has been checked by the engineers who designed the bike. Aftermarket manuals copy the factory data and introduce errors – I’ve seen a left turn signal wire labeled as the right in a competitor’s manual. That costs you hours of chasing a phantom short. Stick with the source.

Frequently Asked Questions

Is this the same manual that dealers use?

Yes, it’s the Piaggio factory technical manual. No modifications.

Does it cover the 4-stroke engine in detail?

The manual covers the entire Liberty 50 4T, including the 4-stroke engine, its cooling system, fuel system, and lubrication. It walks you through disassembly, inspection, and reassembly with torque values for every critical fastener. You’ll find the cylinder head torque sequence with the correct loosening order to prevent warpage, the valve clearance adjustment with feeler gauge specs, and the piston ring gap limits and installation orientation. The CVT transmission section includes belt width measurement, variator service, and clutch removal steps. All torque values are given in both Nm and ft-lb so you can work with your own tools.

Can I use this for the 2-stroke version?

No, this manual is specifically for the Liberty 50 4T (4-stroke) model only.

Are the wiring diagrams in color?

The diagrams are monochrome but clearly labeled with wire colors and connector pinouts. They are easy to read with a printed copy.

If you want to work on your Liberty 50 4T the right way, use the data that the factory trusts. Piaggio Workshop Reference Technical Notes and Electrical – Section: Chapter 9 T and Piaggio Vespa 90 Operation and Maintenance Manual are available if you need other Piaggio references. For the Beverly 250 owners, PIAGGIO Beverly 250 USA Workshop Manual is also here. Manual Transmission general theory has its place, but for this scooter, the OEM manual is the only source I’d trust on my bench. Access the Factory Manual now from AutoRepairManuals.
