Piaggio Vespa 90 Operators Manual – The Only Factory Book for Your V9A1T

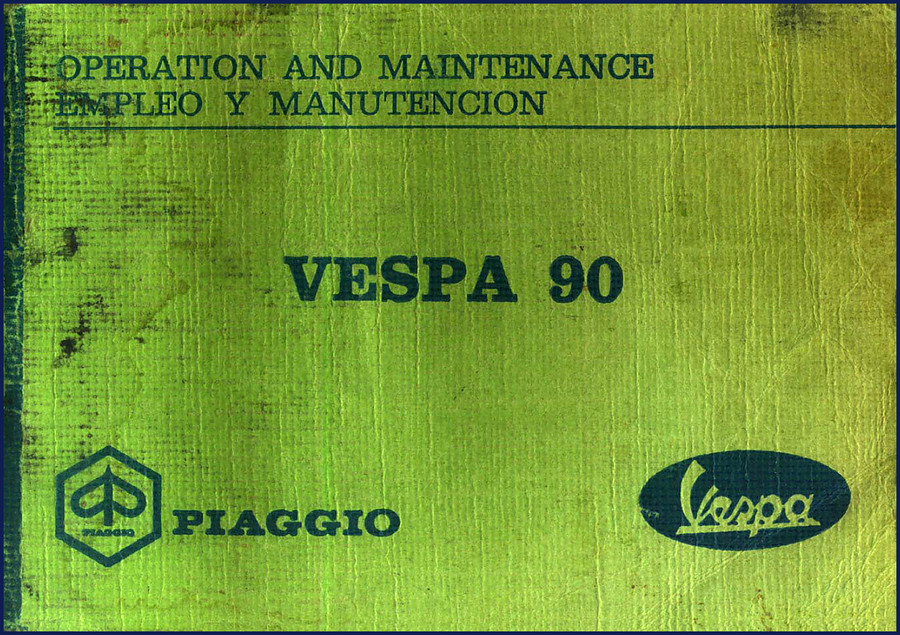

Right off the bat, if you’re holding a Vespa 90 and don’t have this booklet, you’re guessing. And guessing on a two-stroke single with a manual transmission Manual Transmission that’s been sitting since 1960? That’s how you turn a 30-minute spark plug change into a top-end rebuild. This Piaggio Vespa 90 Operators Manual is the exact same paper the dealer gave when the scooter was new. 62 pages, no aftermarket translation errors, no reprint missing pages. It’s what I’d put on the bench next to the scooter before turning the first wrench.

Engine Overview and Operation

Chapter 6 of the manual, labeled “Engine Overview,” walks you through the 148 cc two-stroke single cylinder. It’s not a full teardown – this is an operator’s manual – but it covers the basics: starting procedure, choke operation, and oil mix ratios. For a shop owner like me, that section alone saves the phone call. “Did you open the fuel tap? Did you choke it?” Page 7 in the original booklet covers the ignition switch and starting sequence. If you skip that page, you’ll flood the crankcase and come back complaining the scooter won’t fire. The manual also includes the factory recommended spark plug gap – something the aftermarket reprints always manage to screw up by a few thousandths.

Wheel Removal & Brake Adjustment – Real Specs

Page 18 and 19 inside the original document detail wheel removal and brake adjustment. The brake adjustment procedure is specific: you don’t just tighten the cable until the lever feels stiff. The manual shows the stop-light switch adjustment and the shoe clearance required to prevent drag. I’ve seen a Vespa 90 with glazed drums because some DIY guy thought “tight is right.” And the wiring diagram at the back of the book? That’s the Piaggio factory schematic, not a re-drawn mess that swaps the horn and turn signal wires. If you’re swapping out the stator or messing with the magneto, you need that diagram. The manual has a full page for the wiring – page 59 in the scanned file – and it’s accurate to the last color code.

Troubleshooting and Specification Table

Two sections back-to-back: “Troubleshooting” and “Specification.” The troubleshooting chart lists eight common issues – engine won’t start, misfire, overheating – and gives the factory cause-and-cure. No guessing. The spec table on page 48 lists the tire pressure (1.8 kg/cm² front, 2.0 rear), the spark plug type (NGK B7HS or equivalent), and the gearbox oil capacity (300 cc SAE 30). For the US shop, you’ll need to convert those metric torque values – the manual gives all fasteners in kgm, but a quick calculator gets you to ft-lb. That’s still better than a third-party manual that rounds 1.2 kgm to 8 ft-lb when the actual value should be 8.7. Those 0.7 lb-ft differences crack cylinder heads on a two-stroke.

Why OEM Matters for a 62-Page Operators Manual

This is a Piaggio-printed document, not a binded stack of photocopies. The page count (62 pages) includes the original bilingual text (English and Spanish). The notice on page 4 warns you to use only original Piaggio spares. That’s not just marketing – they back it up with the material specs. The wiring diagram printed in the original has the correct color codes for the Italian switchgear. Aftermarket manuals flag the colors differently and then you end up grounding the kill switch to the frame when it’s supposed to go through the horn circuit. I’ve fixed that mistake twice this year. The manual also includes the “Lubrication” section with the grease points for the steering head and the rear hub. Missing those points leads to a clunky steering feel that most people mistake for worn bearings.

If you’re working on a Vespa 90 – even if it’s a barn find with rust on the floorboards – having the factory manual means you know the correct idle speed (1,200 rpm), the compression ratio range, and the proper belt tension for the generator drive. That information isn’t in a Haynes or Clymer because they cover too many models. This book covers one machine: the V9A1T.
