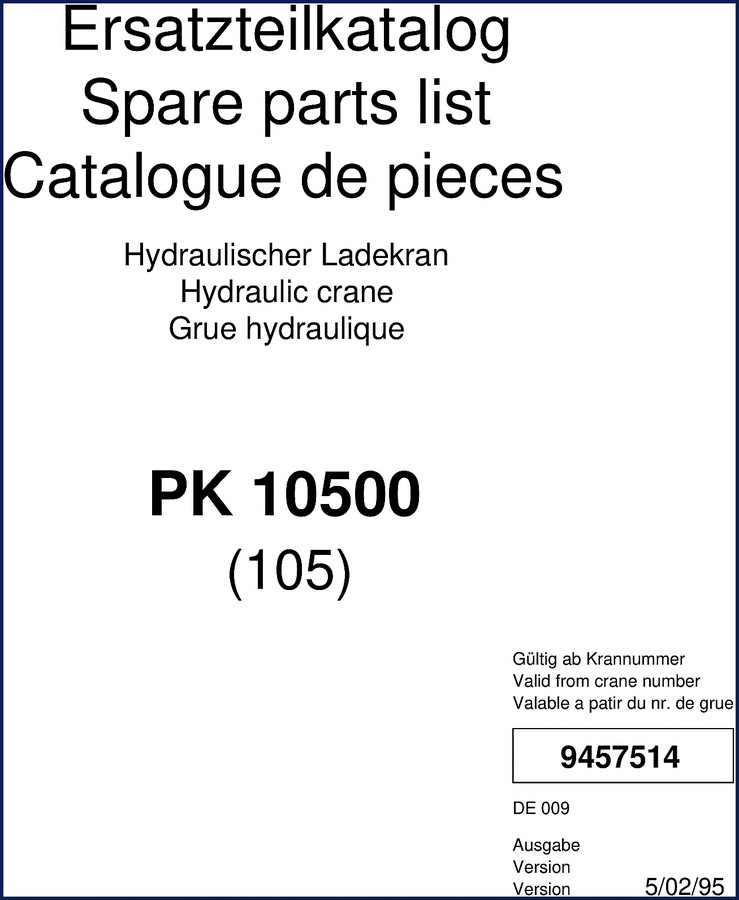

Palfinger PK 10500 1995 Parts Catalog

If you’re ordering parts for a Palfinger PK 10500 crane and you’ve ever received the wrong seal or cylinder kit because you guessed the revision, you know the pain. I’ve seen guys bolt on a stabilizer ram from a later serial number and snap the mounting bracket in a week. This Palfinger PK 10500 1995 Parts Catalog is the factory document that kills that guessing. 167 pages of OEM part numbers, exploded diagrams, and revision callouts that match the crane from serial number 9457514 onward. No aftermarket reinterpretation – these are the same pages the Palfinger dealer uses to pull your order.

Every section in this manual is organized by the crane’s structural groups. You get the base assembly (pk10500-010.0100), the slewing system (pk10500-020.0100), the extension box (pk10500-030.0100), and all the piping runs that connect them. When you flip to section 010.0100 you see the exact weldment, the bolts, the bushings – down to the lock washer. Need the charge pressure? Not in a parts catalog – but you do get the O-ring table at the end. That table alone saves you from buying a whole seal kit when only one gland ring is shot. For background on why factory documentation matters in the Automotive Industry Overview, check that link – but this Palfinger book is purpose-built for crane parts, not passenger cars.

010.0100 – Base Assembly Exploded View

Section pk10500-010.0100 gives you the base plate, the kingpost, and the mounting hardware. Each part has a callout number that matches the Palfinger parts system. You’ll see separate entries for the weldment itself and the hardware kit. If you’re swapping a base after a rollover, you need the exact revision – Palfinger changed the bolt pattern in mid-1995. This catalog shows the revision mark right in the drawing. No measuring, no cross-referencing. One page tells you what fits.

Does the Catalog Cover the Slewing System and Piping?

Yes. Sections pk10500-020.0100 through pk10500-020.0900 break down the entire slewing ring, the hydraulic motor, and all the piping runs (Verrohrung) that carry oil to the outriggers and boom. Piping sections are split by function – support piping, cylinder piping, and the return lines. Each pipe is drawn with its bend radius and fitting part number. If you’ve ever tried to order a pre-bent tube from a generic catalog, you know how often they ship the wrong angle. This manual gives you the OEM number. Order it once.

3 Critical Sections: Overload Protection, Control Valves, and O-Ring Table

The overload protection system lives in sections pk10500-070.0100 through pk10500-070.1200. You’ll find the relief valve cartridges, the solenoid coils, and the OSK(M) variants. Control valve sections (pk10500-060.0100) break out each spool and spring. And the O-ring table (O-ringtabelle) at the end of the catalog lists every O-ring used in the whole crane – by diameter and material. That table is worth the price alone when you have a drip from a fitting and you don’t want to disassemble twice. For related models, see the Palfinger PK 7501 PK 8501 Spare Parts Catalog 2005 and the PALFINGER PK 19000 Parts Book 1996/09. If you run the bigger cranes, the PALFINGER PK 18002 EH Spare Parts Catalogue follows the same index structure.

Valid from Crane Number 9457514 – Why Serial Verification Matters

This catalog is valid from crane serial number 9457514. That means it covers PK 10500 cranes built from early 1995 through the revision changes that year. If your crane is older, you need the previous catalog – Palfinger changed the base weldment and some cylinder port sizes. Check your serial plate before ordering. The manual has a clear note on the edition page: “Gültig ab Krannummer 9457514.” If you ignore that, you’ll get the wrong stabilizer ram. I’ve seen it happen.

Use the O-Ring Table to Stop Hydraulic Leaks

Hydraulic leaks on a PK 10500 usually come from the gland seals on the outrigger cylinders or the swivel joints. The O-ring table at the end of this catalog lists every seal – mitre rings, O-rings, backup washers – by Palfinger part number and dimensions in millimeters. Convert to inches if you need, but I’d order the factory part. Aftermarket O-rings often have the wrong durometer and leak within a week. Automotive Industry Overview gives some general background on hydraulic systems, but this table is specific to the PK 10500.

That 167 pages might seem like a lot for a parts book, but every page is a drawing with a callout list. You won’t waste time flipping through generic index pages. The manuals on this site are original OEM print – not scans of a copy. When you access it, you get the PDF exactly as it left the Palfinger printer in 1995.

FAQ

Does this parts catalog include torque specs for bolts?

No. This is a parts catalog, not a service manual. It lists part numbers, quantities, and O-ring dimensions. For torque values you need the separate service manual for the PK 10500.

What if my PK 10500 has a serial number below 9457514?

Then this catalog does not apply. Earlier cranes used different weldments and cylinder port sizes. You need the pre-1995 edition. Check your serial plate on the base – if it starts with 9457 or higher, you’re good. If not, contact us for the earlier catalog. Ordering parts from this edition for an older crane will result in incorrect seals and mounting hardware. I’ve had to chase down mismatched kingpost bearings because a guy used the wrong catalog. Save yourself the headache – verify the serial number before you buy.

Stop guessing part numbers and ordering twice. Access the Factory Manual – the genuine Palfinger PK 10500 1995 Parts Catalog – and get the right parts the first time.
