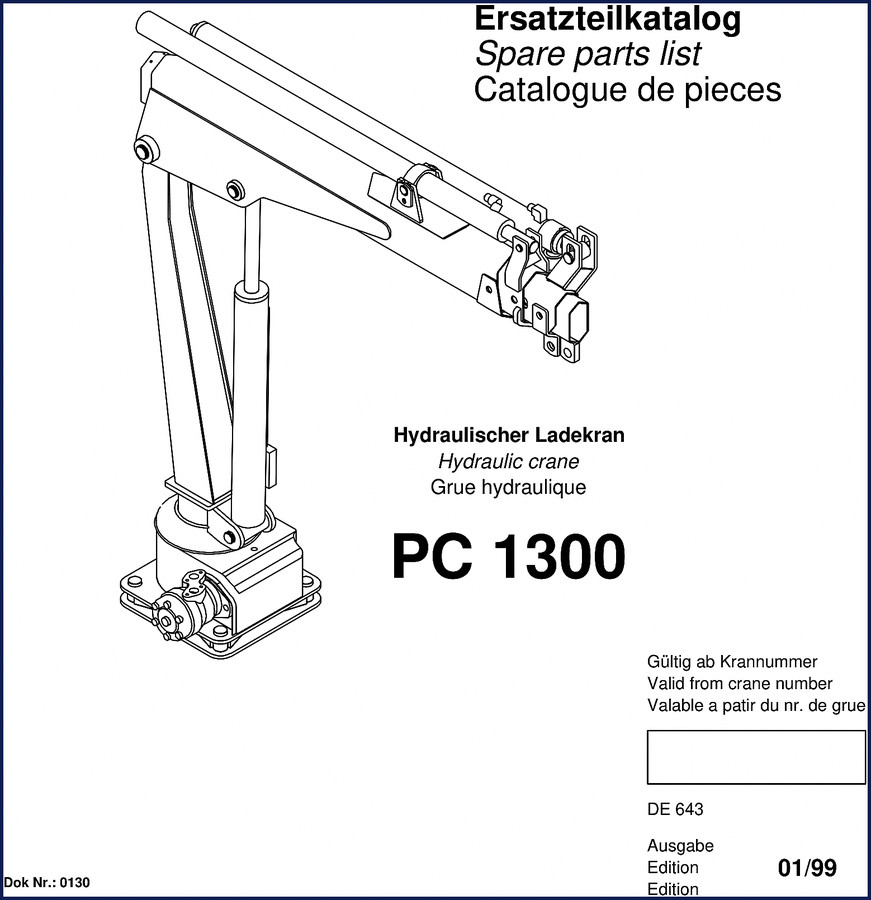

Palfinger PC 1300 1999 Parts Catalog – What You Need Before You Order a Single Bolt

Palfinger PC 1300 1999 Parts Catalog – if you’re running a hydraulic crane in a shop or on a job site, you already know the headache of ordering the wrong part. A seal that’s 2mm off, a control valve spool that doesn’t match the serial number – that’s a crane down for two days while you wait for the right shipment. This factory catalog kills that guesswork cold.

I’ve been turning wrenches since before some of you were born, and I’ll tell you straight: aftermarket parts lists are garbage. They re-draw schematics from memory, swap part numbers, and leave out the updates that come with crane serial number breaks. This is the real deal – printed in 1999 by Palfinger, covering the PC 1300 from crane number DE 643 onward. 106 pages of nothing but factory-approved part numbers, exploded views, and the O-ring table you need to keep leaks out of your hydraulic system.

Steuerventil (Control Valve) Exploded Views

Section 0130-030 covers the directional control valve in its various configurations: standard, MH (manual hydraulic), EH (electric-hydraulic), and OS/OM overload-protected versions. Page 2 in the TOC shows the full breakdown – every spring, poppet, and spool is drawn with a callout number that matches the Palfinger parts system. If your crane has a sluggish function or a stuck spool, you cross-check the serial number against the crane type, then order exactly the cartridge or seal kit listed. No second-guessing.

Hydraulic Cylinder Assembly: Hubzylinder and Schubzylinder

The lifting cylinder (Hubzylinder) and boom extension cylinders (Schubzylinder) are detailed in sections 0130-070 and 0130-080. Each cylinder is exploded into rod, piston, seal pack, and port fittings. The O-ring table at the back of the catalog lists every seal by inside diameter, cross-section, and material. Replace a blown wiper seal on the main lift cylinder – the part number is right there, not buried in a generic cross-reference. That’s the difference between a one-hour fix and a three-hour search.

Overload Protection (Überlastsicherung) Parts

Sections 0130-050 and 0130-090 break down the overload protection valves: OS, OM, and OSM variants. These are safety-critical components. If you slap in a non-OEM relief valve because the price was lower, you’re setting yourself up for a boom collapse or a hydraulic spike that takes out the main pump. This catalog gives you the correct cracking pressure and the exact replacement cartridge. Don’t treat overload protection like a commodity part – get the factory-spec piece.

O-Ring Table: Critical for Every Seal Job

Buried at the end is a full O-ring table – inside diameters, cross-sectional dimensions, and durometer ratings. When you’re replacing a seal on a swivel joint or a cylinder cap, you look up the groove dimensions and pick the right o-ring. No more using “close enough” from a universal kit. Close enough gets you a drip in three months. Use the table, order the correct metric o-ring, and the connection stays dry for years.

Why OEM Parts Catalog Beats Aftermarket

Aftermarket parts catalogs renumber Palfinger parts into their own system, sometimes dropping superseded parts or mixing up left-hand and right-hand threads. This catalog is Palfinger’s own 1999 release – every number is the original P/N. The same numbers the dealer uses. Same exploded layout the factory used to build the crane. If you want to keep a PC 1300 running past 20 years, you work off the original source. That’s what this is.

Does the catalog include the entire crane, or just major assemblies?

It covers all main assemblies: base, slew drive, oil tank, control valves, cylinders, main boom, boom extensions, and overload protection. Each section has an exploded diagram with callouts and a parts list.

How do I use the part numbers for ordering?

Cross-reference the section number (e.g., 0130-020.0400) with your crane’s serial number suffix listed on page 1. Look up the callout number in the parts list below the diagram. That exact number – not a suggestion – is what you give your Palfinger dealer or parts supplier. If the number is superseded, the dealer can trace it from the original. Aftermarket catalogs often skip the supersession chain; this one doesn’t.

You’ve got a Palfinger PC 1300 sitting in the yard with a leaking cylinder or a sticking valve. You need the right part number the first time, not after three wrong orders. Access the Factory Manual now, get the exploded view for your crane, and order the exact seal, valve, or cylinder component from your dealer. Your downtime stops the moment you open page 2.
