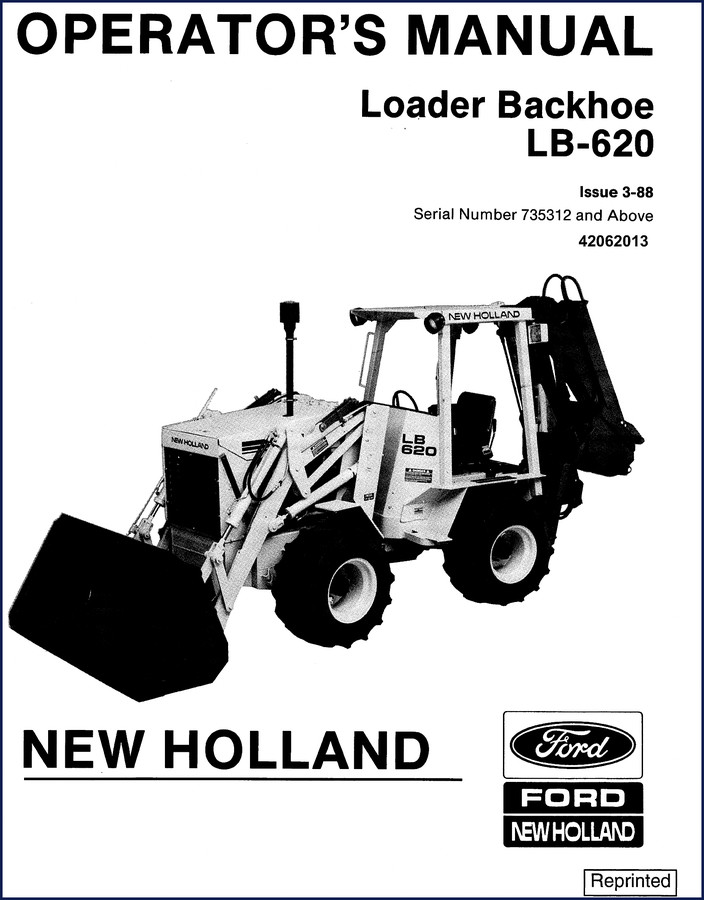

New Holland LB-620 1988 Operators Manual

You bought a used LB-620 and the glovebox is empty. Or the paper manual you had is torn to shreds. I’ve been turning wrenches since before this machine was built, and I can tell you: trying to guess the prestart sequence, the hydraulic pressures, or the service intervals on a loader backhoe that old is a sure way to blow a seal or hurt yourself. This New Holland LB-620 1988 Operators Manual is the exact same 68-page book that came with the machine when it left the factory. It’s not a reprint from some third-party that scanned a copy of a copy – it’s the OEM file, page for page, from the serial number break (735312 and above) onward. If you want to run this iron without burning a valve or dropping a boom on someone’s foot, this is where you start.

Safety Section: What the Manual Covers Before You Turn the Key

Page 2 carries a warning you don’t see in aftermarket stuff: “DO NOT REMOVE THE CAB – Operating without the cab may cause you to be crushed or killed.” That’s factory blunt. The Safety chapter lists the decal locations, the lockout procedures, and the proper way to approach the machine on a slope. You won’t find that in a generic equipment guide. It also tells you how to use the manual holder inside the cab – a detail most home-garage guys ignore because they shove the book under a seat cushion. Keep it in the holder. You’ll thank me when you need to check the hourly service chart at the job site.

Prestarting Checklist – Skip This and You’ll Pay

Before you even fire the diesel, the manual walks you through fluid levels, belt condition, and the safety interlocks. The Prestarting Checklist chapter is two pages of steps that should become muscle memory. I’ve seen guys drop a loader bucket because they didn’t engage the parking brake – the manual calls it out on page 12. That kind of detail keeps your weekend project from turning into a hospital visit.

3 Systems That the Controls and Instrument Panel Chapter Details

The Controls and Instrument Panel section maps every lever, pedal, and gauge. It tells you what the glow-plug light means, how to read the hour meter, and which switch kills the engine in an emergency. If you’ve ever tried to figure out a joystick pattern on a loader without a reference, you know how easy it is to pop a hydraulic line. This chapter ends the guesswork. It even covers the backhoe control pattern – split into loader and backhoe sections so you don’t confuse the two.

Loader Field Operations and Backhoe Operation: The Two Work Chapters

Separate chapters for loader and backhoe. Loader Field Operations covers bucket positioning, lift-arm float, and how to handle heavy loads without tipping. Backhoe Operation digs into stabilizer setup, digging depths, and swing control. Each one includes a table of recommended bucket sizes and capacities. If you’re renting this machine or have never run a backhoe, these chapters are worth the price alone. The manual doesn’t assume you know how to feather the controls – it tells you.

Hourly Service and Lubrication Chart – Keep It Running

The Hourly Service and Lubrication Chart is a table of what to grease, check, and change at 10, 50, 100, and 500 hours. It specifies the grease type (NLGI #2 multipurpose) and the intervals for changing engine oil and hydraulic fluid. This chart alone saves you from over-lubricating (which seals hate) or under-lubricating (which wears pins). The manual also includes a Service and Lubrication Points diagram showing every zerk fitting – you won’t miss a single one.

Periodic Service Adjustments and Storing the Loader

There’s a chapter on Periodic Service Adjustments that covers belt tension, brake adjustment, and tire air pressure. For storage, the Storing The Loader chapter tells you how to preserve seals and batteries if you park it for the winter. I’ve seen guys lose a whole hydraulic system because they didn’t add stabilizer before a freeze – this manual warns you on page 44.

Troubleshooting Section – When Something Breaks

The Troubleshooting chapter is organized by symptom: engine won’t start, weak hydraulics, slow travel, backhoe drift. It lists probable causes and the page reference to the adjustment or repair procedure. No guessing – you go straight to the fix. For a 1988 machine with no on-board diagnostics, this is your only brain. The Optional Equipment section also covers the auxiliary hydraulic kit and the 4-in-1 bucket if your machine is equipped.

Specifications – Torque and Fluid Capacities

The final Specification chapter holds the numbers you need: engine horsepower, fuel tank capacity (11 gallons), hydraulic system pressure, and tire sizes. It does not list every bolt torque (that’s in the service manual), but it gives the critical ones for mounting the backhoe and loader. If you’re pulling a wheel, check the lug nut torque spec in this section – it’s different from a pickup truck.

Who Should Buy This Manual

Home garage guys who bought an LB-620 at auction and want to operate it safely. DIY farmers who run the machine for a few hours each week and need to know when to grease and what fluids to use. Beginners who have never sat in a loader backhoe – the manual explains every step from starting to stopping. If you plan to tear into the engine or transmission, you’ll want the factory service manual too, but for daily operation and maintenance, this Operators Manual is your baseline.

Why OEM Documentation Beats Aftermarket Copies

Every aftermarket manual I’ve seen for this machine is missing the Delivery Report form, the serial number registration page, and the specific safety decal diagrams. Worse, they often renumber pages or crop the illustrations. The file you get here is the original 1988 New Holland scan – 68 pages, fully indexed, with the same table of contents and bookmarks that the factory printed. The OCR text is searchable, so you can jump to “hourly service” without flipping. That matters when you’re covered in grease and need an answer right now.
