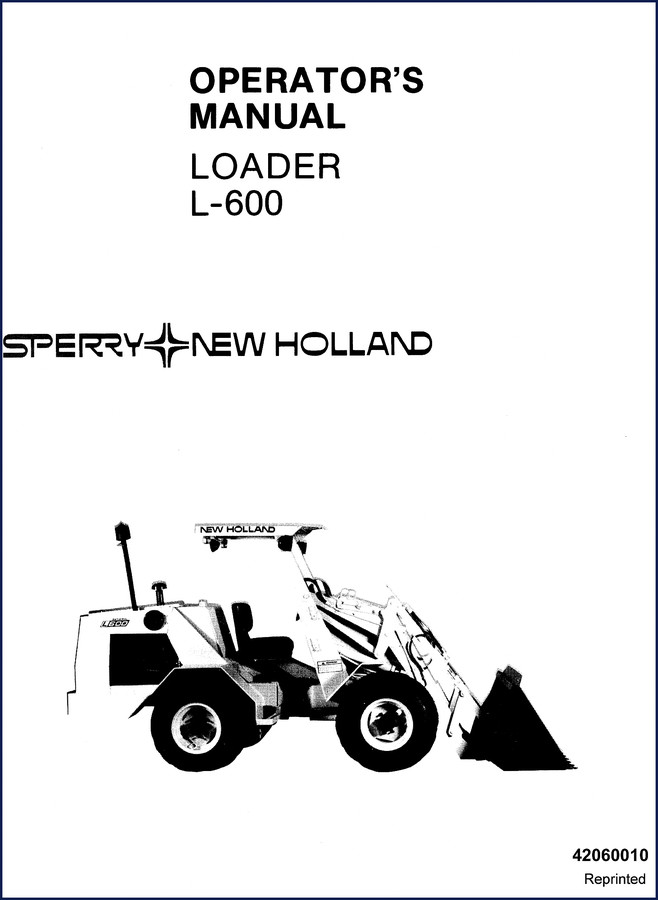

Sperry New Holland L-600 1986 Operators Manual – Factory Specs for the L-600 Articulated Loader

If you own an L-600 articulated loader, you need Sperry New Holland L-600 1986 Operators Manual. Not a generic printout from a third-party. Not a photocopy that left half the safety warnings on the cutting room floor. This is the factory document – 52 pages, printed by Sperry New Holland in 1986. It tells you how to start it, run it, stop it, and keep it from killing you. I’ve seen guys skip the prestart checklist and lose a day to a blown hose. Don’t be that guy.

Safety Chapter: Personal Protection and Machine Shielding

Safety chapter gets its own place in this manual. The first chapter is Safety – they put it there for a reason. Page 2 of the manual has the symbol you need to recognize – it’s used wherever personal safety is involved. The manual specifically warns that pictures may show shielding open or removed for illustration, but you better close them before running. That’s not a suggestion. That’s the factory telling you how not to get hurt. I’ve read manuals that gloss over safety – this one doesn’t. It covers what to do, what not to do, and why. If you’re running an L-600, you study this chapter before you touch a lever.

Controls and Instrument Panel: What Each Lever Does

Controls and Instrument Panel chapter is where you learn what every switch, pedal, and gauge does. The L-600 has a specific layout. The manual walks through each control. You don’t want to guess which way the bucket tilt lever goes while you’re up against a pile. This chapter covers starting procedures, stopping procedures, and operation. I’ve watched new operators fumble – the manual solves that. It’s written in plain English, no fluff. Each function is explained with a clear description. If you’ve never run a loader, you can learn from this. If you have, it’s a refresher on the factory spec layout.

Prestarting Checklist: A 60-Second Habit

Prestarting checklist section is short, but it’s the difference between a smooth day and a tow bill. The manual lists what to check before you climb in. Engine oil level, coolant level, hydraulic fluid, tire pressure, and more. I’ve seen guys skip this and cost themselves a hydraulic pump because the fluid was low. The checklist is in the Prestarting Checklist chapter. Do it. Every time. The manual also covers Starting The Loader and Stopping The Loader – two separate sections. They’re there because the machine has specific shutdown steps. If you stop it wrong, you can get a hydraulic lock or something worse. Follow the order.

Hourly Service and Lubrication Chart: Grease Fittings and Fluid Checks

Hourly Service and Lubrication Chart is your maintenance schedule. This isn’t a suggestion – it’s a list of what needs lube every 10 hours, 50 hours, or longer. The L-600 has multiple grease fittings. The manual shows the locations in the Service and Lubrication Points chapter. You need to know which grease to use, which oil, and how often. I’ve seen loaders ruined because someone used the wrong grease. The Specifications chapter at the back lists capacities and fluids. Keep that manual on the loader, not in the office. You need it when you’re standing next to the machine with a grease gun.

Troubleshooting: Factory Diagnostics for Common Issues

When something goes wrong, the Troubleshooting and Service Problem Evaluation section gives you a starting point. It’s not a full service manual – this is an operators manual – but it covers the common issues you can solve without tearing the machine apart. Engine won’t start? Hydraulics sluggish? It tells you what to check and in what order. I’ve used these troubleshooting charts on other equipment. They work because they come from the factory test data. The manual also includes a section on Storing The Loader if you’re putting it away for the season. Proper storage prevents corrosion and frozen seals. If you suspect transmission trouble, the troubleshooting chart may point to a simple fix. For in-depth gearbox knowledge, you can consult general Manual Transmission references, but start here.

Specifications: Engine RPM, Hydraulic Pressure, Tires

Specifications chapter has the numbers you need. Engine RPM settings, hydraulic system pressure, tire sizes, and weight capacities. If you’re replacing a tire or setting hydraulic relief, you reference this section. It’s in the latter part of the 52-page manual. Don’t trust aftermarket data. I’ve seen wrong tire pressure specs cause blowouts. This is the OEM spec from Sperry New Holland. Use it.

OEM vs Aftermarket: Why This Manual Is the Real Thing

I’ve been in this business 28 years. Aftermarket manuals are a gamble. They reprint the text but often lose the formatting, the warnings get cut, and the torque specs can be mismatched. This manual is a direct scan of the original 1986 publication. You get the same font, the same diagrams, the same warnings. The caution symbols are there. The warranty information is on page 3. The Delivery Report at the back is included – that’s the form your dealer filled out when you bought the loader new. That’s authenticity. If you want to keep your L-600 running right, you get the factory document. I also recommend the related parts catalogs: Sperry New Holland OM 352 Parts Catalog, Sperry New Holland OM 352 Engine Parts Catalog, and Sperry New Holland OM 401 Engine Parts Catalog if you need to order parts. For transmission details, you can reference general Manual Transmission information, but always cross-check with this manual’s specs.

Frequently Asked Questions

Does this manual cover the L-600’s hydraulic system?

Yes, it includes operation and service points for hydraulics.

What is the difference between an OEM manual and a reprint?

A reprint is often a photocopy that loses quality – margins get cut, text gets blurry, and sometimes pages are missing. This manual is a direct digital reproduction of the original 1986 Sperry New Holland publication. You get the full 52 pages, every diagram, every caution. The factory specifications are intact. I’ve seen reprints where the torque values were illegible. That’s not something you gamble with. This is the real document.

Access the Factory Manual for your Sperry New Holland L-600. It’s 52 pages of the original 1986 operators manual, ready to print or view on your tablet. Keep it in the cab. Your loader will thank you.
