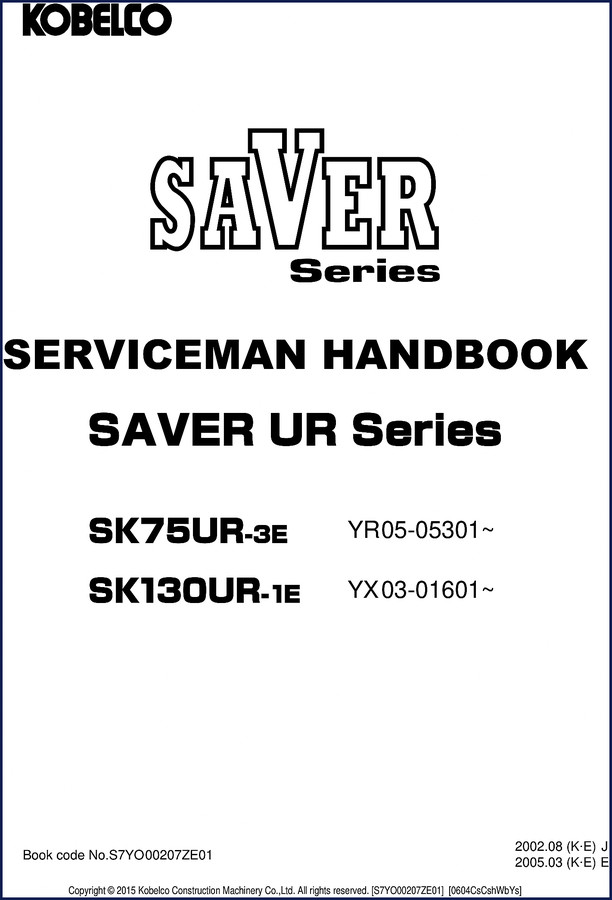

New Holland Kobelco SK75UR-3E, SK130UR-1E 2015 Service Manual

I’m Mike Callahan. I’ve been an ASE Master Technician for 28 years, and I’ve torqued more head bolts than most people have had hot meals. When I see a shop manual that came from a third-party outfit, I get suspicious. Aftermarket documentation might get you close, but close doesn’t cut it when you’re setting the hydraulic relief pressure or checking the engine injection timing. That’s why I only trust factory prints. The New Holland Kobelco SK75UR-3E, SK130UR-1E 2015 Service Manual is the real deal. 134 pages of Kobelco’s own specifications, diagrams, and test procedures. No reprints, no guesswork. If you’re working on a SAVER UR series machine, you need this on your bench.

New Holland Kobelco SK75UR-3E and SK130UR-1E Service Manual: Factory Specs Only

This manual covers the SK75UR-3E (YR05-05301~) and the SK130UR-1E (YX03-01601~). It’s the same binder that Kobelco sends to its own dealer techs. The specifications are not approximations. The torque values are the ones that prevent leaks and broken fasteners. The hydraulic pressure standards come from the test bench at the factory. I’ve seen guys try to use generic specs from a forum and end up with a main pump that whines like a sick dog. That doesn’t happen when you have the OEM document in front of you.

Stop guessing. Start using the real specs. Your time is too valuable to waste on approximations.

Engine Specifications – Page 3

Section 3-1 is where you find the engine specifications. You get displacement, horsepower at rated rpm, injection timing, valve clearance, all of it. If you’re rebuilding the engine or just doing a tune-up, you need these numbers. The manual lists the exact test conditions for measuring engine speed. Page 46 covers engine speed measurement procedures. Don’t skip that – I’ve seen techs set the idle speed to the wrong spec because they didn’t read the test conditions. This manual tells you the exact conditions under which the measurement is taken. Follow it. Unlike a car with a Manual Transmission, these excavators rely on a closed-loop hydraulic system, and the manual covers the pump control curve in detail.

Does This Manual Cover the Mechatro System?

Yes, and it’s detailed. Section 7 covers the Cab, Canopy Interference Prevention System – that’s the Mechatro system. You get the outline, switch functions, angle sensor installation and construction (page 29), and the procedure to release the cab interference prevention function (page 36). If you’re working on a machine that has this system and it’s acting up, you’ll need the indicator adjustment procedure on page 37. The electric parts inspection is on page 38. This is not a generic overview – it’s step-by-step with wiring diagrams and component locations.

3 Sections Every Technician Should Check

Number one: Section 6 – Specified Oil, Grease and Filter Element. The lubricant list and filter element list start on page 17. Use the wrong hydraulic oil and you’ll ruin seals. Use the wrong filter – well, you get the idea. Number two: Section 8 – Pressure and Performance Standard. Page 40 gives you the standard for hydraulic oil pressure measurement. If the pressures are off, you’ll have slow cycles or no digging power. Number three: Section 14 – Maintenance Standard. Page 93 starts with clearance between pin and bushing. These machines wear, and you need to know the limits before the joint fails. For older Kobelco models, check the New Holland Kobelco SK100 SK120 SK200 SK60 1990 Service Manual – 242 Pages.

Use the Factory Lubricant List

I can’t stress this enough. The wrong grease or oil will cost you a day of downtime. Section 6-1 on page 17 lists the exact OEM part numbers and specs for lubricants. The filter elements list on page 18 tells you the correct filters for the hydraulic system, engine, and pilot circuit. Aftermarket oil might save you a dollar but cost you a pump. Stick with what the manual says. The travel motor uses a planetary gearset, which is more complex than a simple Manual Transmission. Follow the lubrication schedule exactly.

Why the OEM Print Matters More Than a Reprint

Third-party reprints often have missing pages, faded diagrams, or specs that got changed years ago. This manual is the original factory print from 2015. The electric circuit diagram on page 64 is exact. The hydraulic circuit diagram on page 60 shows every line and fitting. If you’re trying to trace a leak or an electrical fault, you need the original. I’ve thrown away more aftermarket wiring diagrams than I care to count because the colors were wrong. This one is correct. For related manuals, see the New Holland Kobelco SK100 SK120 SK200LCV 1996 Service Manual and the New Holland Kobelco SK25SR SK30SR SK35SR SK15SR SK20SR 2011 Service Manual. Both are genuine OEM prints.

Frequently Asked Questions

What years does this manual cover?

The manual is published in 2015 and applies to machines from that era.

Does it include torque specs for the engine?

Yes, section 3-1 has engine specifications including torque values for cylinder head bolts and main bearings.

How is the hydraulic pressure test performed?

Section 8-1 on page 40 outlines the standard for hydraulic oil pressure measurement. First, warm the hydraulic oil to operating temperature. Then install pressure gauges at the specified test ports – the diagram shows exact locations. Run the engine at high idle and check the main relief pressure. The performance standard table on page 55 lists the acceptable ranges. If the pressure is below spec, you need to adjust the main relief valve or check for internal leakage. The manual also covers pump flow test procedures starting on page 47. This is not a job you want to guess at – incorrect pressure can blow seals or damage the pump. Follow the steps exactly.

Can I use this manual for the SK100 models?

No, this manual is specifically for the SK75UR-3E and SK130UR-1E. For the SK100 family, see the related manual listed above.

Look, I’ve been doing this job long enough to know that the difference between a repair that holds and one that comes back is often the manual you’re holding. If you’re serious about doing this job right – whether it’s a simple engine service or a full hydraulic overhaul – get the factory documentation. Don’t rely on a scanned copy from 2002 that’s been passed around. This is the 2015 version, clean and complete. Access the Factory Manual by clicking the link above. Your machine will thank you.
