New Holland Kobelco SK60V, SK100V, SK120V, SK120LCV, SK200V 2004 Service Manual

You want to rebuild a KOBELCO hydraulic excavator from the 2004 model year? I have seen guys access some third-party PDF that tells them to “adjust the pump pressure until it feels right.” That is how you blow a seal. The New Holland Kobelco SK60V, SK100V, SK120V, SK120LCV, SK200V 2004 Service Manual is the factory handbook. 170 pages of actual specs, not guesswork. It came off the press in Japan, printed by KOBELCO. Every torque value, every pressure setting, every pin bushing clearance is OEM data. Not a reprint from a copy shop. Not a scanned version with missing pages. This is the real deal.

Performance Standards and P-Q Curves — What the Manual Gives You

The MEASURE & ADJUSTING section starts on page 34 and walks you through the exact procedures for measuring hydraulic pressure with a gauge. Not a vague “connect gauge here” — it tells you which port, at what engine speed, and the target value. The PERFORMANCE STANDARD chapter lists the spec numbers for swing, travel, and bucket forces. Then the P-Q CURVE. If you have ever tried to set a pump without the factory curve, you know the machine either bogs down or runs away. Page 51 has the full curve for the hydraulic oil pump control. That is not something the aftermarket includes.

Hydraulic System and Electric Circuit Diagrams

The HYDRAULIC SYSTEM DIAGRAM begins on page 68. You can trace every line from the main pump through the control valves to the cylinders. The ELECTRIC CIRCUIT DIAGRAM starts on page 82. If you have a malfunction with the multi-purpose display or the mechatro controller, you need the specific wiring colors and connector pin-outs. This manual gives you the cluster gauge connector details on page 56 and the service diagnosis items on page 57. I have used those pages to diagnose a failed sensor in under twenty minutes. Without them, you are swapping parts.

Mechatro Adjustment and Service Diagnosis: When the Electronics Fight Back

Modern excavators use a mechatro controller to manage the engine and hydraulic pump output. This manual devotes a full section — MECHATRO ADJUSTMENT starting page 64 — to the step-by-step calibration. It includes the SENSOR-PSV SPEC table so you know the exact resistance and voltage at each sensor. The SERVICE DIAGNOSIS section (page 55) shows you how to read the multi-purpose display codes. There is also a failure history function that logs past faults. That is the difference between a professional fix and a forty-minute search on forums. If you need to adjust the mechatro potentiometer or reset the controller after a repair, this manual is your only reliable source.

Does This Manual Cover the SK60V Through SK200V?

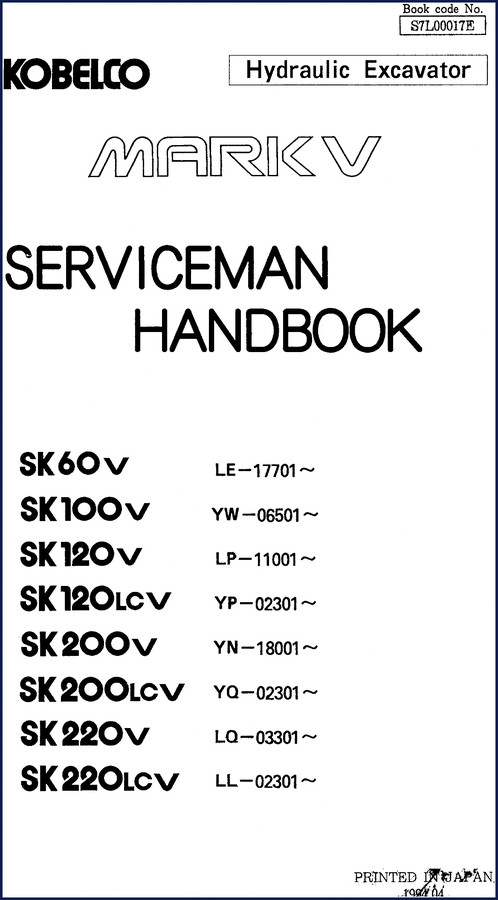

Yes. The manual lists the serial number breakpoints for each model: SK60V LE-17701~, SK100V YW-06501~, SK120V LP-11001~, SK120LCV YP-02301~, SK200V YN-18001~. If your machine falls within those ranges, the specs apply. The SK200LCV and SK220V/LCV are also included in the same handbook. That is five base models with both standard and long-track versions. One book, 170 pages, covers all of them. You do not need to buy separate manuals for each size.

Torque Specs and Fluid Capacities — Real Data

Look at the end of the manual: section 18-1 covers TIGHTENING TORQUES FOR NUTS AND BOLTS. That is page [DATA NEEDED]. Not a generic chart from the internet — these are the factory values for every fastener on the machine, from the cylinder gland nuts to the track adjustment bolts. The CAPACITY TABLE (page 23) tells you exactly how much hydraulic oil, engine oil, and coolant each model takes. And the LIST OF FILTER AND ELEMENT (same page) gives you the OEM part numbers. You order the right filter, not the one the counter guy guesses at.

What You Need to Know Before Using This Manual

You need a hydraulic pressure gauge with a 6000 psi range, a digital multimeter for the sensor checks, and a set of wrenches that fit Japanese metric fasteners. The manual assumes you know how to safely support an excavator and relieve hydraulic pressure. If you are new to hydraulics, get someone with experience to walk you through the first pressure measurement. Do not skip the safety warnings. If you are looking for a generic manual transmission guide, this is not it. For KOBELCO MARK V excavator repair, this is it. Related manuals: KOBELCO MARK V Hydraulic Excavator Serviceman Handbook and New Holland Kobelco SK100 SK120 SK200LCV 1996 Service Manual and New Holland Kobelco SK100 SK120 SK200 SK60 1990 Service Manual – 242 Pages. If you need a manual transmission repair guide, check Manual Transmission or Manual Transmission — but for this excavator, stick with the factory data.

Does this manual apply to the SK60V, SK100V, SK120V, SK120LCV, and SK200V?

Yes. Covers all five models with the specified serial number ranges.

What is the most common mistake when using this manual?

People skip the MEASURE & ADJUSTING procedure and go straight to the troubleshooting section. They replace a pump because they think it is bad, when the problem is a misadjusted relief valve or a clogged screen. The manual tells you to measure pressures first, in order, with the engine at normal operating temperature. If you do not follow that sequence, you will waste a day. I have watched a tech change a main pump on an SK120V only to find the pilot pressure was off by 50 psi because a previous mechanic had twisted the adjusting screw. The manual has the correct setting — use it.

You have the machine on the lift. You have the gauges. Now get the data that keeps you from pulling your hair out. Access the Factory Manual and get back to work.
