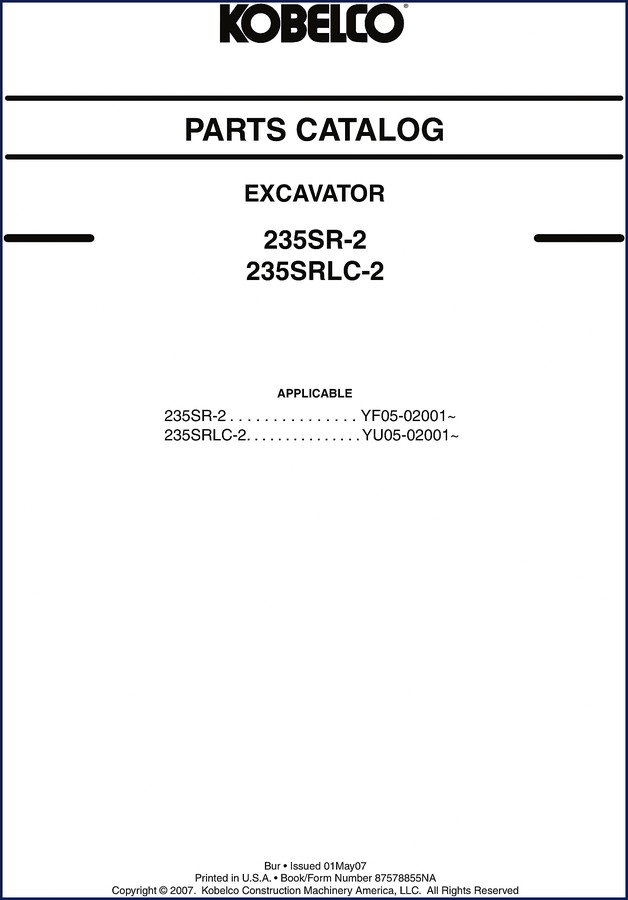

New Holland Kobelco 235SR-2, 235SRLC-2 2007 Parts Catalog

If you’ve ever ordered a fuel filter for a 235SR-2 and got one that didn’t fit because the parts guy used a cross-reference from a third-party database, you know the pain. That’s why you need the factory New Holland Kobelco 235SR-2, 235SRLC-2 2007 Parts Catalog. This is the same document the dealer uses to look up every nut, bolt, and hose. 537 pages of exploded views and genuine part numbers. No aftermarket guesswork.

New Holland Kobelco 235SR-2, 235SRLC-2 2007 Parts Catalog: What’s Inside

This catalog is organized by machine system, not by random alphabetical lists. You get sections like FRAME ASSEMBLY, UPPER, COUNTERWEIGHT INSTAL, ENGINE ASSY, RADIATOR INSTAL, and so on. Each section lists the exact part number, description, and quantity needed. The TOC starts at 01-001 for filters and goes through every system down to the GRIP ASSY and RADIO INSTALLATION. If you need a seal for the swivel joint, you turn to the HYDRAULIC – SWIVEL section. No flipping through generic cross-reference books.

Engine Assy and Installation: Page 02-004

The ENGINE ASSY section (page 02-004) lists the complete engine assembly part number YF02P00003F1, plus every component attached to it. If you are rebuilding the engine or replacing a gasket, you need the correct part numbers for the fuel injection system, water pump, and alternator. The ENGINE INSTAL section on page 02-005 shows the mounting hardware, brackets, and isolators. Cross-referencing aftermarket parts here will get you a misaligned fan or stripped bolts. Stick to the OEM numbers.

Fuel System: Lines and Tank Install

The FUEL LINES section (page 02-011) covers every tube and clamp from the tank to the injection pump. The TANK INSTAL, FUEL shows the fuel tank assembly and its straps, sending unit, and vent lines. If you are replacing a fuel line, you need the correct part number for the pre-formed hose – bending generic hose can cause kinks and air leaks. This catalog gives you the factory-formed hose part numbers. Also the FILTER, FUEL – FILTER, OIL section at the start (01-001) lists the correct fuel filter and oil filter part numbers. Do not trust aftermarket filter cross-references – thread pitch and bypass valve specs vary.

Hydraulics: From Pump to Swing Motor

The hydraulics section breaks down the pump-to-control-valve lines, upper swing motor lines, and return lines. Each hose assembly is listed with its part number and length. If you are replacing a leaking hose on the swing motor, you need the exact part number from the HYDRAULICS – UPPER / SWING MOTOR TO CYLINDER section. The catalog also includes the HYDRAULIC – SWIVEL section with the rotary joint parts. Using a generic hose might save a few bucks, but it could fail under the system’s working pressure. Stick with the factory listed parts.

Why OEM Documentation Beats Aftermarket

Third-party parts catalogs frequently rearrange part numbers or omit revisions. This 2007 New Holland Kobelco catalog is the original factory print – copyright Kobelco Construction Machinery America, LLC. It includes the revision history and applicable serial number breaks. For example, the upper frame assembly has two variants: YF52F00067F1 and YF52F00071F1. An aftermarket catalog might only list one. You need the correct frame assembly for your specific VIN. This manual gives you that. The importance of accurate documentation is well documented in the Automotive Industry Overview on Wikipedia.

Frequently Asked Questions

Does this manual cover both 235SR-2 and 235SRLC-2?

Yes, it covers both models with separate serial number breaks.

How do I find the correct part number for my machine?

Locate the serial number plate on your excavator. Then open the catalog and find the applicable serial number range listed in the header of each section. For example, the upper frame section lists two different part numbers for different serial ranges. Match your machine’s serial number to the correct group. If you cannot find the range, consult the revision history on page 2 which lists the first edition date and applicable machines. Using the wrong part number can lead to fitment issues and machine downtime, so always verify with the factory data provided in this manual.
