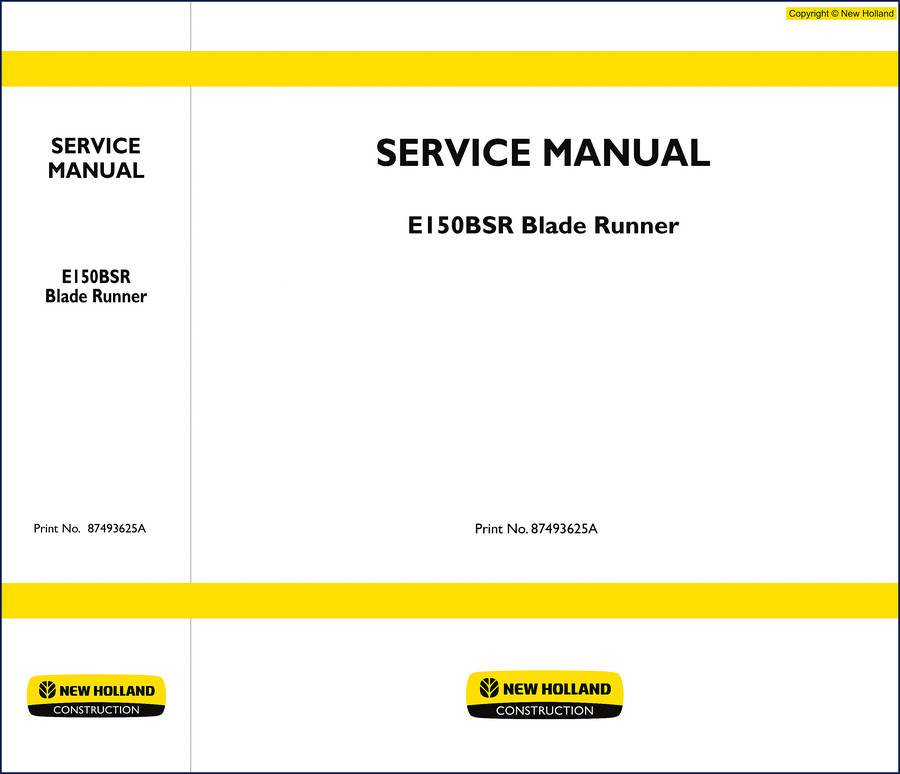

New Holland E150BSR 2008 Service Manual – Factory Specs for the Blade Runner

If you’re turning wrenches on a New Holland E150BSR Blade Runner, you already know that aftermarket PDFs skip half the steps. I’ve seen guys guess at hydraulic line torque and blow a swivel joint. That costs you a Saturday and a grand in parts. The Service Manual from 2008 – 1016 pages – gives you the exact specs CNH Italia printed for their own techs. This is the same book we used at the shop when these machines came in under warranty.

What the 51 Sections Cover

The manual breaks down into 51 numbered sections. You get the full run: Description (1), Technical Specifications (2), Working Attachment (3), Tools required (11), Standard Maintenance Times (12), Maintenance Standards and Inspection Procedures (13), Mechatro Control System (21), Hydraulic System (22), Electrical System (23), Main Components (24), Air Conditioner System (25), Working Attachment Removal and Installation (32), Upper Structure (33), Travel System (34), Troubleshooting by Error Codes (46), by Trouble (47), Trouble Diagnosis Mode (48), and Engine (51). That’s the entire machine from bucket teeth to the D04FR-KDP2TAAC Mitsubishi diesel.

Technical Specs You Can Trust

Section 2 gives you the real numbers. Operating weight: 16,300 kg (35,940 lb). Bucket capacity: 0.38 m³ (0.5 cu.yd). Engine: Mitsubishi D04FR-KDP2TAAC, water-cooled, four-cylinder direct injection with intercooler turbocharger. Power output: 69.2 kW at 2000 rpm. Overall length: 8,620 mm (28 ft 3 in). Crawler track gauge: 2,490 mm (8 ft 2 in). These are not generic numbers – they’re the factory measurements from New Holland Construction.

Hydraulic System and Mechatro Control

Section 22 (Hydraulic System) walks you through the pump, main control valve, swing motor, travel motor, all the cylinders. Section 21 (Mechatro Control System) covers the electronic control that manages the hydraulics. If you get an error code on the display, Section 46 lists every code and the diagnostic tree. I’ve used that section to find a bad solenoid on the main control valve in under thirty minutes. No guesswork.

Who Needs This Manual

This is for the guy who owns an E150BSR or runs a fleet of hydraulic excavators. If you’re a DIY landowner clearing brush, you need this to keep the machine running instead of calling the dealer. If you’re a shop tech, you need it to bill hours correctly. The manual includes torque specs for the boom cylinder bolts, the travel motor mounting, even the bucket link pins. You won’t find those in the operator’s manual.

OEM Source – Not a Third-Party Reprint

This is the exact print number 87493625A, issued September 2008 by CNH Italia S.p.A. in Modena, Italy. It’s the same document referenced in the “To the Reader” note – intended for a skillful engineer. The copyright is New Holland. No aftermarket company scanned a greasy copy. Every page is clean, every torque value is in both imperial and metric. The conversion tables are right there in Section 1.

Frequently Asked Questions

Does this manual cover the Mitsubishi D04FR engine overhaul?

Yes. Section 51 covers the engine completely – disassembly, assembly, torque specs for head bolts, main bearings, and the injection pump timing.

Are wiring diagrams included?

Section 23 (Electrical System) contains full schematics with connector pinouts. You can trace a short in the cab harness without a meter if you read the notes carefully.

What about the dozer blade attachment?

The dozer specifications are in Section 2.7, and removal/installation of the working attachment is in Section 32. That includes the dozer cylinder and blade linkage.

Can I use this manual for an E150BSR with a different serial number?

This manual is for the E150BSR Blade Runner model with print number 87493625A. It covers all serial numbers within that production run. If your machine has a later update, check the CNH portal for service bulletins.

Related Manuals

• Sperry New Holland Model 31 33 36 Service Manual”>
• New Holland T7510-T7550 2013 Service Manual – Factory Specs”>
• New Holland T5.95, T5.105, T5.115 2013 Service Manual – 2173 Pages”>

If you need general transmission knowledge for other equipment, check the Manual Transmission article for fundamentals, but for the E150BSR stick with the factory book.

Access the Factory Manual now and get the 1016 pages of real New Holland service data. No reprints. No aftermarket shortcuts. Just the OEM specs that keep your blade runner digging.
