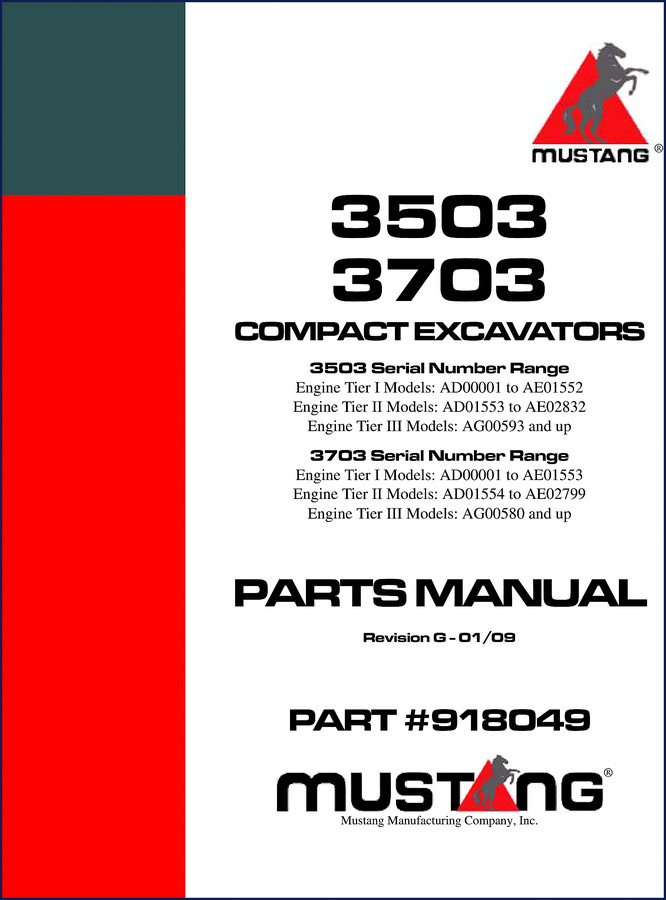

Mustang 3503, 3703 2009 Parts Catalog – Factory OEM Specs for Compact Excavators

You’ve been burned by aftermarket parts catalogs before. Wrong part numbers, missing torque values, serial number ranges that don’t match your machine. That’s exactly why I keep a copy of the Mustang 3503, 3703 2009 Parts Catalog on the workbench. This isn’t some photocopied knockoff – it’s the genuine factory PDF from Mustang Manufacturing Company, Inc., Revision G, part #918049, printed January 2009. 212 pages of verified OEM data. No guessing. No calling the dealer three times. You get the exact part number, the correct fastener grade, and the torque spec that keeps the bolt from stripping out in the field. Period.

Torque Specifications: A Section You Cannot Skip

Every technician knows that fastener torque is where the job lives or dies. This catalog dedicates a full section to TORQUE SPECIFICATIONS – standard attaching hardware values for both inch and metric fasteners. The introduction spells it out: metric torque values are listed in Newton-meters and converted to foot-pounds by multiplying by 0.738. Cap screws and bolts are Grade 8.8, cadmium or zinc plated unless noted otherwise. On page 1 of the manual, you get the serial number ranges for each tier – critical for ordering the right bolt or seal. Skip this page and you might order a part that doesn’t fit your machine’s production run. That order costs you time and money. Don’t skip it.

Alphabetical Index: Finding Parts Faster

Two indexes live in this catalog: an Alphabetical Index (A–N and O–V) and a Numerical Index. Need a hydraulic cylinder seal kit? Flip to the alphabetical section under “Cylinder” and you’ll find the reference number. The numerical index then points you to the exact exploded-view illustration and part list. This is how you avoid spending an hour flipping pages. I’ve used this method on a 3703 track motor rebuild – saved me forty minutes of hunting. The manual also uses circled reference numbers for complete assemblies and small bag icons for seal kits. That visual shorthand is worth the price alone.

Does This Manual Cover Your Serial Number Range?

The manual covers the 3503 and 3703 compact excavators across three engine tiers. For the 3503: Tier I serial AD00001–AE01552, Tier II AD01553–AE02832, Tier III AG00593 and up. For the 3703: Tier I AD00001–AE01553, Tier II AD01554–AE02799, Tier III AG00580 and up. Serial number breaks are shown with clear notation – “SN 999 and before”, “SN 1000–2000”, and exceptions like “including 997 except 1996”. If your machine is outside these ranges, you need a different revision. But for any unit within these numbers, this is the only parts catalog you should trust.

Mustang 3503, 3703 2009 Parts Catalog: What Makes It Different

Aftermarket catalogs often copy the part numbers but leave out the grade, coating, or quantity. This factory PDF includes the full description, the ref number, the assembly grouping, and the serial-number-specific applicability. The introduction even defines abbreviations – CB (carriage bolt), CS (cap screw), FHCS (flat head cap screw), and more. When you call your dealer, you give them the exact part number and description from this book. No interpretation. No “it should work”. That’s the difference between a repair that holds and a callback in two weeks.

3 Systems That Depend on Correct Part Numbers

Hydraulic system, final drive, and engine – three areas where one wrong part can cost a day of labor. This catalog breaks down each system with exploded views and part lists specific to the 3503 and 3703. For example, the hydraulic cylinder assemblies show seal kit icons, so you order the entire kit instead of hunting for individual o-rings. The torque specifications section gives you the tightening values for every grade 8.8 fastener. I’ve used this manual to source a pilot valve for a 3703 that had a mid-sequence serial number. The alphabetical index got me the correct part in under three minutes.

Audience Fit: Who Needs This Manual

If you’re a DIY owner running a Mustang 3503 or 3703 compact excavator, this catalog keeps you from buying the wrong hydraulic filter or bolt. If you run a shop with a fleet of these machines, every tech on the floor needs access to the torque specs and part numbers – especially when the machine is down and the customer is watching. Beginners: the alphabetical index and serial number notation might seem fussy, but once you use it twice, you’ll understand why factory documentation is the only way to avoid ordering a part that was superseded two revisions ago.

Source Validity: Original OEM vs. Aftermarket

Aftermarket parts catalogs on third-party sites often recompress the PDF, lose image clarity, or – worst case – transpose part numbers. This file is the exact factory PDF from Mustang Manufacturing Company, Inc., Revision G, 01/09. No alterations. The page count matches the original print run: 212 pages. The torque conversion table, the abbreviation list, the serial number breaks – all intact. If you’ve ever tried to match an aftermarket part number to a genuine Mustang bolt and ended up with the wrong thread pitch, you understand why you pay for the factory original.

Related manuals you might need:

• Mustang 2044 2054 2010 Skid-Steer Parts Catalog Factory OEM
• Mustang ME 1503 Compact Excavator Parts Manual
• MUSTANG 940 SKID STEER LOADER PARTS MANUAL

For a broader perspective on why OEM documentation matters in the automotive and equipment industries, read the Automotive Industry Overview on Wikipedia. It’s not about the brand – it’s about having a single source of truth for every fastener, seal, and assembly on your machine.

Frequently Asked Questions

Does this manual include torque values for the final drive bolts?

Yes. The Torque Specifications section covers standard attaching hardware, and the exploded-view illustrations sometimes list specific torque values in Newton-meters. Use the conversion factor on page 2 (multiply Nm by 0.738) to get foot-pounds.

Can I use this catalog for a machine outside the serial number ranges listed?

No. The catalog explicitly covers only the 3503 and 3703 with the serial ranges shown on page 1. If your machine has a serial number before AD00001 or after the Tier III cutoffs, you need a different revision. Ordering from this manual for an out-of-range machine will give you incorrect parts.

Don’t waste time cross-referencing aftermarket part numbers. Access the Factory Manual and get the exact OEM data from the first page to the last torque spec.
