Mustang ME 1503 2009 Parts Catalog – Factory OEM Documentation

Let me tell you something about parts catalogs. I’ve been turning wrenches since before some of you were born, and I’ve seen what happens when you order a hydraulic line by guesswork instead of a part number. You get the wrong fitting, the machine leaks down, and you lose a day. That’s why the Mustang ME 1503 2009 Parts Catalog sits on my bench. It’s 262 pages of factory-issued numbers – not aftermarket garbage that uses a generic bolt when you need a Grade 8.8 cap screw. This catalog comes straight from Mustang Manufacturing, and it’s the only way to keep a compact excavator running without drama.

Torque Specifications: Not a Suggestion

Every fastener on the ME 1503 has a torque value. The manual lists standard attaching hardware torque values near the back – about page 260. And it gives metric values in Newton-meters with a conversion factor (multiply by 0.738 to get foot-pounds). I’ve seen guys ruin a track tensioner because they guessed the torque on a cap screw. Don’t be that guy. This catalog also tells you that unless specified, all cap screws, nuts, and bolts are Grade 8.8, cadmium or zinc plated. That matters when you’re ordering replacements.

262 Pages of OEM Part Numbers

The catalog includes an alphabetical index (A–I and J–W) plus a numerical index. That means you can find a part either by name or by number. The exploded-view illustrations show assemblies with circled reference numbers – those indicate a complete assembly. If you see a small bag pictured, that’s a seal kit (seals, o-rings, etc.). This is the level of detail you need when a hydraulic cylinder starts leaking and you need the exact o-ring kit. No guesswork. Mustang 2044 2054 2010 Skid-Steer Parts Catalog Factory OEM covers a different machine, but if you work on multiple models, it’s worth having.

Serial Number Identification (Page 1)

Right on page 1, you get the beginning serial number: AB00440. The catalog explains exactly how serial number breaks work – up to and including 999, between 1000 and 2000, etc. There are even exceptions listed like “SN 999 and before except 997.” This level of specificity keeps you from ordering the wrong part for a machine built in a different production run. Check the serial number tag on the front cab panel before you order anything.

Why Genuine Mustang Parts Matter

I’ve pulled aftermarket seals out of machines that failed in 200 hours. The factory parts catalog lists genuine Mustang service parts. When you order using the part numbers from this manual, you get parts that fit the hydraulic system pressure, the track tension, and the engine mounts. The introduction warns you to specify the correct part number, full description, quantity, model, and serial number. That’s not bureaucratic – that’s insurance. MUSTANG 940 SKID STEER LOADER PARTS MANUAL and Mustang 910 Skid Steer Loader Parts Manual follow the same format, so if you run a mixed fleet, you know the documentation is consistent.

A word on safety: torque specs aren’t just for hold-down bolts. Hydraulic fittings, track adjusters, and pivot pins all have specified torques. Using the wrong value can cause a fitting to blow off at 3,000 PSI. This catalog gives you the standard torque values – use them.

Who Should Buy This Parts Catalog?

If you own a Mustang ME 1503 compact excavator and you do your own maintenance, this is your parts bible. If you run a shop that services construction equipment, you need it on the shelf for your techs. Beginners: don’t try to order parts without the serial number breaks – you’ll get the wrong track roller or hydraulic hose. This catalog is also useful for anyone rebuilding a machine after a salvage purchase, because it shows the complete assembly breakdown. Confirmed: the automotive industry relies on precise specifications for safety – you can read more about that in the Automotive Industry Overview. The same principle applies to construction equipment.

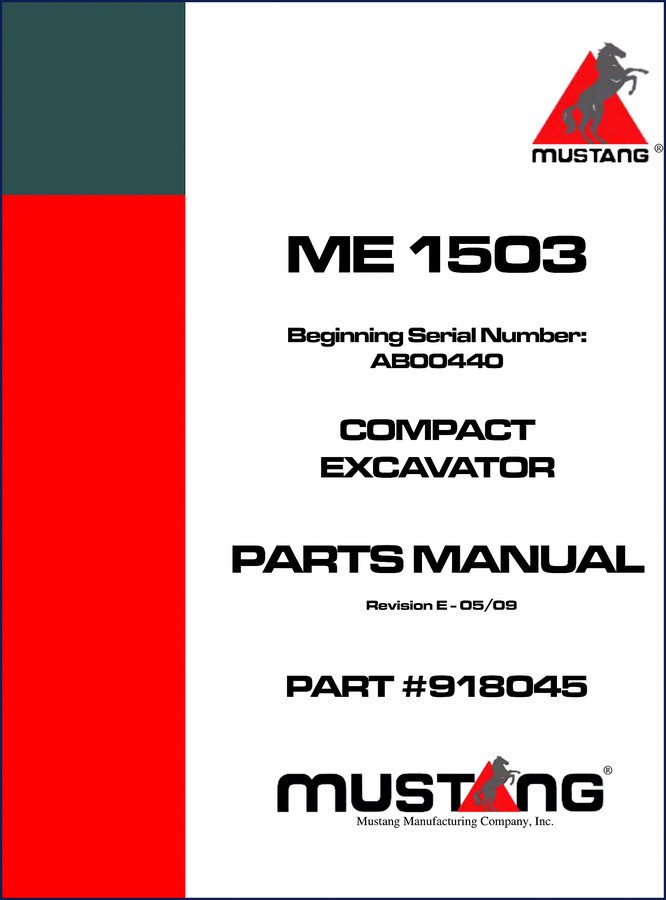

The manual is revision E, dated 05/09, and part number 918045. That means it’s the final factory revision before Mustang stopped updating this model. Automotive Industry Overview might tell you about industry trends, but this catalog tells you what fasteners go where on a 2009 ME 1503.

Frequently Asked Questions

Does the Mustang ME 1503 2009 Parts Catalog cover serial numbers after AB00440?

Yes. The catalog lists beginning serial number AB00440 and includes serial number breaks for production runs after that, with specific exceptions and inclusions noted.

How do I convert the torque values from Newton-meters to foot-pounds?

The manual itself states metric torque values are shown in Newton-meters and are converted to foot-pounds by multiplying by 0.738. Standard attaching hardware torque values are also provided near the back of the manual (around page 260). I recommend you write the conversion factor on a sticky note and tape it inside the cover – saves time when you’re under a machine with grease on your gloves.

Look, I don’t get paid to push PDFs. I get paid to fix equipment. But when a catalog like this lands on my bench, it means I can order the right part the first time and have the machine running before lunch. That’s why you should Access the Factory Manual and put it on your tablet or print it out. Keep it in the cab of your excavator. You’ll thank me when a hose blows and you need the part number at 4:30 on a Friday.
