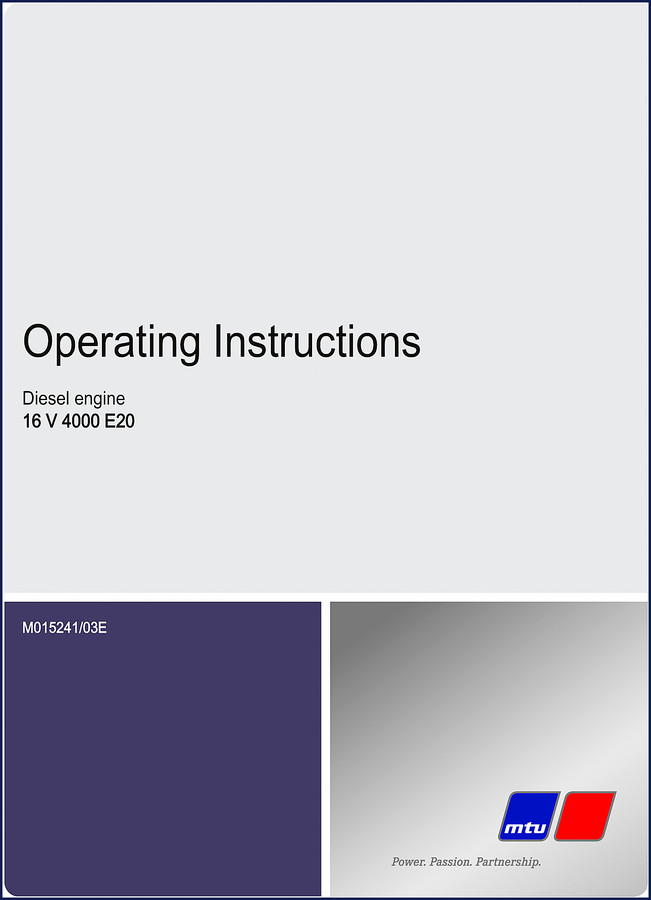

MTU 16 V 4000 E20 2011 Operators Manual – What the Factory Expects You to Know

I’ve seen too many guys grab a third-party PDF that claims to cover an MTU 16 V 4000 E20 and then come back a week later with a seized engine because they skipped the crankshaft transport lock procedure. That’s not a mistake you learn from twice. This 2011 Operators Manual from MTU – not a reprint, not a condensed version – is what the factory puts in the box. 140 pages of exactly what you need to run this engine without turning it into a boat anchor.

Safety Section: Why Page 10 Matters

Section 1.4 covers the crankshaft transport locking device. On a 16-cylinder V-engine that weighs over two tons, if you don’t lock the crankshaft before transport, you risk bending a rod or cracking the flywheel housing. Page 10 gives the exact procedure – not “secure the engine”, but step-by-step how to install the locking bracket on the flywheel. I’ve had to explain this to three different techs this year. Don’t be the fourth.

Technical Data on Page 28: What You Get

Section 3.1 lists engine data for the 16 V 4000 E20: displacement, firing order (1-8-4-12-6-14-2-10-3-11-7-15-5-13-9-16), power ratings, and lube oil capacities in quarts. No guesses – these are the numbers MTU used to certify the engine. Need the charge air cooler coolant capacity? It’s in the low-temperature circuit section later, but the baseline specs start on page 28. You don’t guess with a $50,000 engine.

7 Systems Covered in the Task Description

Section 7 runs from page 64 to page 140, covering:
– Engine: barring manually and with starting system (pages 64-66)
– Cylinder liner endoscopic examination (page 67)
– Crankcase breather: oil separator check, filter element replacement
– Valve drive: clearance check and adjustment (page 76)
– HP pump relief bore check
– Injector replacement
– Fuel system venting, filter changes
– Intercooler drain check
– Lube oil system: oil level, change, sample extraction
– Coolant circuit: high-temp and low-temp circuits with relief bore checks
– Belt drive, battery-charging generator, fan drive
That’s the difference between a manual that tells you to “change the oil” and one that tells you to extract a sample for analysis before you drain – because MTU knows you need to catch wear particles early.

What Torque Values Are Listed?

This is an Operators Manual, not a repair manual, so you won’t find cylinder head bolt torque figures here. What you do get are the specs for things like the crankshaft transport locking device bolts (page 10), oil filter housing bolts, and coolant drain plug tightenings. If you need engine overhaul torques, you want the MTU Serie 4000 Technical Manual. But for day-to-day operation – starting, stopping, fuel system venting, coolant fills – this is what you follow.

Crankshaft Transport Locking Device: Not Optional

Every time I see a 16 V 4000 E20 that came off a genset and got moved without the lock, I know the owner saved maybe 20 minutes. Then the engine won’t crank because the crank has shifted. Section 1.4 on page 10 gives you the part number for the locking tool and the installation sequence. No shortcuts. The manual also warns about explosion hazard when removing inspection port covers (section 1.6). That’s not a joke – unburned fuel vapor can ignite. MTU doesn’t write that for fun.

Source Validity: OEM vs Third-Party

Every page of this manual was printed by MTU Friedrichshafen GmbH in 2011. The copyright notice on page 2 says it all – no reproduction allowed without written permission. That means what you’re getting is the exact file that MTU ships with the engine. Compare that to a scanned copy from some forum where page 32 is missing and the firing order has been retyped incorrectly. I can’t stress this enough: for a 16-cylinder diesel that can push a thousand-plus horsepower, you pay for the real thing or you pay for a rebuild. Related manuals you might need: MTU 12V 2000 16V 2000 Service Manual for the smaller series, or Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs if you’re working on excavators with a different power unit. For basic transmission theory (not MTU-specific), check Manual Transmission and Manual Transmission for fundamentals – but that’s off-topic.

FAQ – Four Questions You Should Ask Before Buying

Does this manual cover the 16 V 4000 E20 in marine applications?

Yes. The commissioning note on page 4 includes a checkbox for Marine, Genset, and Rail. The operation and maintenance procedures apply across applications – safety and technical data are identical.

Can I use this manual to rebuild the engine?

No. This is an Operators Manual, not a service manual. It covers daily operation, maintenance intervals (section 5.1), and troubleshooting of alarms (section 6.2 DDEC). For overhaul instructions you need the MTU technical manual for the Serie 4000.

Are the fluid capacities in quarts or liters?

Both. All technical data on page 28 lists metric and imperial. This copy has the imperial units for North America – oil capacity, coolant volumes, and torque values are given in lb-ft where applicable.

What if I lose the crankshaft locking tool?

The manual gives the part number for the locking device in section 1.4. You can order a replacement from MTU. Do not attempt to fabricate one – the wrong bracket can break and drop the crank.

If you’re running a 16 V 4000 E20 in a genset, marine vessel, or rail application, this is the manual that keeps you legal with the warranty and safe with the crew. Access the Factory Manual now and keep a copy in the engine room. No excuses.
