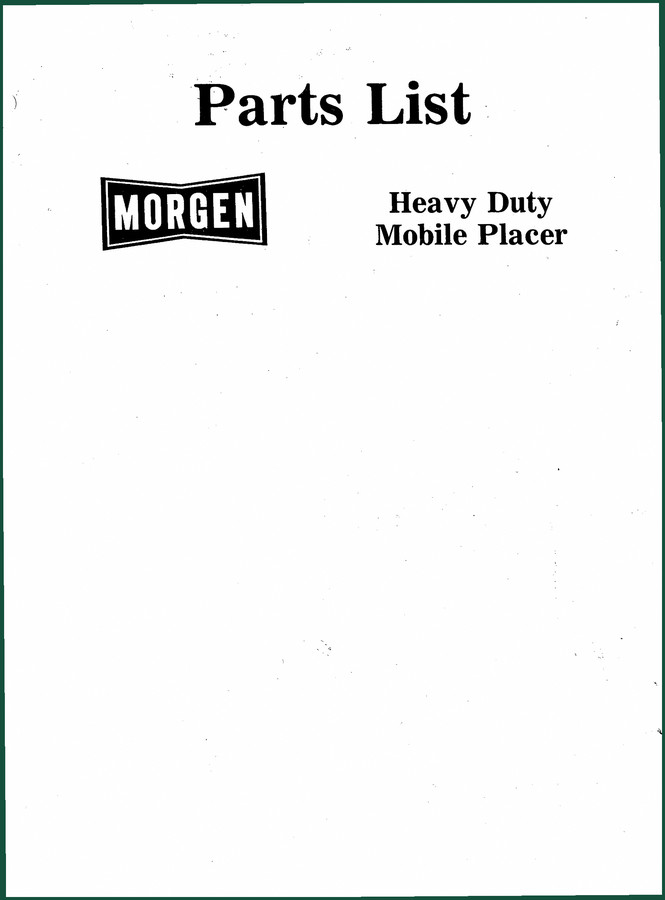

Morgen Mobile Placer Parts Catalog – 40 Pages of Factory Specs

If you’ve ever held a pile of aftermarket parts lists that don’t line up with the actual hardware on a Morgen Mobile Placer, you know the pain. You order a cone roller, get something that doesn’t fit the return roller stand, and the job stops. This 40-page Parts Catalog is the original factory document – not a scan of a scan, not a third-party reprint. It’s the same book the Morgen assembly line used to source every bolt, hose, and hydraulic fitting. I’ve torqued enough concrete placement rigs to tell you: guessing part numbers costs time and concrete. This manual gives you the real numbers.

Hydraulic Circuit Diagram (Pages 4-5)

The hydraulic circuit is the bloodstream of the Mobile Placer. Pages 4-5 give you the full schematic with all component callouts – pump, valves, cylinders, and the oil reservoir routing. Without this, you’re tracing hoses in the dirt. The addendum on page 20 (and the later 415 addendum) covers the oil reservoir and hydraulic fittings for later models. Cross-reference the part numbers here before you call your supplier.

Self-Propelled / Power Steering Assembly (Pages 13-14)

Pages 13-14 break down the self-propelled drive and power steering system – the H-frame assemblies, saddle support, and the steering cylinder mounts. If you’ve got a machine that wanders or won’t steer, grab this section. The part numbers for the steering valve and tie rod ends are listed with factory revision notes. Don’t trust aftermarket catalogs for steering components – one wrong thread pitch and you’re looking at a wreck. Check the addendum reference on page 13 for late-model changes.

Gasoline vs. Diesel Power Unit Parts

The Mobile Placer came with both gasoline and diesel power units, and they share almost zero common parts. Page 16 lists the gasoline unit – air filter, carburetor, fuel pump – all with genuine Morgen numbers. Page 17 covers the diesel power unit, including the injection pump and glow plug harness. The addendum 414 on diesel power unit updates some of these numbers. You can mix up a water pump gasket and bleed a cooling system all day, but if you order the wrong engine parts, the machine won’t start. This catalog keeps you straight.

Why Factory Parts Catalogs Beat Aftermarket

Aftermarket parts lists are compiled by people who never held a torque wrench. They guess the thread pitch, the length, the material grade. This Morgen Parts Catalog came from the factory, with every drawing matched to the physical part. The 40 pages include everything from the cone roller (page 6) to the extension hopper (page 7) and the articulating hinge (page 8). When you order a part from this book, it fits. No returns, no downtime. That’s worth the price of the access.

Using the Addendum Sections Correctly

The addendums at the back – pages 20 through 40 – are not optional. They update parts for later production runs. The addendum 43 revises the discharge end section (page 10) for newer machines. Addendum 415 changes oil reservoir and hydraulic fittings. If you skip the addendums, you might order a part that was superseded years ago. Always start at the main section, then check the addendum index. This manual tells you exactly which part numbers are current.

Concrete Handling Equipment (Page 11)

Page 11 covers the concrete handling equipment – the hoppers, chutes, and vibrator mounts. These parts wear fast. Having the correct part number for a wear plate or rubber wiper saves you from fabricating your own. The Mobile Placer is a production machine; downtime is lost concrete. Use the book.

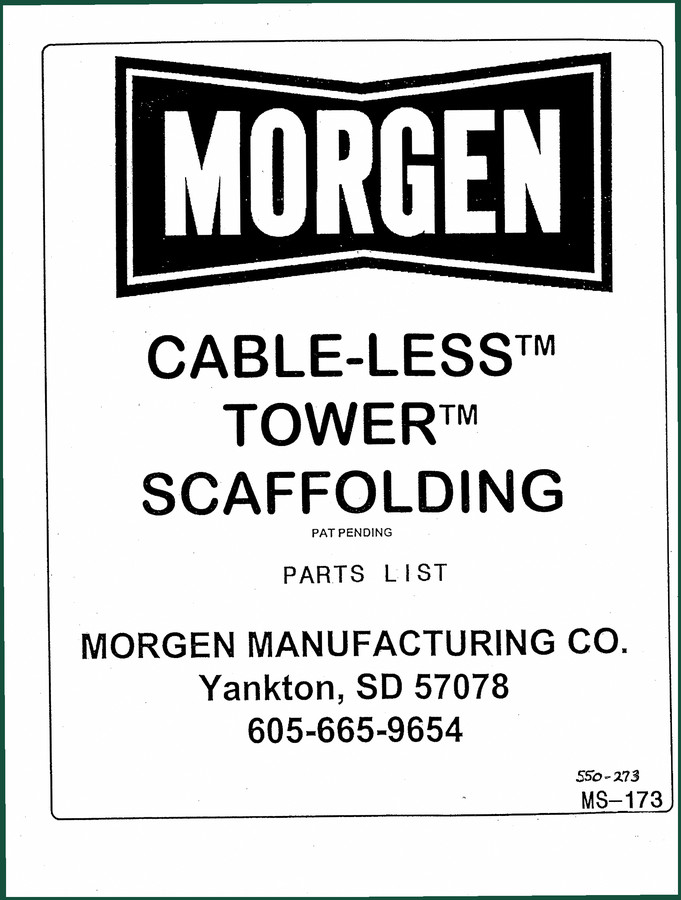

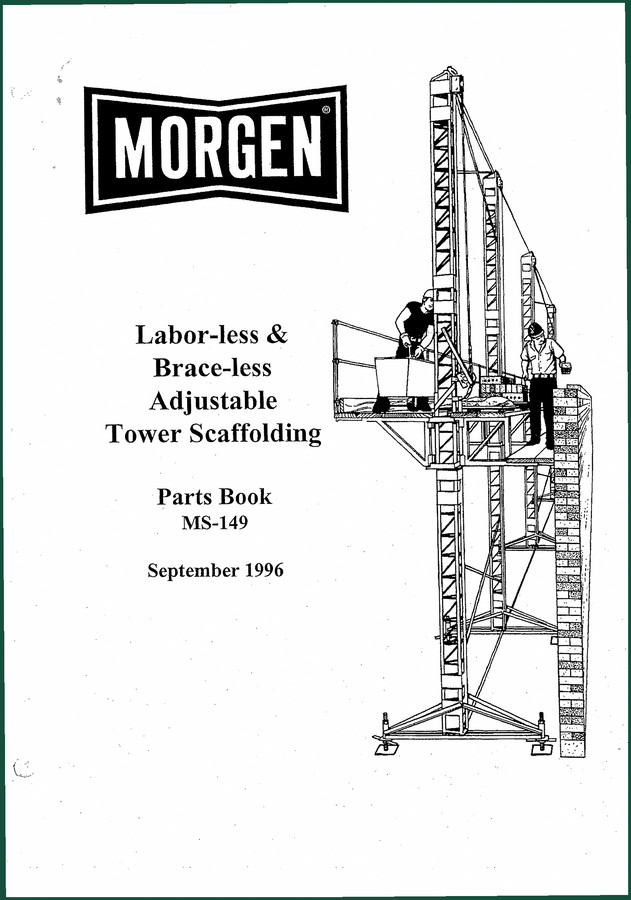

For other Morgen equipment, check the MORGEN CABLE-LESS TOWER SCAFFOLDING Parts List”>cable-less tower scaffolding parts or the Morgen Roofers Conveyor Parts List and Addendums”>roofers conveyor parts. If you work with the MS-149, the MORGEN MS-149 Parts Book Labor-less & Brace-less”>MS-149 parts book covers that model.
