Meritor Wabco ECAS 2008 Technical Manual

If you’re diagnosing an air suspension problem on a bus and the ride height won’t respond to the kneeling switch, you need factory data. Not a third-party rewrite. The Meritor Wabco ECAS 2008 Technical Manual is 60 pages of OE-level system description and diagnostics for the Electronic Controlled Air Suspension used on buses. I’ve seen too many guys swap parts on a Wabco system only to find the ECU needed a parameter change – this manual stops that. For trailer systems, see the WABCO Trailer EBS 2010 Technical Manual.

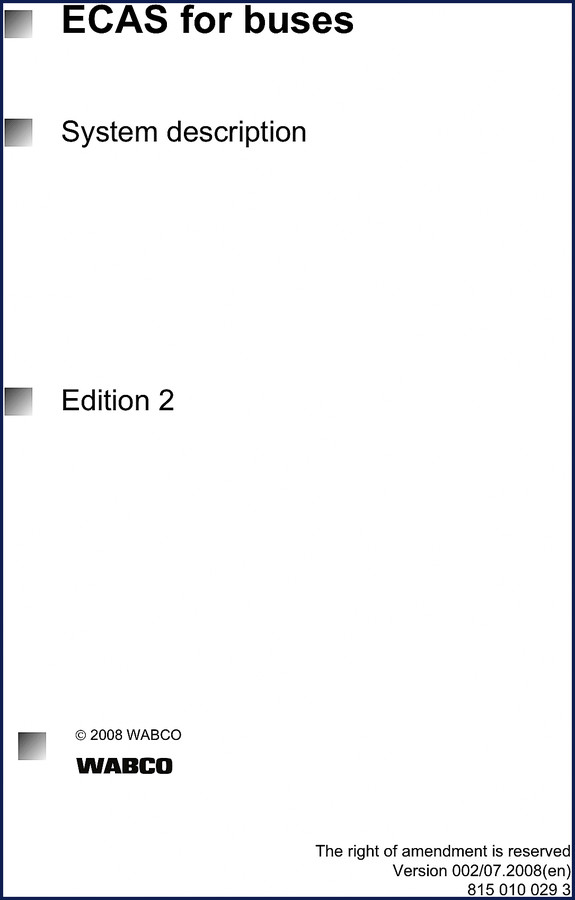

Let’s be clear about what this is. This is the original WABCO publication, edition 2 from 2008, document number 815 010 029 3. It covers the ECAS system for buses – the full system description, components, safety concept, diagnostics, and parameter setting. If you’re working on a bus with kneeling function, normal level control, or the self-learning controller, this is the reference that tells you how it works and what the ECU expects.

What the ECAS System Covers – System Functions

Chapter 3 details the functions of the ECAS-ECU. You get nominal level control, three normal levels, the kneeling function, and traction help for 3-axle vehicles (6×2). Section 3.2 covers the control algorithm and the self-learning controller – that’s the part that adapts to vehicle dynamics. If you’ve ever had a bus sit low on one corner after a valve replacement, the self-learning reset procedure is in here. The manual explains the logic, not just the parts.

Meritor Wabco ECAS 2008 Technical Manual – Component Coverage

Section 5 breaks down every physical component. You get the control electronics (ECU) variants: ECAS 4×2/6×4 without CAN, ECAS 4×2/6×2 CAN, and ECAS 4×2/6×4 CAN II with 6×2 CAN II. Sensor coverage includes distance sensors and pressure sensors. Valve sections cover the axle with two distance sensors, one distance sensor, and the specific valve for bus with kneeling function. Section 5.4.4 tells you about interchangeability of ECAS solenoid valves – critical when a valve fails and you need a cross-reference. Don’t trust online forums. Use the factory chart on page 17. If you need the central electronic unit for trailers, the WABCO TCE I / II Central Electronic in Trailers Manual covers that.

Diagnostics: PC and Diagnostic Controller

Chapter 7 is where the job gets serious. Diagnostics with a PC requires a diagnostic interface set and the WABCO Diagnostic Software. The manual lists the important menus on page 21. If you don’t have the software, you can still use the WABCO Diagnostic Controller with the menu program card 446 300 894 0. Section 7.3.1 walks you through the controller menus. This is not a generic OBD2 scan – the ECAS system uses proprietary communication. You need this manual to interpret the signal lamp messages and display codes from section 6. The ECAS system interacts with the vehicle’s transmission controller; if you’re unclear on how a Manual Transmission works, consult that article. For air suspension control on trailers, the WABCO TASC Trailer Air Suspension Control Function and Assembly is the correct reference.

Setting Parameters – Option and Value Parameters

Chapter 8 covers parameter setting – the part that separates professionals from parts changers. Option parameters and value parameters are listed, including counts and timer ticks. Page 26 has the value parameter table. If the handbook says “normal level is 14.5 inches” but the bus sits lower, you’ll find the adjustment range here. The manual also warns about safety requirements from legal provisions (chapter 4) – the kneeling system must meet specific actuation and lifting/lowering criteria.

Why OEM Documentation Matters on a Wabco System

Aftermarket manuals often skip the safety concept and legal provisions, which is dangerous on a bus where passengers rely on the kneeling system to avoid falls. Section 6 of this 60-page technical manual gives you the full safety concept – messages on the display and signal lamp messages. When a dash light flashes a code, you need the factory interpretation, not a generic OBD2 list. The Requirements for operation of ECAS on page 3 are mandatory reading – they cover what conditions the system expects before it will activate or deactivate functions. If you ignore these, you could end up with a bus that won’t kneel when it should, or worse, lowers unexpectedly. The manual also references legal provisions from chapter 4, which cover actuation types, lifting and lowering times for the kneeling system. This is not a weekend project manual; it’s a system description for technicians who respect the safety systems on a bus. You can access the factory manual from AutoRepairManuals – no scanned copies, no watermarked previews. It’s the original PDF. For a broader understanding of commercial vehicle electronics, see the Automotive Industry Overview on Wikipedia.

Frequently Asked Questions

Does this manual include wiring diagrams for the ECAS system?

No. This is a system description technical manual, not a service or wiring manual. It focuses on function overview, component identification, diagnostic procedures, parameter setting, and safety concept. The manual explicitly states in the introduction that wiring diagrams are part of the separate ECAS service manual for the specific vehicle platform. While the diagnostic section (chapter 7) shows connector pinout references for the diagnostic interface, it does not provide full chassis wiring. For detailed electrical schematics, you need the vehicle-specific service manual or the WABCO ECAS system wiring supplement. This technical manual is intended to give you the system understanding needed to interpret those diagrams correctly.

What years of buses does this ECAS manual cover?

2008 edition, but the ECAS system design applies to many buses from the mid-2000s onward. Check the system version on your vehicle.
