Description

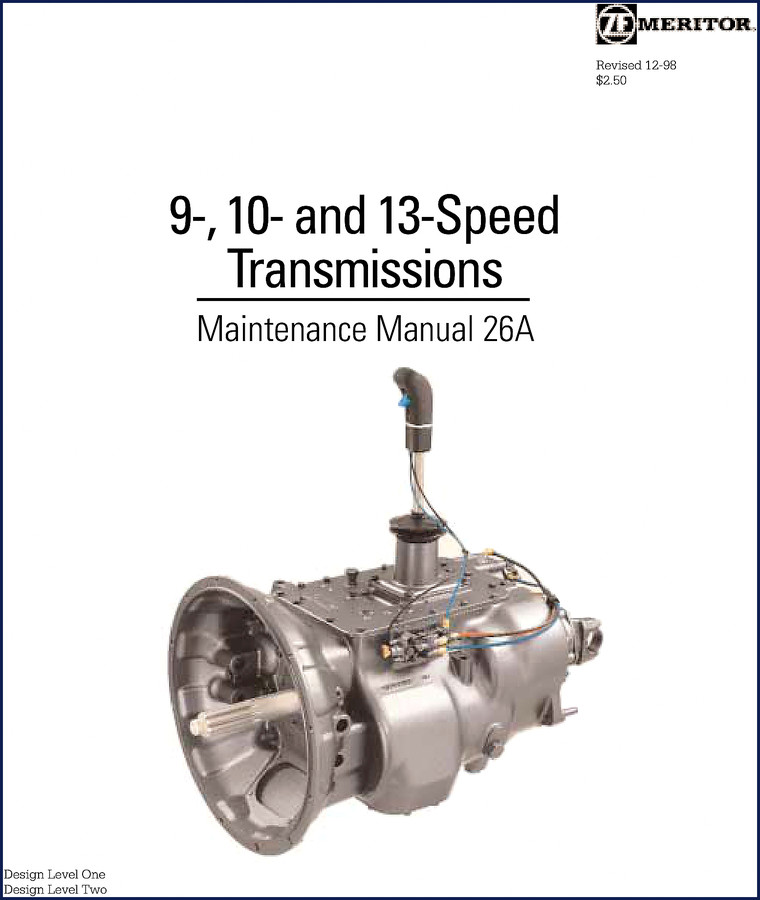

Meritor Wabco 9-Speed Transmission, 10-Speed Transmission, 13-Speed Transmission 1998 Service Manual

If you’re tearing into a Meritor Wabco 9-Speed Transmission, 10-Speed Transmission, 13-Speed Transmission 1998 Service Manual job, you’re not going to find the correct shift rail clearances in a Chilton book. I’ve spent 28 turning wrenches in San Antonio, and I’ve seen more backyard rebuilds go sideways because someone used a generic torque chart from the internet. That’s why you need the actual factory manual—the one the engineers wrote, not some aftermarket editor’s summary. This is the OEM documentation, 236 pages, published in 1998, covering Design Level One and Design Level Two transmissions. It’s the same book a dealer tech would have used.

Meritor Wabco 9-, 10-, and 13-Speed Transmission Service Manual: What’s Inside

Section 1 kicks off on page 5 with general information. You’ll find identification charts for nine-, ten-, and thirteen-speed manual transmissions on page 6. Gear timing on page 9—critical for getting the synchronizer alignment right. The gasket sealant section on page 12 includes safety warnings about silicone materials and Loctite use. One thing that catches people: the warning about not using gasoline to clean parts. Gasoline explodes. The manual tells you exactly which solvents to use for ground versus rough parts (page 19). That’s the kind of detail you don’t get from a third-party PDF.

Why Does the Factory Torque Table Matter?

Aftermarket manuals often round torque values or omit the angle turning specs. This manual uses a specific torque symbol on page 2 and lists every fastener torque in the procedures. For example, the output yoke nut—if you guess, you’ll either snap the stud or have the nut back off on the highway. The slave valve installation torque on page 27 is listed. The air filter and regulator assembly removal and installation steps on page 28-29 include the exact foot-pounds. I’ve had to re-do jobs where someone used a generic chart and stripped the shift cover bolts. Don’t be that guy.

Check the Gear Timing Before Assembly

Page 9 explains the gear timing procedure. You absolutely must verify the relationship between mainshaft gears and countershaft before you close the case. The manual lists the method using marks on gears. Skip this step and you’ll have gear clash that destroys synchronizers in 10,000 miles. The manual even tells you how to inspect used parts (page 15) and what to do if a polished surface is damaged. That’s not a suggestion—it’s a requirement for a transmission that stays quiet.

Lubrication and Maintenance Specifications

Section 2 (page 20 through 24) gives you the transmission oil specifications, oil cooler requirements, and scheduled maintenance intervals. Checking and adjusting oil level on page 21, checking the breather vent on page 22, draining and replacing oil on page 23. The remote shift housing linkage adjustment on page 24 is something most guys skip because they don’t have the factory dimensions. That’s the difference between a transmission that lasts 500,000 miles and one that fails at 200,000. The manual also covers lubricating the remote shift housing—use the right grease or you’ll have stiff shifting in winter.

236 Pages of Factory Procedures

That’s 236 pages of step-by-step procedures, safety warnings, parts inspection criteria, cleaning instructions, and torque specifications. You get the same information that Meritor Wabco provided to dealerships. The manual covers Design Level 1 and Design Level 2—two different generations of these transmissions. If you have a Level 2, the shift tower removal procedure on page 25 differs from Level 1. The slave valve removal on page 27 requires a specific air line disconnect sequence. The output yoke and oil seal removal on page 29 has a critical seal orientation note. You won’t find that in a generic manual.

For a broader understanding of how a Manual Transmission works, the Wikipedia article provides a solid overview, but you’ll need this manual for the exact rebuild specs. The Manual Transmission design hasn’t changed much, but the air shift system differences matter.

If you’re working on the truck’s brake system, check the Meritor Wabco Trucks Tractors Buses 2004 Service Manual – ABS Diagnostics. For axle work, the Meritor Maintenance Manual 5A Single-Reduction Differential Carriers and Meritor MX RS RT RF Service Manual Differential Carriers are must-haves.

Frequently Asked Questions

Does this manual cover the 13-speed transmission?

Yes. All three models are covered: 9-speed, 10-speed, and 13-speed.

What’s the difference between Design Level 1 and Design Level 2, and how do I identify mine?

The manual explains identification on page 6. Design Level 1 uses a specific shift rail layout and air system configuration. Level 2 introduced a revised slave valve and different oil seal part numbers. You need to identify your transmission’s serial number prefix to know which section to follow. If you follow the wrong procedure, you could damage the synchronizer assembly. The manual gives you the exact checks: look at the tag on the rear bearing cap, then refer to page 6 and 8 for details. Don’t guess—use the factory identification chart.

Access the Factory Manual and get the specs that keep these transmissions on the road instead of on the lift.
