Mazda Motor G35M-R 2002 Workshop Manual – Factory Transaxle Specs

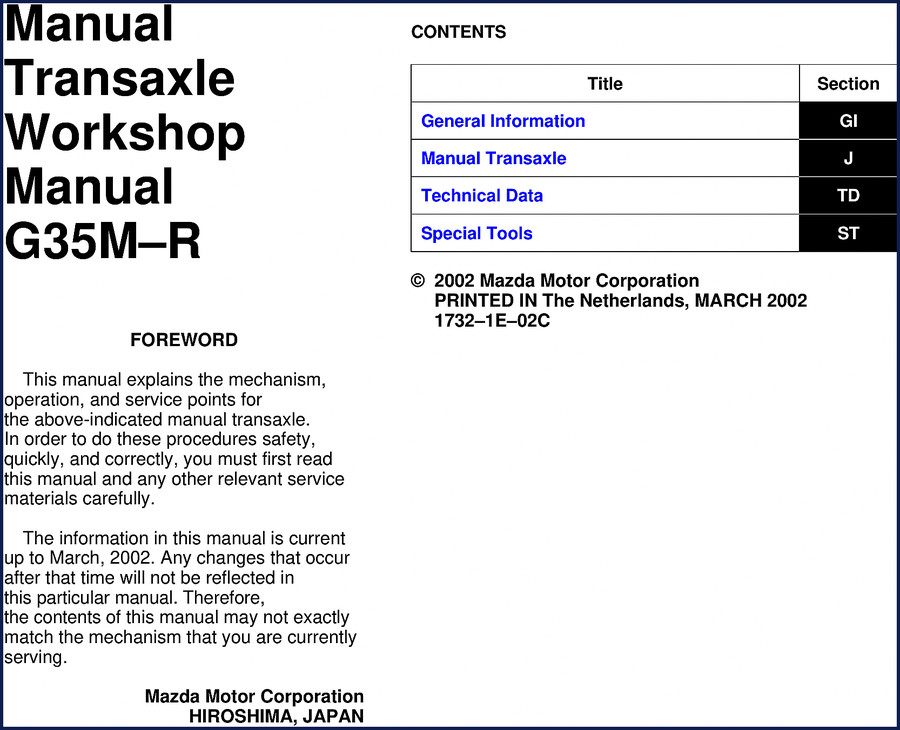

If you’re digging into a G35M-R manual transaxle without the factory documentation, you’re rolling dice with your time and your parts. I’ve seen too many guys try to reuse a bearing that should’ve been replaced because the aftermarket diagram skipped the clearance callout. This Mazda Motor G35M-R 2002 Workshop Manual is the real deal – 63 pages of Mazda’s own instructions, warnings, and torque values. No editor’s rewrite, no generic translation. You get what the factory techs in Hiroshima used.

I’ve been torquing head bolts for 28 years, and I still reach for the factory manual before I trust a third-party spec. This manual covers the G35M-R transaxle only – not the whole vehicle – but that means it’s thorough. You get the foreword (page 1) explaining the manual’s scope, then five sections: GI, J, TD, ST. Each one is a chapter you need to read if you plan on doing the job right.

General Information Section – Read This First

The GI chapter starts with safety warnings that are specific to this transaxle. Page 2 of the manual contains the factory warning about using proper tools and genuine Mazda parts. That’s not legal boilerplate – it’s a reminder that the snap ring gap on the G35M-R is tight, and a cheap snap ring from the hardware store will fail. If you haven’t worked on Mazda transaxles before, start here.

Manual Transaxle Section: Step-by-Step Overhaul

Section J is where the real work lives. Disassembly, inspection, assembly – with torque sequences for the bearing retainers and shift fork bolts. The manual assumes you’ve got basic mechanical skills, so it doesn’t explain how to use a socket wrench. What it does give you is the order of operations: which shims to measure first, how to check end play, and where to apply sealant. No guesswork.

If you’ve ever fought a synchro ring that wouldn’t seat, you’ll appreciate the step-by-step rebuild procedure in this section. The factory tells you exactly which feeler gauge to use and at what point in the assembly.

What Torque Values Are in Technical Data?

The TD chapter lists all the critical numbers: bolt torques, fluid capacities, bearing preload specs. This is the part you’ll bookmark and tab. For a transaxle rebuild, one wrong torque value can warp a housing or strip a thread. The factory spec is in the TD section – no conversion needed, no “tighten until it feels right.” If you’re working on a G35M-R, you need these numbers on your bench, not in a forum thread.

Special Tools: Don’t Start Without Them

Section ST shows the special tools Mazda designed for this transaxle. Some you can improvise – like a bearing puller – but others, like the seal installer and the preload gauge adapter, are specific. The manual lists the tool numbers so you can order the right ones. I’ve seen a tech ruin a new input shaft bearing because he used a universal driver that didn’t seat the retainer straight. Save yourself the headache and get the tools listed here.

Tools like the clutch disc alignment tool for the G35M-R are cross-referenced in the manual. You’ll find them in the ST chapter. If you skip this section, you’re going to fight the job.

Factory Source vs Aftermarket: Why It Matters

This is an original OEM print from Mazda Motor Corporation, scanned from the 2002 release. Aftermarket manuals often omit the critical notes – like the warning on page 2 about using genuine Mazda replacement parts. They also may reprint outdated torque specs or skip the special tool references. With this manual, you get the exact same document a Mazda dealer tech would use. No translation errors, no condensed steps. If you care about the longevity of the transaxle, this is the only source you should trust.

For reference, the G35M-R is a manual transmission used in certain Mazda vehicles. You can read more about manual transmission fundamentals on Manual Transmission and the broader Automotive Industry Overview for context. But when you’re on the bench, stick to this factory manual.

FAQ

Does this manual cover the entire vehicle or just the transaxle?

Only the G35M-R manual transaxle. It is not a vehicle workshop manual.

I have a Chilton’s manual for the car – is this still useful?

Chilton’s and Haynes condense procedures and often leave out Mazda-specific torque sequences and special tool references. This factory manual includes the exact steps from the original Japanese engineering team, including the shim selection chart and the oil seal installation depth. If you’re rebuilding the transaxle, the factory manual has data the aftermarket leaves out – like the specific bearing preload range and the bolt torque for the shift lever lock nut. I’ve had jobs where a misprinted torque in a generic manual caused a leak that took two more hours to fix. Stick with OEM for anything internal.

If you work on Mazda transaxles, or you own a vehicle with a G35M-R and plan to service it yourself, get the factory documentation on your workbench. You can Access the Factory Manual now from AutoRepairManuals – the file is a direct scan of the original 63-page booklet. No filler, no fluff. Just the specs you need to get the job done.
