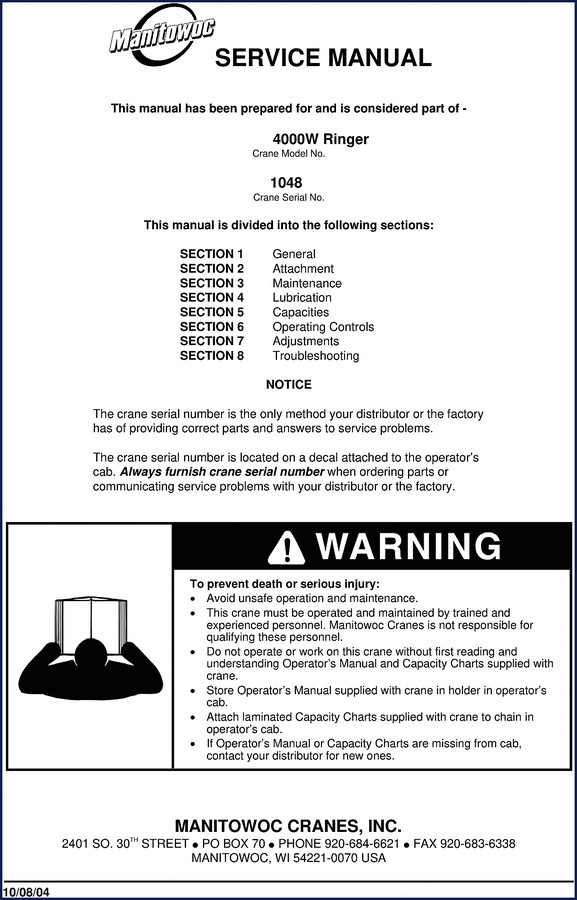

Manitowoc Cranes 4000W Ringer 1997 Service Manual

I’ve seen guys burn a whole afternoon trying to guess a boom assembly sequence or wire rope layup on a 4000W Ringer. That gets expensive when the crane is down and the job site is waiting. You don’t guess on a 200‑ton machine. You use the factory book. This Manitowoc Cranes 4000W Ringer 1997 Service Manual is the only thing that kept our shop from welding a boom section backwards. 212 pages of Manitowoc‑approved procedures, not some aftermarket rewrite that leaves out critical torque specs. If you’re maintaining, repairing, or overhauling a 4000W Ringer, this is the document your distributor would pull up.

Section 1 General: Safe Operating Practices and Warnings

Section 1 is not optional. It covers operator qualifications, conduct, handling loads, electrical power line hazards, and refueling. Page 1 has a warning directly from Manitowoc Cranes: “This crane must be operated and maintained by trained and experienced personnel.” They repeat that because electrocution and dropped loads kill people. The manual includes folio 1113 (Safe Operating Practices) and folio 1295 (Safe Maintenance Practices). If your guy skips the “Operating Near Electric Power Lines” subsection, you’re inviting a lawsuit. I’ve seen the aftermath of a boom contacting 13 kV – it’s not pretty.

Does This Manual Cover the Boom and Ringer Assembly?

Yes. Section 2 – Attachment dives deep into boom disassembly, assembly, universal anchor joint, and the Ringer assembly itself. You get service drawing 50871 for the 36 ft diameter roller ring assembly. That’s the big rotating ring that the Ringer sits on. Folio 1474 covers boom disassembly safety – they list exactly which pins to support and how to handle the luffing jib. If you’re replacing lacings or repairing a kinked chord, the manual walks through weld electrode selection and straightness checks. No guesswork.

212 Pages of Factory Specs

This manual has 212 pages because Manitowoc didn’t cut corners. Section 5 – Capacities includes the full Guide for Determining Total Load and Maximum Working Radius with worksheets A through K. Need the radius from the lower boom point with a luffing jib? Worksheet D spells it out. Crawler blocking diagram, operating radius – it’s all there. Section 4 – Lubrication tells you what grease goes where and how often. Section 3 – Maintenance covers scheduled checks that keep the crane out of catastrophic failure. You don’t get that from a third‑party PDF.

Get the Right Wire Rope Inspection Procedure

Wire rope is the single most faked procedure in crane maintenance. This manual’s wire rope section (folio 931) tells you exactly how to seize and cut, anchor to drum, wedge socket installation, and break‑in procedure. It distinguishes frequent inspection (daily) from periodic inspection (monthly or quarterly). It shows how to measure broken wires, wear, corrosion, and when to replace based on diameter loss. Steel sheave, roller, and drum inspection are also covered. If you’re using an aftermarket manual that says “inspect rope regularly” without giving the criteria, you’re flying blind.

Source Authenticity: Why OEM Matters

This is a genuine Manitowoc Cranes publication, not a scan missing pages or a reprint with blurred drawings. The index lists publication dates from 1970 through 2004 – each folio is the latest revision. Serial number 1048. The electrical system information lives in Section 6 – Operating Controls, but Section 8 – Troubleshooting includes electrical fault‑finding procedures. If you’re chasing a non‑responsive control, you need the factory logic, not a generic hydraulic schematic. For other equipment, check White Outdoor LT-5 700 Series 2005 Service Manual – OEM Factory Specs”>White Outdoor LT-5 manual or Maruti MB308 Service Manual – OEM Factory Specs for Proper Repairs”>Maruti MB308 manual. For heavy‑duty hydraulics, the Huskie HH100, HH150-2, HH300-2, HH500-2, HH750-2 Service Manual OEM Specs”>Huskie HH series manual is also available. External references: basic mechanical theory is on Manual Transmission”>Manual Transmission and Manual Transmission”>Manual Transmission pages for background.

Does this manual include wiring diagrams?

Yes, Section 6 covers operating controls including electrical schematics.

Can I use this manual for other Manitowoc crane models?

This manual is specific to the 4000W Ringer serial number 1048. Manitowoc built variations across serial numbers. Using this for a different model or serial number risks incorrect specs. The crane serial number is the key – without matching, you might get wrong torque values, boom assembly steps, or capacity charts. Always verify your serial number against the manual’s designated model. If you need a manual for a different Manitowoc crane, check our related manuals below.

If you’re maintaining a 4000W Ringer, stop pulling specs from the internet. Get the factory document that Manitowoc Cranes authorized for serial number 1048. Access the Factory Manual now and put this on your shop tablet or print it for the tool crib.
