Manitowoc 11000 Parts Catalog

If you’ve ever tried to find the right filter for a Tier 4 Hino engine on a 550-ton crane using some third-party site, you know the headache. Part numbers get transposed, quantities are off, and you waste billable hours. That’s why the Manitowoc 11000 Parts Catalog exists—an OEM document built to stop that guesswork. At 1040 pages, it’s the single source for every nut, bolt, filter, and seal on the 11000-1 crane.

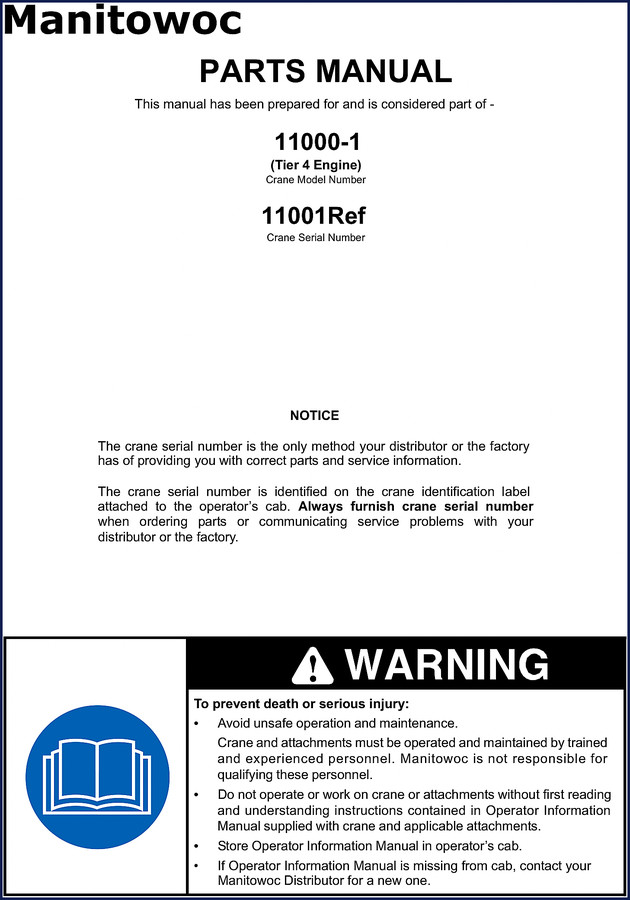

The catalog opens with a clear notice: your crane serial number is the key. It’s stamped on the operator cab label. Furnish that number when ordering parts or communicating service problems. Ignore this, and you risk ordering components that don’t fit. I’ve seen shops lose a full day because they grabbed a filter for the wrong engine revision. This manual saves you that.

Manitowoc 11000 Parts Catalog Coverage

This catalog covers the 11000-1 model specifically with the Tier 4 engine. The serial number reference is 11001Ref. Every section is organized by crane system—engine, hydraulics, superstructure, boom, and attachments. The service kit tables alone are worth the access: they list every filter, gasket, and seal you need at each interval. No aftermarket part number cross-reference required.

Engine Service Kits: Factory Breakdown

The manual devotes several pages to the Hino J08E-UV Tier IV engine service kits. Here’s a sample from the 500-hour kit: engine oil filter (9999428869), fuel filter (9999432770), fuel pre-filter (9999429896), free-fall brake cooling filter (9999421443), and hyd motors-case drain filter (9999421442). Five parts, all matched to the crane’s hydraulic circuit. The 2000-hour kit adds hydraulic return filter element (9999432131) and two o-rings for the line filters. If you’re planning a major service, you order every part from one list—no separate trips to the parts counter for forgotten bits.

That kind of detail runs through the entire catalog. You get exploded-view drawings for every assembly, with callouts tied to the part numbers. I’ve used factory parts catalogs for 30 years, and nothing beats having the original engineering data in front of you.

1040 Pages of OEM Data

Size matters when you’re working on a crane this complex. 1040 pages cover the main crane and all optional equipment. The bookmarks in the PDF are structured by system: 11000-1_prepages.pdf, then 8500-1_1 (likely for the carrier or attachment), a BLANK section, and SERVICE KITS. That structure tells you the manual is comprehensive but searchable. On a job site, I can jump to the service kit page and have the part number in ten seconds.

Source Authenticity: OEM vs Aftermarket

This is a genuine Manitowoc factory release—not a third-party scan or a reprint from a parts aggregator. Aftermarket catalogs often skip pages, transpose numbers, or bundle parts incorrectly. Here, every part number matches the crane’s bill of materials. The warning on page 1 is clear: avoid unsafe operation and maintenance. Only trained personnel should work on the crane. The manual itself is part of that safety chain. I trust OEM documentation because the engineers who designed the machine wrote the parts list.

Order the Correct Parts the First Time

Once you have the catalog open, ordering becomes a one-step process. Locate your crane serial number, find the system section, and read the part number straight from the page. No more holding a rusty filter up to the light trying to read a worn stamp. The manual also includes quantity columns—for example, the 1000-hour service kit calls for two hydraulic line filters (9999424323) and two o-rings (9999422630). If you order one, you’re short. The catalog tells you that before you click “purchase.”

For related cranes in the same family, check the Manitowoc 8500-1 Parts Catalog – 1046 Pages OEM for the 8500-1 model, or the Manitowoc 4000W Ringer Traditional Crane Parts Manual and Manitowoc 2000 Traditional Crane Parts Manual for older traditional cranes. Each is a separate OEM manual with its own serial number range. Outside the crane world, refer to the Automotive Industry Overview for broader context on how OEM documentation standards are set. Automotive Industry Overview similarly emphasizes the importance of original specs.

Does this manual cover the Manitowoc 11000 crane with serial number 11001Ref?

Yes, but verify your crane’s serial number matches the label in the operator cab. The catalog is keyed to that number.

What is included in the 500-hour service kit?

The manual lists engine oil filter (9999428869), fuel filter (9999432770), fuel pre-filter (9999429896), free-fall brake cooling filter (9999421443), and hyd motors-case drain filter (9999421442). That’s five components total.

Can I use this parts catalog for older Manitowoc 11000 models without Tier 4 engines?

This catalog is specifically for the 11000-1 model with Tier 4 engine. Older models likely have different part numbers. You need the correct catalog for your crane’s serial number and engine configuration. Contact your Manitowoc distributor if you are unsure. The serial number on the operator cab label determines which manual applies. Using the wrong catalog risks ordering incompatible parts, leading to downtime and safety hazards.

How do I find the hydraulic return filter part number?

Page 3 of the manual shows the 2000-hour service kit includes part number 9999432131 for Hyd Return Filter Rep.

When you’re ready to stop guessing and start ordering what actually fits, Access the Factory Manual. It’s 1040 pages of Manitowoc engineering, ready to save you the headache of wrong parts.
