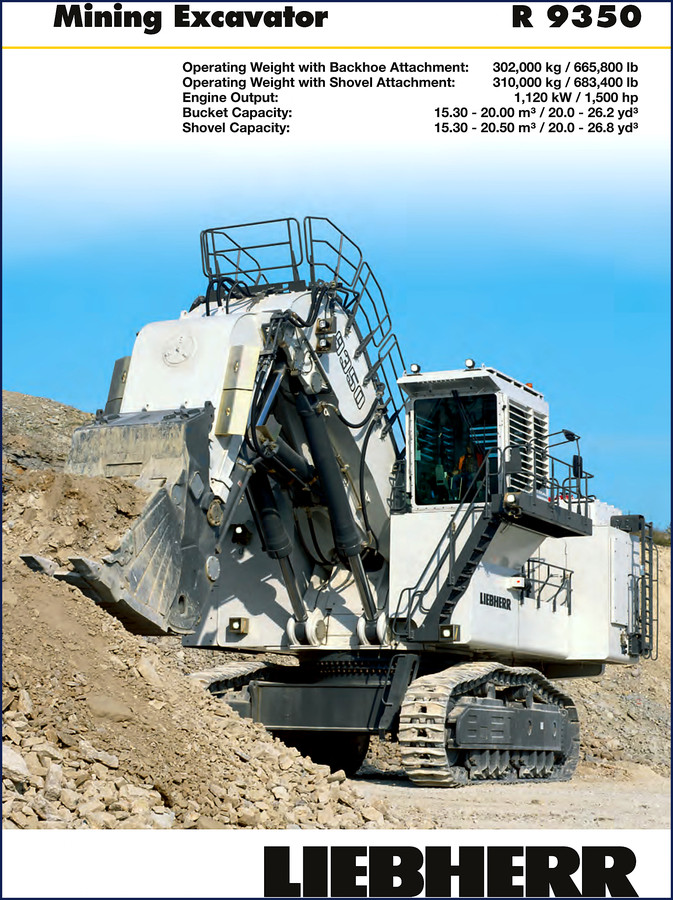

Liebherr R 9350 Technical Manual

You’re looking at a 22-page technical manual for a machine that weighs over 300 metric tons. The Liebherr R 9350 Technical Manual is not a repair guide. It’s a spec sheet with factory numbers. If you’re planning to wrench on one of these, you need these numbers. Guessing on a 1,500 hp engine gets you a blown engine or a lawsuit. Period.

This isn’t a coffee table book. It’s a set of verified operating weights, engine output, bucket and shovel capacities. The manual gives you 665,800 lb with backhoe attachment, 683,400 lb with shovel. Engine output: 1,120 kW (1,500 hp). Bucket capacity: 15.30 – 20.00 m³ (20.0 – 26.2 yd³). Those are the numbers you reference before you order parts or plan a transport. If your junior tech shows up without them, send him back to the office.

Liebherr R 9350 Technical Manual: Specs You Can Trust

Every line in this manual came from the factory. No aftermarket translations. No third-party guessing. The operating weights, engine output, bucket and shovel capacities – all verified by Liebherr’s engineering. I’ve seen too many guys trust a forum post and shear a boom pin. That’s a $10,000 mistake. The OEM numbers inside these 22 pages are the only ones that matter. Cross-check your hydraulic pressures against the spec table. Compare the attachment weights. If it doesn’t match, stop work and verify.

You get the full range of bucket capacities (15.30 – 20.00 m³) and shovel capacities (15.30 – 20.50 m³). That means you can select the right bucket for the material you’re moving without guessing. The manual also lists the engine output in both kW and hp. That’s critical when you’re matching the machine to site requirements or ordering replacement components. The R 9350 is a 310,000 kg machine when you put a shovel on it. That weight drives every bearing selection, every hydraulic line rating.

Electronic Cylinder End Position Control: Why It Matters

Page 4 of the manual covers the patent-pending electronic cylinder end position control. This system uses sensors to slow the attachment movement before it reaches the mechanical stop. No shock loads, no oil heating, and it saves energy by limiting flow when the cylinder approaches its end. If you’re troubleshooting a jerky bucket or a customer complaint about hard stops, you need to understand this control logic. The manual explains the patent-pending system – don’t rely on a generic service manual that treats it like a standard hydraulic cushion. This is electronic control, not a mechanical relief valve.

Why does that matter to you? Because if you replace a cylinder without resetting the end‑position limit, you’ll blow seals. Ask me how I know. The manual doesn’t give you the ECU calibration steps – it’s a technical manual, not a service manual – but it gives you the operating parameters so you can verify the system is working within spec. If the machine is using more fuel than expected, check if the cylinder end position control is not engaging. That’s a diagnostic clue.

Litronic Machine Control: Diagnostic Hints

Liebherr’s Litronic electronic machine control is covered on later pages. This system manages the engine and hydraulics for fast loading cycles and allows multiple simultaneous movements without bogging down. For a diagnostician, Litronic means you need to scan for fault codes before you touch a wrench. The manual does not list DTC codes, but it tells you the system exists and what it does. If you see a warning light on the operator’s console, your first step is to understand that Litronic is in play. Without that knowledge, you might chase a mechanical issue that’s actually an electronic calibration problem.

In the field, I’ve seen guys replace a hydraulic pump because the machine was sluggish. Turned out the Litronic was in a derate mode due to a sensor fault. The manual won’t save you from that mistake – you need the service manual for that – but it will remind you that the machine has an electronic brain. Respect it.

What Does the 22-Page Manual Include?

• Operating weights with backhoe and shovel attachments
• Engine output – 1,120 kW / 1,500 hp
• Bucket and shovel capacity ranges – 15.30 – 20.50 m³
• Electronic cylinder end position control description
• Litronic machine control overview
• Safety and environment section
• Customer support and reliability claims

That’s not a lot of pages, but every one of them is dense with factory-verified data. You don’t get step‑by‑step repair instructions. You get the numbers that make repair possible. If you need procedure steps, consider pairing this with a full service manual like the Liebherr R 934 C Litronic Technical Manual or the LIEBHERR R 956 Crawler Excavator Technical Manual. Those are different machines but share similar control systems. And if you’re dealing with powertrain issues, the Manual Transmission section of your truck or haul unit might benefit from the same factory approach – but that’s a different manual.

3 Reasons to Use OEM Documentation

First, aftermarket spec sheets often round numbers. Liebherr doesn’t round. 302,000 kg is exactly 302,000 kg. Second, safety. The manual includes a dedicated safety and environment section. It’s not filler. It tells you the machine has uncompromising safety for operator and maintenance crews. If you skip reading that because you think you know the machine, you’re the guy who gets pinned. Third, liability. If something goes wrong, and you used a non‑OEM spec, your insurance might not cover it. The manual is a document of truth.

Safety Checks on the R 9350

Page 3 of the manual has a bullet about safety and environment: “The Liebherr R 9350 provides uncompromising safety for operators and maintenance crews, with innovative technologies integrated into the machine.” That’s not a marketing line – it’s a design statement. When you’re working on this machine, you need to know the emergency shutoffs, the lockout points, the areas where stored energy can hurt you. The manual doesn’t list them, but it tells you the machine was designed with safety in mind. That means you should approach every repair assuming the safety systems work – and you verify them.

One more thing: the operating weight figures are critical for transport and lifting. If you’re picking up the R 9350 with a crane, you need the exact weight. The manual gives you 683,400 lb with shovel. That’s the number not a range. Get it right.

Get the numbers right.

Is this manual suitable for a beginner DIY mechanic?

No. This is a technical data sheet for professionals working on a 310,000 kg mining excavator. Beginners should start with smaller equipment manuals.

Can I use this manual to rebuild the engine or hydraulics?

Not for step‑by‑step procedures. This 22‑page manual gives you factory operating specs – weights, capacities, engine output, and control system overviews. You need the separate service manual for disassembly, torque values, and repair sequences. However, if you already have the service manual, this technical manual confirms the specs you reference during the job. It ensures you’re not using a worn spec from an aftermarket source. For example, if a service manual says the bucket capacity is 15.3 m³ but this technical manual says up to 20.0 m³, you know the range and can choose the correct bucket for your application. That kind of data prevents ordering the wrong bucket or misinterpreting payload limits. I’ve seen shops waste a full day because they trusted a third‑party spec that was off by 2 yd³. This manual kills that guesswork.

When you work on iron this size, you don’t chance it. The factory numbers are here. Access the Factory Manual and put it on your tablet or print it. Reference it before you lift, before you order, before you turn a wrench. That’s how you keep a R 9350 running and keep yourself safe.
