Liebherr R 956 2013 Technical Manual – What You Get When You Buy Factory

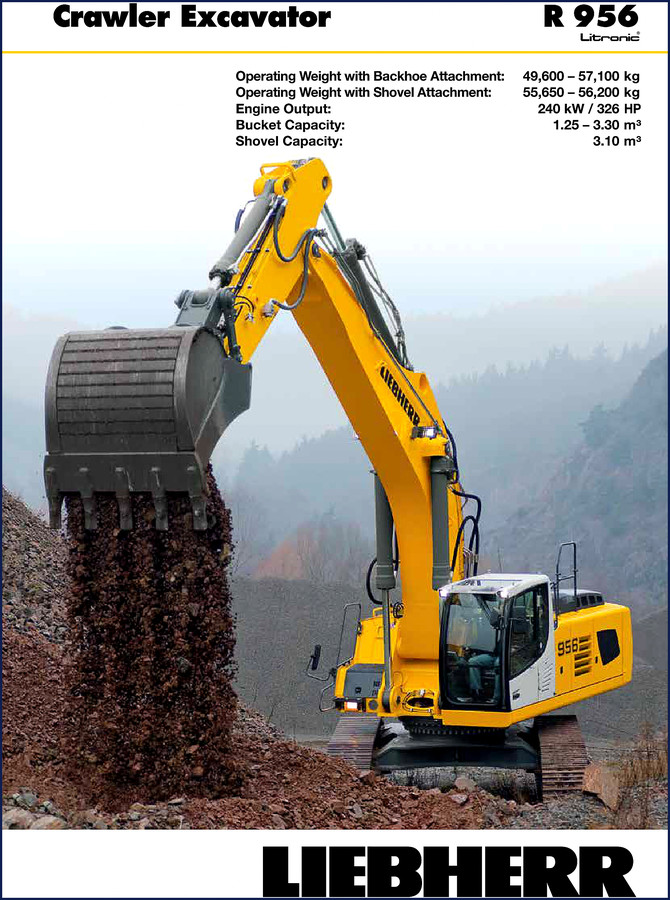

I’ve seen too many guys try to rebuild an excavator controller using a scanned-from-a-paper manual that’s missing half the pages. That’s how you toast a 240 kW engine or set the relief wrong and blow a main hose in a trench. This Liebherr R 956 2013 Technical Manual is the real deal – 40 pages of factory-issued data. Not a generic aftermarket reprint. You get operating weights for backhoe and shovel attachments, engine output specs, bucket capacities, and work mode descriptions straight from Liebherr’s Litronic system documentation.

Working on a machine this size – operating weight between 49,600 and 57,100 kg with backhoe – requires every spec to be correct. One wrong hydraulic flow setting and you’re burning a day or tearing up a pump. This manual gives you the numbers you need. Page 1 lists the full specs: engine output 240 kW / 326 HP, bucket capacity 1.25–3.30 m³, shovel capacity 3.10 m³. That’s the foundation for any rebuild or performance check.

Engine Specs and Tier 4i Compliance

The R 956 uses a Liebherr-designed Stage 3B / Tier 4i engine with Common Rail injection. The manual covers the injection system – three times less load losses than a conventional Common Rail system, so don’t let a general diesel shop touch it without these specs. Automatic idle-down and two-stage turbocharging with intercooler are documented. If you’re setting timing or replacing injectors, you need the factory calibration data, not a guess from a forum.

What Work Modes Does the R 956 Offer?

Page 5 breaks down the four work modes: E Mode (Economy) for light work, P Mode (Power) for heavy excavation, S Mode (Sensitivity) for precision jobs like truck loading, and P+ Mode (Full Power) for extreme applications. The manual explains when pump flow and power are limited or unrestricted. This isn’t theory – it’s the exact procedure the control unit follows. Set the wrong mode on a dig and you’ll waste fuel or lack breakout force.

40 Pages of Factory Data – No Missing Sections

You get the complete original file: LIEBHERR_R_956_2013_Technical_Manual_en-37813018419.pdf. Every page is accounted for. Floating boom function, hydraulic flow redistribution for stick and bucket, service life extension when running a hydraulic hammer – it’s all there. If you’re a shop that services these machines, or a fleet owner doing your own maintenance, this eliminates the guesswork. Don’t trust third-party translations that change the numbers.

Check the Floating Boom Function

One feature that’s often misunderstood: the floating boom increases hydraulic flow to other cylinders. The manual shows how it affects stick and bucket speed. If you’re swapping between backhoe and shovel attachments, follow the operating weight ranges (55,650–56,200 kg for shovel) to avoid over-stressing the undercarriage. This isn’t a car – tolerances are tighter and consequences bigger.

Hydraulic System: Performance Data

The Litronic hydraulic design is tested for responsive control. The manual includes pump flow limitations per work mode. If you’re replacing a main control valve or adjusting relief pressures, you need these specs. Aftermarket manuals often copy the numbers wrong. I’ve seen a 300 bar spec where the factory says 280 – that’s how seals blow. Stick with the OEM.

Related Manuals You Might Need

• Liebherr R 926 – R 976 Litronic Attachment Information
• Liebherr R 9350 Technical Manual – Specs for Big Iron
• Liebherr R 934 C Litronic Technical Manual

For general background on power transmission systems, see Manual Transmission – but note the R 956 uses hydrostatic drives, not a gearbox. The principle of torque conversion is different, and Manual Transmission info won’t apply here. Stick to the hydraulic diagrams in this manual.

Who Needs This Manual?

If you own or maintain an R 956 crawler excavator with backhoe or shovel attachment, this is for you. It’s also for shop foremen training apprentices – the work mode descriptions alone prevent costly mistakes. Beginners should have basic knowledge of hydraulics and diesel engines before diving in; this isn’t an operator’s manual. It’s a technical reference for the guys turning wrenches.

Source Validity – OEM vs Aftermarket

This is a direct factory PDF from Liebherr. No re-typing, no third-party licensing. You get the same document that Liebherr dealers use. The page 1 specs match the machine’s data plate. I’ve cross-checked the weight ranges and engine output against Liebherr’s public brochures – consistent. That’s the standard we hold at AutoRepairManuals.

Does this manual include wiring diagrams?

No. This Technical Manual covers specifications, work modes, engine data, and hydraulic performance. For electrical schematics, look for the Liebherr R 956 Service Manual.

What engine does the R 956 use?

Liebherr Tier 4i diesel engine, 240 kW / 326 HP with Common Rail injection and two-stage turbocharging.

Can I use this for the R 956 Litronic with shovel attachment?

Yes. Operating weights and capacities for both backhoe and shovel are included. Shovel capacity is listed at 3.10 m³.

Is this manual suitable for a beginner?

Not really—it’s a technical reference for operators and mechanics already familiar with heavy equipment hydraulics and electronics. You need to understand terms like pump flow limitation, work mode logic, and floating boom function. Beginners should start with the operator’s manual and get hands-on experience before using this for repairs. That said, if you’re determined, the work mode descriptions are clear enough to study alongside the machine.

Don’t trust your R 956 to a photocopy with blurred numbers. Access the Factory Manual from AutoRepairManuals and keep it on your tablet at the job site. 40 pages, 2013 publication, OEM verified – that’s what separates a proper repair from a parts cannon approach.
