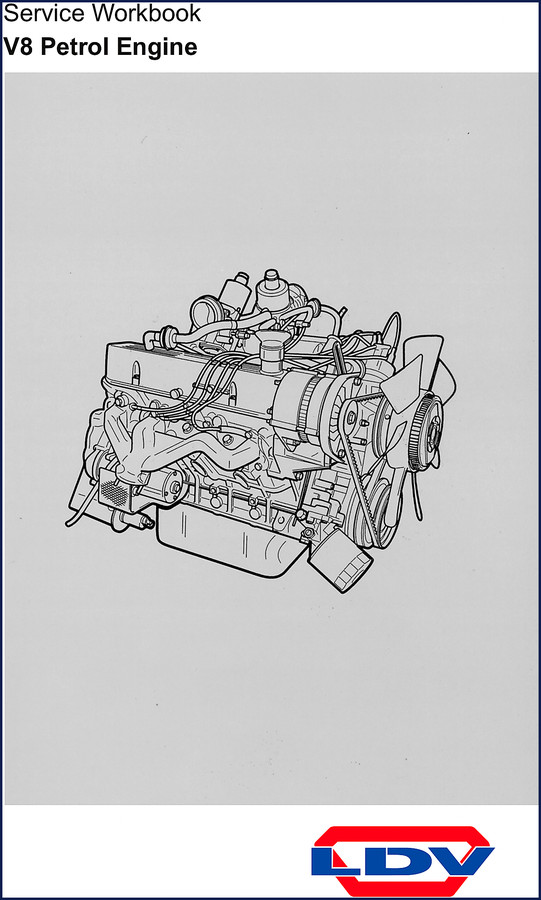

LDV 400, 300 1995 Service Manual

You’ve been burned by aftermarket manuals that guess at torque specs or skip the camshaft timing procedure. That doesn’t fly when you’re inside a V8 that shares its roots with a Land Rover. This 86-page LDV 400, 300 1995 Service Manual is the actual factory workbook – the same one dealer techs used when these trucks were new. It calls out exact torque values for cylinder heads, crankshaft main caps, and every fastener that matters. If you’re working on a 300 or 400 model with the V8, this is the only reference that belongs on your bench.

Skip the guesswork. The manual walks you through everything from general specification data to engine tuning, special tools, and a full engine dismantle & overhaul sequence. Each subsection – valvegear, cylinder heads, flywheel, timing cover, oil pump, camshaft, connecting rods & pistons, crankshaft – is laid out in order. You don’t flip back and forth chasing missing steps.

LDV 400, 300 1995 Service Manual: What It Covers

This workbook covers the entire V8 engine fitted to LDV 300 and 400 models. It opens with general specification data (bore, stroke, firing order, lubrication capacities) and engine tuning data. Then you get the service summary – oil grades, filter intervals. Special tools are listed by part number so you know exactly what to grab from the box. The torque wrench settings section is critical. Page 2 of the contents lists everything: “Torque Wrench Settings” appears right after special tools, meaning you can find the numbers for head bolts, main bearing caps, connecting rod bolts, and the flywheel without digging through paragraphs. This manual also includes the crankcase breathing system, pulsair air injection, fuel system (Solex 175 CDSE and SU HIF 44 carburettors), cooling system, induction manifold, and electronic ignition. It’s a complete engine service workbook, not a thin pamphlet.

Torque Wrench Settings: Factory Specs You Can Trust

The torque wrench settings section is the part I check first on any manual. If it’s wrong, you’re either stripping threads or blowing head gaskets. This workbook reproduces Land Rover’s official torque values for the V8. For the cylinder heads, you get a staged tightening sequence with final torque in lb-ft. The crankshaft main bearing cap bolts, connecting rod nuts, camshaft sprocket bolt, and flywheel bolts all have their own numbers. No rounding up or “approximate” values. These are the same numbers Land Rover printed for the Range Rover engine that LDV adapted. You can trust them because they came from the people who designed the casting. Avoid aftermarket reprints that lose whole lines during copying. This is a scan of the original 1995 publication, so every digit is legible.

Engine Dismantle & Overhaul – What a Technician Needs

The dismantle and overhaul chapter runs from valvegear to crankshaft. It tells you to remove the cylinder heads in the correct order to avoid warping. It covers the timing cover removal and oil pump disassembly. The camshaft section explains bearing alignment and installation direction. Connecting rods and pistons get ring gap measurement specs and a note on piston-to-bore clearance. The crankshaft section includes main bearing cap removal sequence and thrust bearing alignment. After reassembly, the engine assembly chapter gives you the firing order for the V8 and valve clearance adjustment. There’s also an engine fault diagnosis table – symptoms like low oil pressure, rough idle, overheating – with probable causes and fixes. This is the kind of reference that turns a six-hour tear-down into a three-hour job because you aren’t guessing the next step.

Does the Manual Cover Fuel and Cooling Systems?

Yes. The fuel system section covers both the Solex 175 CDSE and SU HIF 44 carburettors. It includes float level adjustments, jet sizes, and throttle linkage setups. The cooling system chapter explains thermostat replacement, water pump removal, and coolant capacity for the V8 (with a reference to the radiator and expansion tank). Induction manifold removal and gasket replacement is also documented. The electronic ignition section covers the amplifier module and distributor timing. If you need the full wiring diagram for the entire vehicle, that’s in a separate LDV Van, Minibus, Van/Crewbus 1995 Wiring Diagram | OEM Factory Manual”>wiring diagram manual. This service workbook stays focused on the engine and its immediate ancillaries.

7 Systems Covered in This Factory Workbook

1. Engine (dismantle, overhaul, assembly, fault diagnosis)
2. Crankcase breathing system
3. Pulsair air injection
4. Fuel system (carburettors)
5. Cooling system
6. Induction manifold
7. Electronic ignition

Each system gets its own chapter with step-by-step procedures. The manual doesn’t assume you’ve already removed the intake – it tells you how. Every section includes the tools required and safety warnings (like relieving fuel pressure before disconnecting lines).

Choose OEM Documentation for Your LDV 300 and 400

This is not a third-party compilation. LDV published it in 1995 and Land Rover allowed reproduction of their engine manual sections verbatim. That means the part numbers, torque values, and clearance specs are the same ones Range Rover dealers used. Aftermarket manuals often merge multiple engine variants into one confusing set of tables. Here you get one engine – the V8 – with no ambiguity. If you’re serious about keeping your LDV on the road, this is the reference. Pair it with the LDV 200, 400, Pilot & Convoy Body Service Workbook”>body service workbook and the LDV Gearbox P5-100 Service Workbook”>gearbox manual to cover the rest of the truck. For transmission overhaul procedures, consult a Manual Transmission”>manual transmission resource from the OEM; the same goes for Manual Transmission”>manual transmission diagnostics if your model uses a different gearbox.

Frequently Asked Questions

Is this manual only for the V8 engine?

Yes, it covers only the V8 engine fitted to LDV 300 and 400 models.

Does it include torque specs for the cylinder head?

Yes. The torque wrench settings section lists values for cylinder head bolts, main bearing caps, connecting rods, flywheel, and camshaft sprocket. All values are in lb-ft from the Land Rover service data.

What about wiring diagrams?

This manual does not include vehicle-wide wiring diagrams. It focuses on engine mechanicals, fuel, cooling, and ignition. For the complete electrical system, see the separate LDV Van, Minibus, Van/Crewbus 1995 Wiring Diagram | OEM Factory Manual”>wiring diagram manual. That manual covers the entire chassis harness including lights, starter, and alternator circuits.

Can I use this for the 400 model?

Yes, the manual covers both 300 and 400 models that use the V8 engine.

Stop relying on forum guesses and aftermarket reprints. The LDV 400, 300 1995 Service Manual gives you the exact factory data you need to tear down, rebuild, and tune the V8 engine. Access the Factory Manual now and get the torque specs, clearances, and procedures that Land Rover and LDV approved.
