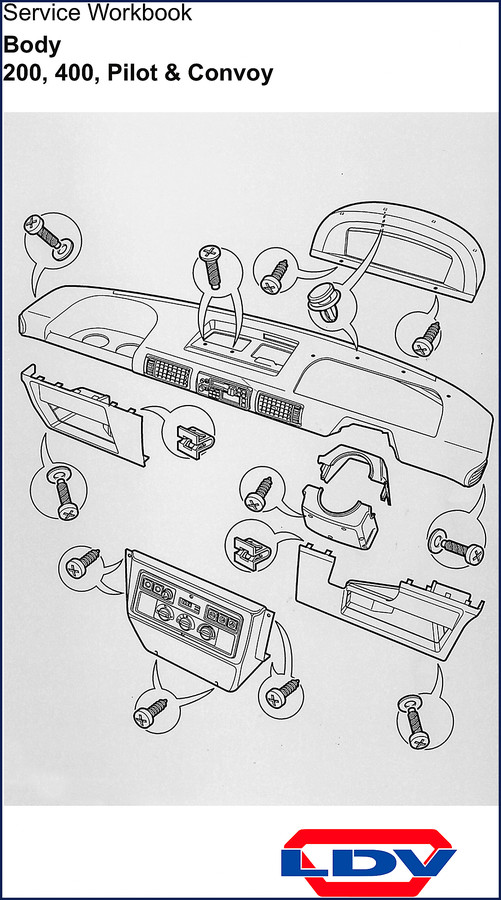

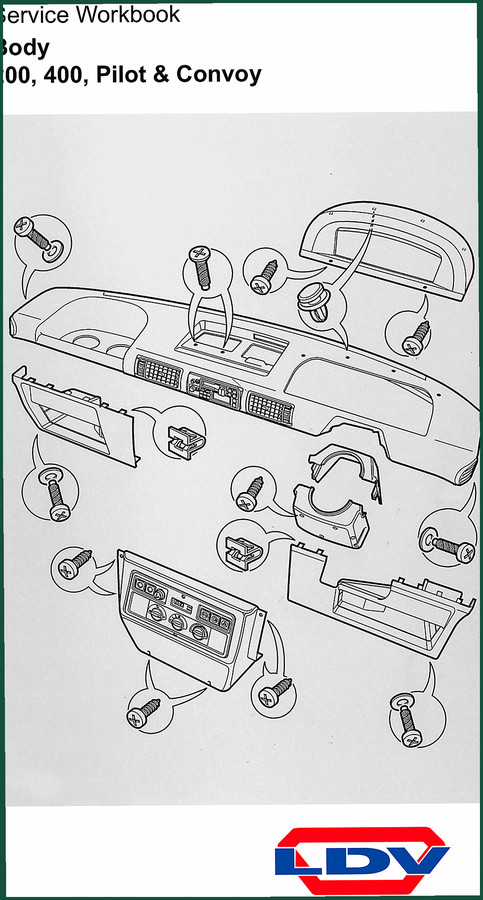

LDV 200, 400, Pilot, Convoy 1996 Service Manual – OEM Factory Body Service Workbook

If you are working on an LDV 200, 400, Pilot, Convoy 1996 Service Manual – actually, if you are working on any of those vans, you need this book. Not a photocopy. Not a PDF someone scanned sideways. This is the factory service workbook from LDV themselves, 103 pages long, covering body and fittings. I have torqued more bolts than most of you have changed oil, and I can tell you: skipping the factory torque spec will cost you. Cracked grilles. Stripped threads. Doors that don’t align. This manual gives you the numbers straight from Birmingham.

Let me walk through what you get.

Torque Wrench Settings – 200, 400

Page 4 of the manual lists the torque wrench settings for both the 200 and 400 models. These are not suggestions – they are the values LDV uses on the assembly line. Every fastener on the radiator grille, bumpers, bonnet latch, and cab door hinges gets a specific figure. Use a beam-style or click-type wrench calibrated within the last 12 months. Dial in the spec. That is how you keep the body panels from rattling loose at 70 mph.

Part 1: 200, 400 – Body Panel Removal

This section walks you through each exterior panel in order. Radiator grille removal, bumpers for both 200 and 400, bonnet release cable, hinged cab door, sliding door, crew cab door – it is all there. The manual includes notes on special tools required (listed on page 4 under “Special Tools”). For instance, removing the tailgate on the 200 requires a specific drift pin driver. Do not rig it with a screwdriver. You will chip the paint.

Part 2: Pilot & Convoy – What Changes?

The Pilot and Convoy share a lot of body structure with the 200/400, but there are differences. This manual dedicates Part 2 to those variants. You get procedures for the Pilot tailgate, Convoy rear doors, glazing, and wiper systems. The facia removal on a Convoy is not the same as a 200. Follow this section precisely. Also covers the heater and heater blower assembly.

Why OEM Beats Aftermarket for This Manual

I have seen aftermarket “repair manuals” that tell you to “tighten until snug.” That is useless. The OEM manual gives you torque values for every bolt. For example, the torque settings for the seat belt anchor points are critical – you do not guess seat belt bolts. This manual also includes a service summary (page 2) that lists inspection intervals for body components. Aftermarket books often skip that. If you want to keep the van safe, use the factory source. For related engine or gearbox work, check out the LDV V8 Petrol Engine Service Workbook (300/400) and LDV Gearbox P5-100 Service Workbook. For wiring diagrams, see LDV Van, Minibus, Van/Crewbus 1995 Wiring Diagram | OEM Factory Manual.

103 Pages of Factory Specs – Is It Enough?

Yes. The manual is focused on bodywork. It does not cover engine or transmission. But for what it covers – panels, glass, seats, heating, wipers – it is the only source you should trust. 103 pages, original 1996 publication, no reprints or generic scans. Need a torque value for the bonnet hinge? It is in there. Need the procedure to remove the headlining on a 400? Page 16 (approximate – the manual has no page numbers printed, but the TOC is clear). If you are doing a full restoration, pair this with the Manual Transmission workbook for the drivetrain side. Or refer to a standard Manual Transmission rebuild guide for gearbox specifics.

FAQ

Does this manual cover the engine or driveline?

No. It is strictly body and fittings. See the related manuals above for engine, gearbox, and wiring.

What torque values are included?

The manual lists torque wrench settings specifically for the 200 and 400. For Pilot and Convoy, you use the same settings except where noted – the manual states that. You get values for bumpers, grille, doors, seats, seat belts, and more. All in Nm and ft-lb. I have seen EIGHT different torque values for various fasteners in the body section alone. Do the job right.

Is this the same as the workshop manual for the whole vehicle?

No. The full workshop manual includes engine, transmission, suspension, etc. This is the body service workbook – part number DW03936501, published 08/96. If you need the complete set, buy the body workbook plus the other workbooks.

Can I use this for a 1997 LDV?

Possible, but check the TOC. The 1996 edition covers 200, 400, Pilot, Convoy from that model year. Later years may have revisions. Always check the publication date.

That is the long and short of it. This manual sits on my bench every time I touch one of these vans. If you are rebuilding a front end, swapping doors, or fixing a heater, you need the factory spec. Access the Factory Manual and have the complete body repair guide on your tablet or printed out. It saves you the headache of redoing work because some online video told you a different torque.
