Land-rover RR 1884E 1987 Troubleshooting Manual – The Shop Copy You Need

You’ve got a 1987 Land-rover RR 1884E on the lift. Owner says the battery drains overnight. Another says the starter just clicks. You’ve seen it a hundred times – but on this vintage Rover, the electrical system is packed with relays, delay units, and an electronic control unit that can lie to you. Without the factory Troubleshooting Manual, you’re chasing ghosts. I’ve been turning wrenches since before this truck was built, and I can tell you: the difference between a 30-minute fix and a three-hour headache is having the right diagnostic tables in front of you. This 146-page book gives you the symptom/cause/cure layout that aftermarket guides never match. Period.

Fault Diagnosis Tables: Why the Factory Data Matters

Page 2 of this manual starts with a grid you’ll use every time. Battery low? It lists possible causes – broken alternator connection, bad voltage regulator, greasy slip rings, worn brushes, broken fan belt. Then it tells you the cure. No “check and replace if necessary” garbage. It says “Examine the charging and field circuit wiring – tighten any loose connections, repair/replace broken leads.” That level of detail came from a Land-rover engineer who knew exactly how the RR 1884E was wired. I’ve seen too many DIYers swap a starter on these trucks only to find the real problem was a corroded inertia switch (item 23 on the electrical equipment list). Table on page 2 would have caught it in five minutes.

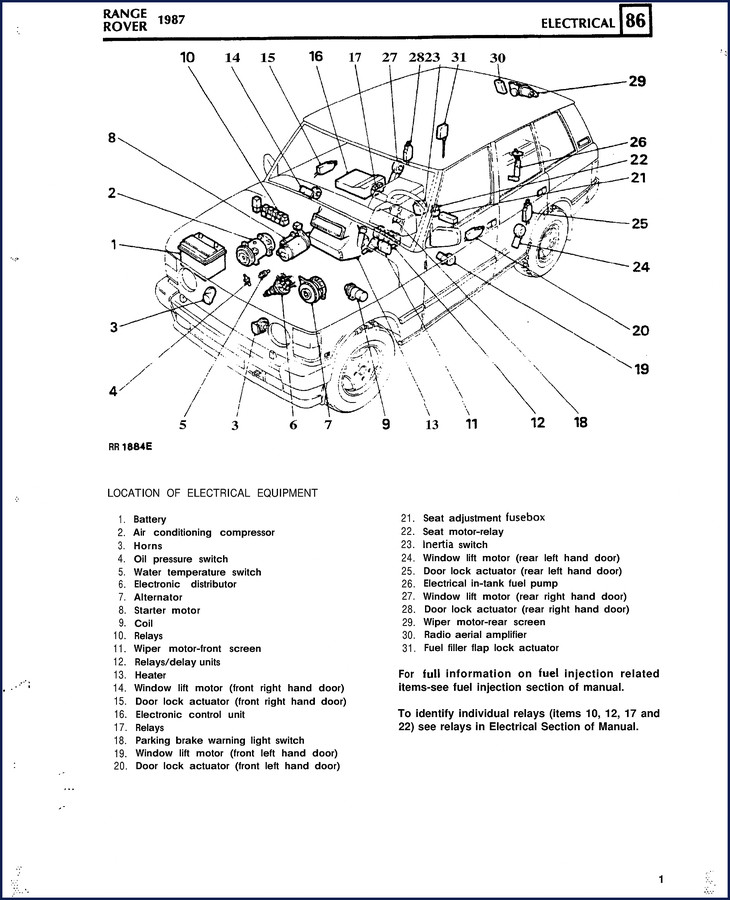

RR 1884E Electrical Equipment Locations

Page 1 gives you a numbered list of 31 components – from the battery and alternator all the way to the fuel filler flap lock actuator. Each item has a specific location: left-hand door lock actuator, rear screen wiper motor, electronic control unit (item 16). When you’re tracing a window lift fault on the right front door, you know exactly where the motor lives. No guessing which of the 20 relays under the dash does what – the manual identifies items 10, 12, 17, and 22 as specific relays and tells you to “see relays in Electrical Section of Manual” for full pinouts. That cross-reference is what makes a factory manual worth its weight in shop time.

Battery and Charging System Diagnostics

The symptom table on page 2 covers low state of charge, overcharging (burnt bulbs and frequent topping-up), insufficient illumination, lights flickering, and total failure. Each row gives a direct cure. Overcharging? “Fit new unit” – meaning the current voltage regulator. None of this “check the alternator” waffle. For a 1987 RR 1884E, the voltage regulator is a known weak point. If you see headlights that burn out after a week, you know exactly where to start. The manual also lists fan belt breakage as a cause for both undercharging and no lights – a simple visual check that amateurs often skip.

Starter System: What the Manual Tells You

Page 3 gets into starter motor troubles – lacks power or fails to turn. Six possible causes: stiff engine (seized?), discharged battery, broken/loose starter circuit connections, greasy slip rings, worn brushes, brushes sticking in holders. If you’ve ever fought with a starter that only engages on the third try, you know brushes sticking is a common fault. The manual says to check brush tension and fit. That’s the kind of practical detail you won’t find in a generic wiring schematic. For anyone working on a manual transmission model, the starter circuit interacts with the clutch safety switch – understanding that path is critical. Check the Wikipedia entry on Manual Transmission for how the gearbox connects to the starter inhibit function – but never trust an aftermarket pinout. This manual gives you the factory colours.

3 Reasons to Stick with OEM Documentation

First, the wiring diagrams are drawn to the actual vehicle – not a generic 1980s Rover. Second, the fault diagnosis tables use real symptoms that technicians reported during development. Third, the component location list (page 1) matches the exact harness routing. I’ve had customers bring in “reproduction” manuals that showed the battery on the wrong side. That costs billable hours. If you need related material, check the Land Rover Freelander Owner’s Guide Softback Hardback for a later model’s owner-level info, or the Rover 200 Series 1999 Workshop Manual – Section: Wiring Diagrams for a different platform but same era Land-rover logic. For the V8 engine family, the Land-Rover 3.5 3.9 4.2 V8 1996 Overhaul Manual – Factory Specs covers engine mechanicals – but electrical troubleshooting still requires this specific 1987 RR 1884E manual.

How This Manual Fits Your Shop

Whether you’re a home garage enthusiast who bought a project Rover or a pro tackling an aging RR 1884E, this 146-page book lives on your workbench. It covers the entire electrical system – from the electronic distributor (item 6) to the electronic control unit (item 16) and all the relays. The manual was published in 1987, so it’s the correct vintage for first-generation Range Rover Classic models. No later revisions that changed pins. If you’re working on a manual transmission variant, the starter circuit section references the clutch switch – and you can cross-reference the Manual Transmission article on Wikipedia for the mechanical interface. But the manual itself gives you everything you need to diagnose and fix without guesswork.

FAQ

Does this manual cover the fuel injection system?

It references the fuel injection section briefly on page 1, noting that for full information on fuel injection related items you should see the fuel injection section of the manual. This specific manual focuses on electrical troubleshooting, not engine mechanicals or fuel injection tuning. You’ll get the fuel pump location (item 26, electrical in-tank fuel pump) and its circuit, but not the injection ECU logic. That’s a separate manual.

What torque specifications are included?

This is a troubleshooting manual, not a service repair manual. Torque values for engine internals, suspension, or drivetrain are not listed. The manual deals with electrical system diagnostics – wire crimps, connector checks, relay testing. For torque specs on the RR 1884E, you’d need the factory service manual.

Is this the same as a Haynes or Chilton manual?

No. Haynes and Chilton are aftermarket compilations that often merge data from multiple years. This Land-rover factory manual was written for the 1987 RR 1884E only. The fault diagnosis tables are original – not rewritten by a freelance writer. If you want to fix the window lift on the rear right door, you get the exact location (item 27) and the correct relay. Aftermarket books routinely miss delay units and the inertia switch.

Can I use this for a 1988 RR 1884E?

It will help, but the 1987 version may have different relay configurations. The component locations are likely the same, but wiring colours and the electronic control unit could vary. Always verify against your actual vehicle production date. For a 1988, you would want the 1988 troubleshooting manual. This manual is model-specific to 1987.

Access the Factory Manual and get the diagnostic data that 146 pages of Land-rover engineering intended. Your RR 1884E will tell you what’s wrong – but only if you’re reading from the right script.
