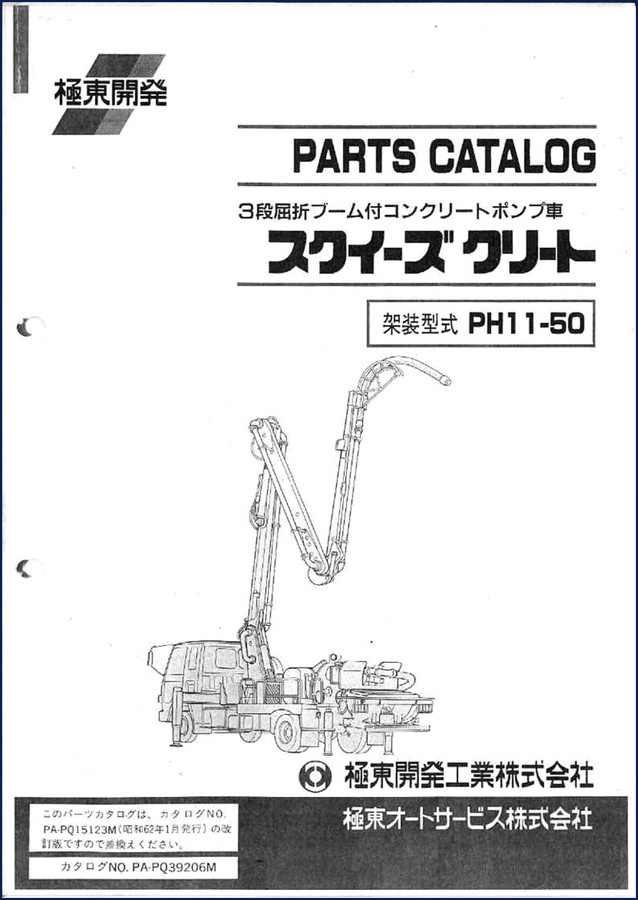

Kyokuto Kaihatsu PH11-50 Parts Catalog

If you’ve ever tried to order a replacement part for a Japanese concrete pump using a cross-reference list from some aftermarket site, you know the drill. You get a box with something that looks close, doesn’t bolt up, and you’re down a day. I’ve seen it happen in my shop. That’s why I only trust the factory book. This Kyokuto Kaihatsu PH11-50 Parts Catalog is the original OEM document—201 pages of exploded views, assembly numbers, and part numbers that match what came from the factory. No translation errors, no generic substitutes.

Parts Catalog Structure: What You Get in 201 Pages

The manual is broken down by major assemblies. The table of contents (page 1) lists the catalog revision—this is the updated version superseding PA-PQ15123M, dated Showa 62 (1987). Each section groups parts by function: the pump unit, boom cylinders, turret, outriggers, and the squeeze-crete system. Part numbers follow the PH11-50 chassis. You won’t find a single part number that doesn’t trace back to a Kyokuto Kaihatsu drawing. Page 3 gives you a full illustrated index so you can jump straight to the assembly you need without flipping through every page.

Identifying Pump and Boom Components by Assembly Number

Look at the OCR excerpt: it lists assemblies like “3段屈折ブーム付コンクリートポンプ車” (three-stage articulated boom concrete pump). Under that, sub-assemblies are numbered: 1 through 82. Each assembly has a specific part number suffix. For example, assembly 57-1 is labeled “MÜÜASSY(S136A)(9401” – that’s the boom cylinder assembly for a specific production run. Without this catalog, you’d be ordering a generic hydraulic cylinder and hoping it fits. With the factory number, you call the dealer and get the correct seal kit or rod. Period.

Why Factory Parts Numbers Matter More Than Cross-References

I’ve torqued enough bolts to know that aftermarket parts often use different thread pitches or seal profiles. A cross-reference might say “replaces OEM 12345” but the actual dimensions are off by 0.5 mm. On a concrete pump running 3000 psi, that leak costs you a cleanup and a lost day. This catalog gives you the exact Kyokuto Kaihatsu part number. You order that, you get the right o-ring, the right bearing, the right bolt length. No time wasted on returns.

For related equipment, check the Kyokuto Kaihatsu PY21-50 Parts Catalog – 240 Pages of Factory Specs if you run a different chassis. The format is identical, and the part numbering system carries over.

Using the Illustrated Index: Page 3 Breakdown

Page 3 of the catalog is a master drawing with callouts. Every assembly number on that page corresponds to a later section with a detailed exploded view and a parts list. Need the swing cylinder seals? Find number 62 on the index, flip to the page for “2ND№7y’j7$*ASSY”, and you get the complete seal kit part number. The index also shows A-arrow views for components that aren’t visible from standard angles. If you’ve ever struggled to find a part hidden behind the boom pivot, this page saves you the headache.

For another model with similar architecture, see the Kyokuto PY120-36 Parts Catalog. Same factory drawings, different chassis dimensions.

Audience: Who Needs This PH11-50 Parts Catalog

This is for the mechanic who has a PH11-50 in the yard and needs to rebuild the pumping system, or for the shop owner who wants to stock correct parts for their concrete pump fleet. It’s also for the DIY owner-operator who does his own maintenance and refuses to pay dealer markup on wrong parts. If you’re working on a squeeze-crete pump with a three-stage boom, you need factory part numbers. Period. Avoid the trap of “universal” seal kits—they aren’t universal on Japanese equipment.

If your machine is a newer variant, the Kyokuto PY21-51A Concrete Pump Parts Catalog covers the later generation with updated boom control valves.

For background on the importance of correct maintenance documentation in heavy equipment, refer to the Automotive Industry Overview on general standards for repair documentation. The same principles apply to construction machinery: wrong specs cost time and money. Automotive Industry Overview highlights the emphasis on traceability, which is exactly what this catalog delivers.

FAQ

Does this catalog include torque specs for the boom cylinder bolts?

No. This is a parts catalog, not a service manual. Torque values appear in the factory service manual for the PH11-50. You’ll need that document separately.

Can I use the part numbers in this catalog to order from a Kyokuto dealer today?

Yes, provided the dealer still supports the PH11-50. Some parts may be superseded, but the original number is the starting point. The catalog shows the original part number as designed. If the dealer says superseded, give them this number and they can look up the current replacement. Without this catalog, you’re guessing. With it, you have the exact reference the parts system was built on. That’s the difference between a one-hour phone call and a three-minute one.

Stop wasting time on aftermarket part numbers that don’t fit. Access the Factory Manual today and get the correct Kyokuto Kaihatsu PH11-50 part numbers in your hands. Your pump will thank you.
