Hanwoo HCP40.15X Parts Catalog – What You Need on the Bench

I’ve spent 28 years turning wrenches, and I can tell you the fastest way to turn a two-hour job into a two-day headache is ordering the wrong part. If you’re working on a Hanwoo HCP40.15X concrete pump truck, you don’t need guesses. You need the Hanwoo HCP40.15X Parts Catalog – 351 pages of factory-original diagrams, part numbers, and ordering codes. This isn’t a repair manual; it’s the parts bible that tells you exactly which seal, bolt, or valve goes where.

What This Parts Catalog Covers for the HCP40.15X

The catalog breaks the entire concrete pump truck into exploded-view assemblies. You get key numbers that reference each part, the Hanwoo part number, description, and quantity per unit. It also shows first and last input serial numbers so you know which revision applies to your machine. Need the initial valve block? The catalog lists it under BLOCK; INITIAL VALVE with the exact part number. No cross-referencing third-party listings that might be close but won’t fit.

Read the Parts List Like a Pro

The foreword explains how to order: you give them the model, product serial (stamped on the frame), engine serial if CBU, the part number, and quantity. Follow that, and the parts counter won’t send you a wrong item. The ‘Key No.’ on each illustration matches the part number in the table. I’ve seen guys skip reading the notes and end up with bolts that say M.T.H on the head – those are special bolts, not hardware-store grade. The catalog warns you about that on the foreword page. Pay attention.

351 Pages of OEM Part Data – No Fillers

Every page is pure specification. Exploded views, hydraulic component breakdowns, pump sections, piping, frame mounts. Because it’s a parts catalog, you won’t find torque specs or service intervals here – that’s what the Hanwoo HCP40.15X service manual is for. But if you need to find a wear plate, a piston cup, or a seal kit for the concrete pump, this is where you get the number that matches the factory bin. Automotive Industry Overview.

Avoiding Common Ordering Mistakes – Start Here

Most returns I see come from people who ordered by description alone – “send me a boom pivot pin” – and got one that’s 2 mm too short. The catalog gives you the part number, and that number ties to the engineering drawing. If you’re rebuilding a pump section, cross-reference every seal and O-ring against the “Q’ty” column to make sure your order covers the full assembly. The index at the back lists every part number alphabetically, so you don’t have to flip through all 351 pages.

OEM Documentation: Why It Matters

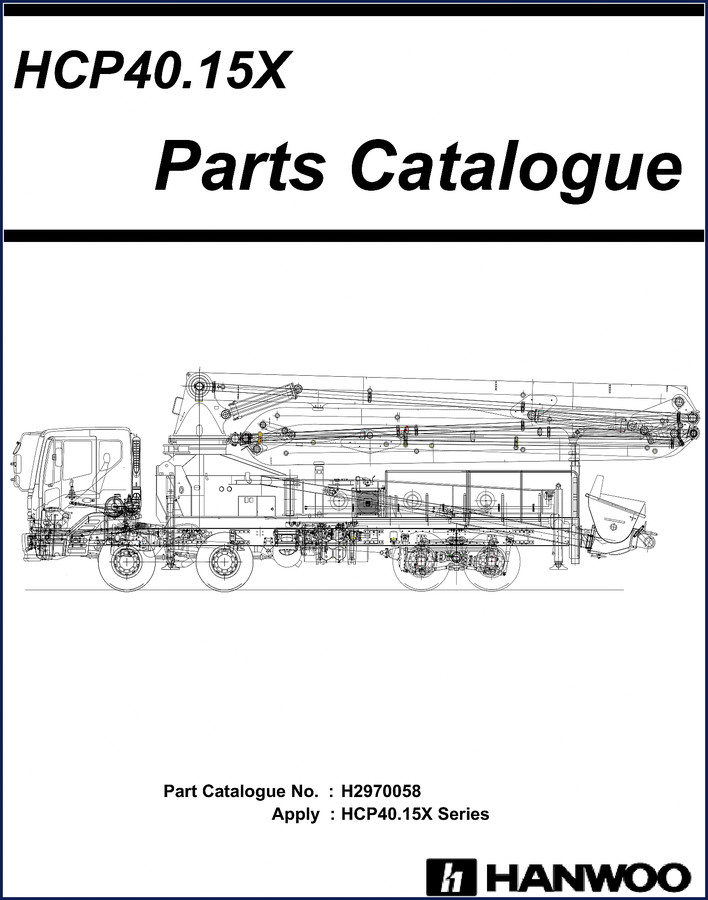

Aftermarket parts catalogs often combine multiple model years or skip the “last input” serial numbers. That costs you time. This Hanwoo catalog is factory-issued, part number H2970058, and it applies specifically to the HCP40.15X series. The foreword says revised lists supersede earlier ones – so if you have this, you’re working from the current standard. Pair it with related OEM publications like the Massey-Harris-Ferguson FF 30 GS 1957 Parts Catalog | OEM Fastener Guide for fastener specs, or the Futura FC200-FC400 Parts Catalog – OEM Wear Parts Specs for pump wear items, or the Longagribusiness 410 DTC, 450, 450 DTC, 470 DTC, 530 DTC 2002 Parts Catalog for engine components. Each one is raw factory data.

If you’re a shop owner or a mobile mechanic, this catalog saves you the phone call to the dealer parts counter. You look up the number, you order it, you get the right piece. No back-and-forth, no “this should fit”. The entire Automotive Industry Overview runs on precision – and this catalog delivers that precision for the Hanwoo HCP40.15X.

Frequently Asked Questions

Does this catalog include torque specs for the concrete pump?

No. This is a parts catalog. It lists part numbers, quantities, and serial number ranges. Torque values and repair procedures are in the factory service manual.

How do I know if my machine’s serial number is covered?

Check the “First input” and “Last input” columns next to each part. If your machine’s serial falls between those numbers, that part applies. The catalog covers the HCP40.15X series.

What does “M.T.H” mean on bolt heads?

“M.T.H” indicates a special high-strength bolt made for Hanwoo. Do not substitute with standard hardware. The parts catalog lists the official part number for those bolts.

Can I use this to order parts for an older HCP40.15X that had a previous owner modify it?

The catalog gives you the factory configuration. If the machine was modified with non-Hanwoo parts, you’ll need to trace back to original assemblies. For unmodified pumps, the catalog is accurate. If the frame serial is missing, check the engine block – the foreword says it’s marked there for CBU units.

You don’t have time to play guessing games with parts. Get the factory reference. Access the Factory Manual from AutoRepairManuals and keep it in your toolbox or tablet – next time a Hanwoo HCP40.15X rolls in, you’ll know exactly which part to order.
