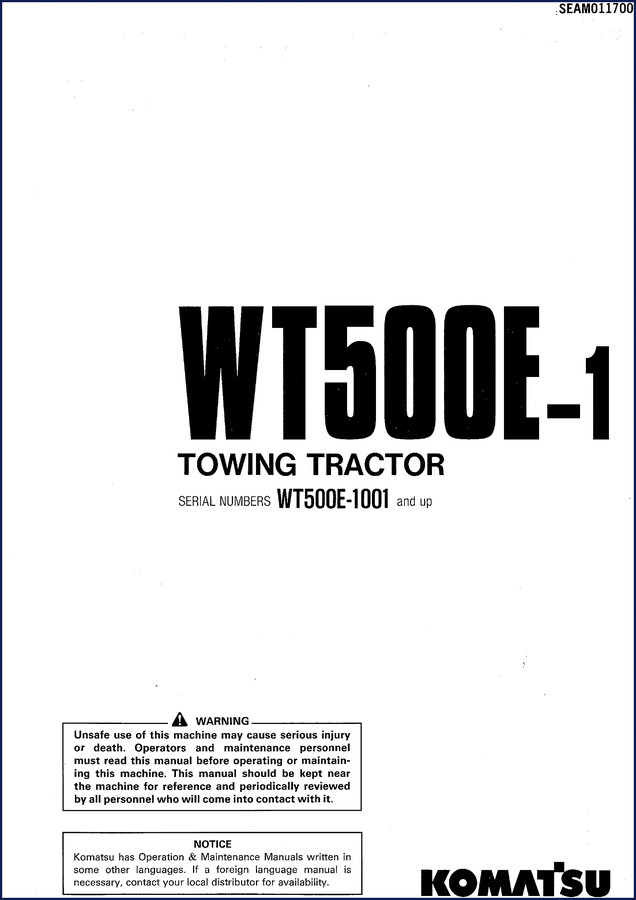

Komatsu WT500E-1 Operators Manual

If you are running a shop that touches a Komatsu WT500E-1 towing tractor, you already know that guessing costs billable hours and gets people hurt. I have seen more than a few aftermarket “manuals” that look like they were photocopied on a wet Tuesday – wrong fuse ratings, missing torque values, safety warnings that read like a grocery list. This is the real thing. 182 pages of factory-issued Operators Manual, straight from Komatsu. No reprint, no third-party scramble. You get the same document the dealership techs use. That matters when you are pulling a 50,000-lb load and someone’s life depends on the parking brake adjustment.

Safety Information: The Section You Cannot Skip

Most accidents happen because somebody skimmed the safety chapter. Komatsu puts it right up front – page 0-2. The manual covers general precautions, pre-start checks, battery handling, towing procedures, and the exact location of every safety label on the machine. If you have a technician who thinks “it’s just a tow tractor,” have them read page 1-1 through 1-12. That section alone can save a lawsuit. The manual explicitly warns against using the machine for unintended purposes and tells you what to do if the machine was imported from another country. This is not fluff; this is liability reduction.

182 Pages of Factory Specs – What’s Inside?

The table of contents reads like a checklist for a thorough pre-delivery inspection. You get the full machine overview, breaking-in procedure, location of serial number plates (both machine and engine), and a table to record your distributor info. The Engine serial number position is detailed in section 4.2 – critical when ordering parts. Then the manual dives into operation: names of components for both front-mounted and rear-mounted operator compartments, explanation of every switch, lever, pedal, and the machine monitor cluster gauge. Section 12.8 lists fuse capacity and circuit names – no more guessing which fuse handles the backup alarm. Section 12.10 covers the air conditioner system. For towing operations, section 12.6 shows the towing pin location and procedure. The operational checks after starting the engine (13.3) include specific gauge readings and warning light sequences. You also get cold weather operation guidelines, long-term storage procedures, and troubleshooting for dead batteries, fuel starvation, and towing the machine.

Does This Manual Cover the Engine?

Yes, but not in the way a service manual does. This operators manual tells you how to start, run, and shut down the engine safely. It includes the daily checks before starting (section 13.1) and what to watch for after start (13.2). You get fuel and coolant specifications based on ambient temperature (section 21), and the standard tightening torques for bolts and nuts (section 22.2). It does not contain internal engine rebuild specs – that is a different manual. For the torque values you need for routine maintenance, page 22 shows the table. If you need the fuel system charge pressure or injector timing, this manual won’t have it. But for the operator and the maintenance tech doing daily and weekly checks, this is the document you need on the seat box.

Torque Specs and Bolt Tightening – Get It Right

Section 22.1 introduces the necessary tools – wrenches, torque wrench, socket sizes. Section 22.2 is the torque list. Komatsu does not leave margins for error. If you are replacing a wheel nut, you need the value from that table. Over-torque a bolt on a towing hitch and you risk failure. Under-torque and it loosens on the job. I have seen both happen. The manual also includes standard tightening torques for both bolts and nuts, so you can apply the correct value to any fastener that does not have a specific callout elsewhere. This is OEM data, not a guess from some forum. Use it.

Maintenance Schedule: Why 4000 Hours Matters

The maintenance schedule chart (section 24.1) breaks service intervals into 50, 100, 250, 500, 1000, 2000, and 4000 hours. Each interval lists checks and replacements for fluids, filters, belts, tires, and safety-critical parts. Section 23 is the periodic replacement of safety critical parts – these are the components that can fail catastrophically. The manual also covers statutory inspection requirements (section 26). If your shop ignores the 4000-hour service on a machine that tows heavy aircraft or equipment, you are gambling with lives. The manual tells you exactly what to change and when. No ambiguity.

Source Validity: OEM vs Aftermarket

Every page of this manual comes from the original Komatsu PDF. The bookmarks match the printed factory manual. Compare that to a third-party access that may have missing pages, blurred diagrams, or generic torque values that do not apply to your specific model. I have seen aftermarket manuals list incorrect battery polarity and wrong fuse amperages. This one has the OEM safety information, the official Komatsu warnings, and the serial number tables. If you need to prove to an inspector that your maintenance follows factory guidelines, this document holds up. The manual also includes a table to enter the serial number and distributor contact – a small touch that shop owners appreciate when tracking multiple machines.

Frequently Asked Questions

Does this manual apply to all WT500E-1 serial numbers?

It covers serial numbers WT500E-1001 and up, as stated on page 1. Machines earlier than 1001 may have different specs – verify with Komatsu.

Can I use this manual for the engine overhaul?

No. This is an operators manual, not a service manual. It covers operation, daily maintenance, and safety. For internal engine repair, get the appropriate workshop manual.

What torque values are included?

Standard tightening torques for bolts and nuts are listed in section 22.2. Specific engine or chassis torque values are not detailed – those appear in the service manual.

Where do I find the fuse capacities for the backup alarm?

Section 12.8 lists fuse capacity and circuit name. It identifies which fuse protects the backup alarm circuit. Check the table – do not swap fuses by guess.
