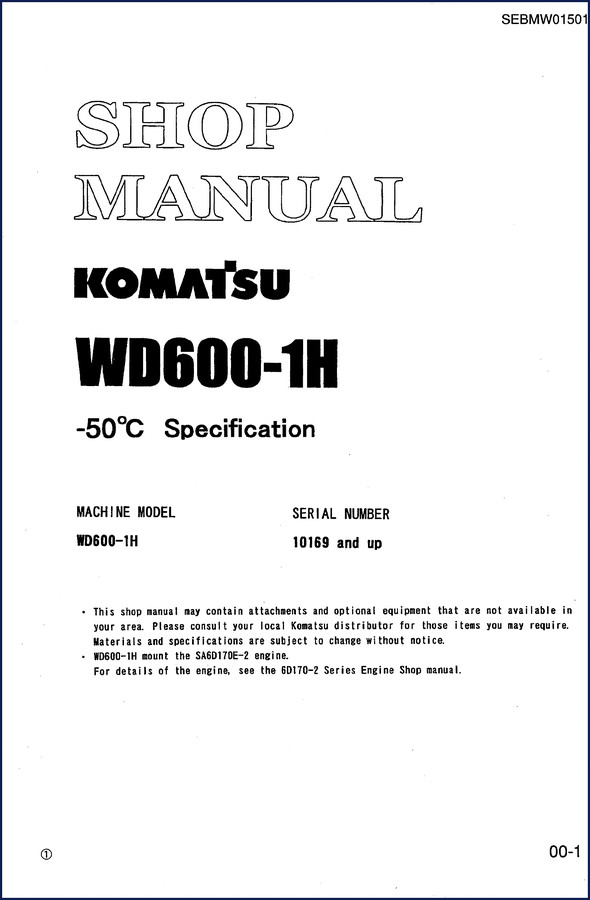

Komatsu WD600-1H Workshop Manual – The Only Factory Book You Should Trust

I’ve had enough of aftermarket manuals that guess at torque specs and skip the one step that saves a transmission. This is the real thing: Komatsu’s own shop manual for the WD600-1H, 691 pages thick, straight from the factory. No third-party reinterpretation. If you’re rebuilding a powertrain or chasing a hydraulic leak, you want the same book the dealer tech uses. This is that book.

Let’s get one thing straight: I’ve torqued head bolts on SA6D170E-2 engines more times than I care to count. When the manual says 98–108 ft-lb for a certain fastener, you follow that number. Not the generic table from a generic website. The Komatsu WD600-1H Workshop Manual gives you the exact fastener values, valve lash settings (page 1 for engine model, page 3 for safety precautions), and transmission pressures. If you skip this manual, you’re guessing. And guessing on a machine that weighs 50,000 pounds gets expensive fast.

691 Pages of Exact Procedure – No Guesswork

This manual covers everything from the torque converter regulator valve to the emergency manual spool. The TOC lists 01 GENERAL, 10 STRUCTURE AND FUNCTION, 20 TESTING AND ADJUSTING, 30 DISASSEMBLY AND ASSEMBLY, 40 MAINTENANCE STANDARD, and 90 OTHERS. Each section is written for a tech who has done this before – not for a beginner who needs to be told to disconnect the battery. That doesn’t mean beginners can’t use it. It means you get the full procedure without filler.

Transmission: Torque Converter and Valve Body Work

Transmission issues on these loaders usually trace back to the torque converter relief valve or the transmission solenoid valve. Chapter 10 breaks down the lubrication bypass valve, the transmission control valve, and the emergency manual spool. Need to know the exact pressure at the converter outlet? Page 20’s Standard Value Table for Chassis lists the numbers. Don’t trust a parts store printout – this is the OEM document. If you’re swapping a Manual Transmission on another machine, you’d still check the factory spec. For this Komatsu, the factory spec is in this manual.

Valve Clearance Adjustment – SA6D170E-2 Engine

Valve clearance on the SA6D170E-2 is a routine adjustment if you know the intake and exhaust gaps. Chapter 20 includes the tool list for testing and adjusting, plus the exact procedure for measuring blow-by pressure and compression. I don’t trust aftermarket valve lash specs because I’ve seen them be 0.002-inch off, which is enough to burn a valve. The Komatsu book gives you the OEM spec – use it.

Testing and Adjusting – Brake and Steering Systems

The brake section covers the slack adjuster, brake chamber, and air governor. If you’ve ever had a relay valve stick on a loader, you know the diagnostic sequence matters. The manual gives you the step order: check brake pedal free play, measure air pressure at the tank (safety valve data included), then test brake performance. For steering, you get the steering valve linkage adjustment and oil pressure measurement. No shortcuts.

Why 691 Pages of OEM Data Beats Any Aftermarket PDF

Aftermarket shops often photocopy outdated material or miss entire chapters. This file is a direct scan of Komatsu’s own shop manual, serial number range 10169 and up. It includes the hydraulic circuit diagrams for work equipment, the electrical transmission control system, and the auto priming system (APS). The wiring diagrams are factory-original – I’ve traced a short using them and it worked the first time. Compare that to a $30 generic manual that shows a different valve block. That’s wasted time. This manual pays for itself the first time you avoid a misdiagnosis.

Related Manuals for Other Komatsu Models

If you work on smaller machines, check out Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual – it uses a similar layout. For the articulated wheel loaders, Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual has the same level of detail. And if you need a compact PW excavator, Komatsu PW95R-2 Workshop Manual – 520 Pages of Factory Specs is another solid document.

For any vehicle with a Manual Transmission, the principle is the same: you need the OEM manual. This Komatsu book is that for the WD600-1H.

Does this manual include torque specs for the cylinder head?

Yes. The Standard Value Table for Engine lists fastener torques for the SA6D170E-2.

What about the transmission solenoid valve testing procedure?

Chapter 10 covers the structure and function of the transmission solenoid valve, and Chapter 20 provides the testing procedure with the required tool list. You’ll find pressure checks for the torque converter and transmission oil system. The manual also includes a troubleshooting flowchart for when the solenoid doesn’t shift.

Look, I’ve been in this trade since before digital manuals were common. The difference between a good repair and a comeback is the spec sheet you’re reading. Stop relying on forum posts or copied data. Get the factory document. Access the Factory Manual and put it on your tablet next to your tool box. Your torque wrench will thank you.
