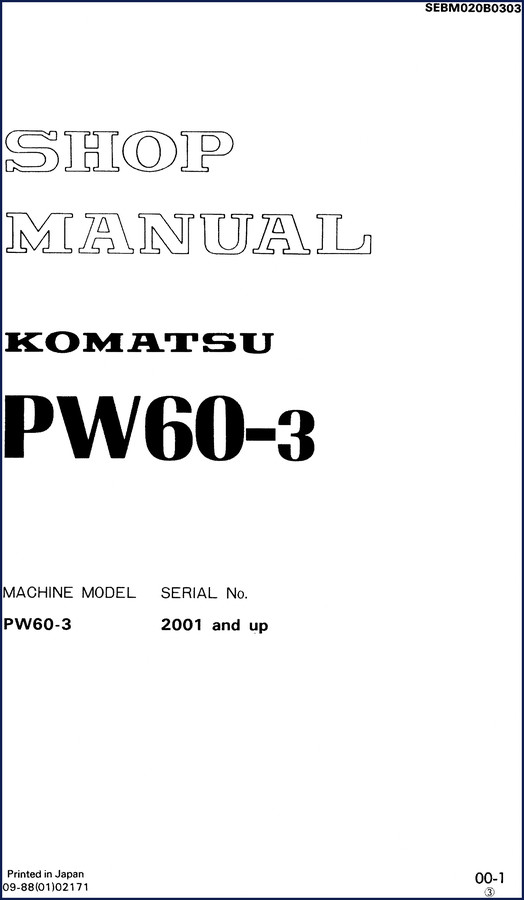

Komatsu PW60-3 Workshop Manual – 355 Pages of Factory Repair Specs

If you’ve ever chased a fuel injection timing spec on a Komatsu PW60-3 through a third-party PDF and ended up with a engine that won’t start, you know the pain. That’s why I only use OEM manuals. This Komatsu PW60-3 Workshop Manual runs 355 pages of factory-issued procedures, no guesswork allowed. It covers serial numbers 2001 and up, printed by Komatsu themselves.

Engine Section: Valve Clearance and Fuel Injection Timing

The engine chapter (section 10) starts with structure and function—the auto-deceleration system, engine control—then jumps straight into testing and adjusting. On page 12-1 you get the full testing data table: compression pressure limits, blow-by pressure specs, and the tool list. Adjusting valve clearance? It’s right there with the exact sequence and feeler gauge sizes. Fuel injection timing adjustment follows the same no-nonsense steps. If you’re using an aftermarket manual for this, you’re risking a bent pushrod. Don’t.

Power Train Systems: Transmission and Swing Motor

Section 20 covers the power train, including the travel system, center swivel joint, and the transmission. The schematic diagrams on pages 21-4 through 21-7 show the hydraulic circuit for both travel and swing. For the swing motor and brake valve assembly, the manual walks you through removal, installation, disassembly, and assembly. Need the forward-reverse selector lever adjustment? See section 22. The testing and adjusting data for the travel speed selector lever is exactly what you need to avoid a mis-shift. This is the kind of detail you get when you buy OEM—none of that “tighten until snug” nonsense. For related platforms, check out the Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual or the Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual. Both follow the same factory layout.

Steering and Brake: Bleeding Air and Adjusting Toe-In

Section 40 dives into the steering and brake system. The steering valve and main relief valve are shown schematically on page 41-5. Bleeding air from the brake circuit is a specific procedure in section 42—do it wrong and you get a spongy pedal that will cost you time. The manual also covers adjusting the parking brake rod, maximum steering angle for the front axle, and toe-in adjustment. I’ve seen guys skip the toe-in step and chew up tires in 200 hours. Don’t be that guy. Pair this manual with a Komatsu PW95R-2 Workshop Manual – 520 Pages of Factory Specs if you work on the larger frame machines.

Why You Need OEM Documentation for the PW60-3

I don’t care how good a third-party reprint looks—it’s missing revision marks, torque updates, and small details like the exact bleeding sequence for the brake lock valve. This manual has a list of revised pages starting on page 00-1, with marks indicating which pages are new, replaced, or deleted. That’s something you only get from Komatsu. The Testing and Adjusting Tool List at the front of each section tells you exactly what special tools you need. No more guessing which puller fits. If you’re serious about not wasting billable hours, use the factory book.

355 Pages of Verified Factory Data

The table of contents covers everything from the engine (10) through the electrical system (80). The power train maintenance standard (section 24) gives you wear limits for the travel brake valve, transmission, swing machinery, and swing circle. The steering and brake maintenance standard (section 44) includes the wheel brake and parking brake cylinder tolerances. Hydraulic system testing (section 62) includes the charge pressure specs. For reference on manual transmission basics, you can look at Manual Transmission on Wikipedia, but for the PW60-3 specifics, this manual is your only source. Same for Manual Transmission—the factory schematic is what matters.

Does the manual include torque specifications for all bolts?

Yes. Every critical fastener—cylinder head bolts, main bearing caps, swing motor mounting—has a specific torque value listed in the Testing and Adjusting chapter for each section.

Can I use this manual for a PW60-3 built before 2001?

The manual states it covers serial numbers 2001 and up. If your machine has a serial number starting before 2001, you may need a different edition. The revision marks on the pages indicate changes that may not apply to earlier builds. Check the serial number plate against the manual’s covered range.

Is this a physical book or a digital access?

Digital access. You can print it yourself or keep it on a tablet in the shop. The PDF is searchable, which saves time when you need to find a spec fast. No flimsy paper to get oil-stained.

What if I need help reading a hydraulic schematic?

The manual explains the schematic symbols in the Structure and Function sections, but if you’re new to hydraulic diagrams, you might supplement with a basic hydraulics text. The manual itself is complete—no extra classes needed.

Stop chasing specs from forum posts and photocopies. Get the real Komatsu PW60-3 data straight from the source. Access the Factory Manual now and have the exact procedure on your bench before you pull the first bolt.
