Komatsu PW150-1 Operators Manual – Real OEM Content for the Workbench

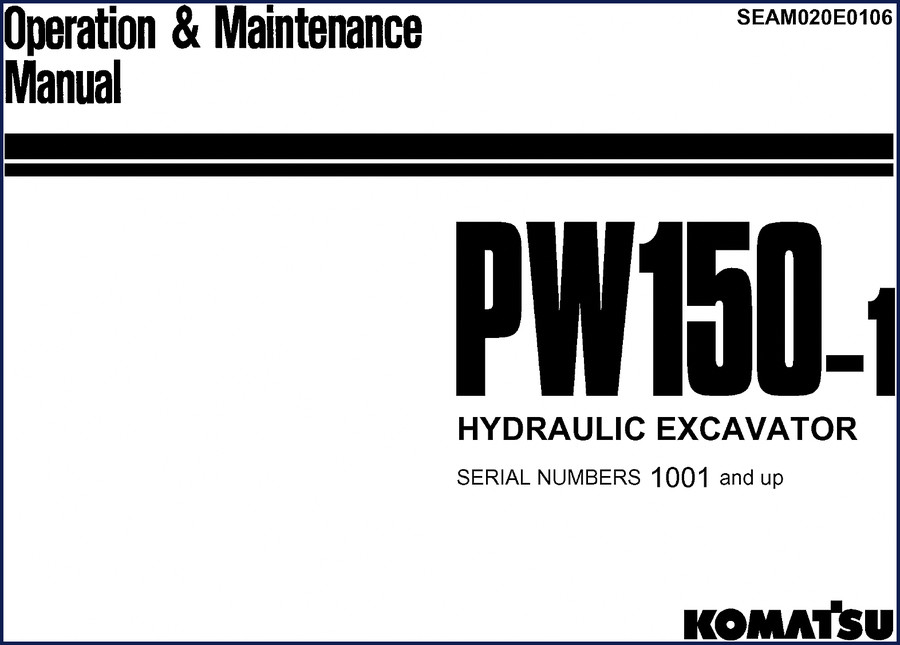

I’ve seen too many excavators sidelined because someone skipped the break-in period or used the wrong oil. That’s why I run a shop where the first thing we do with any new-to-us machine is pull the factory manual. This Komatsu PW150-1 Operators Manual (167 pages, OEM print) is exactly what you need if you’re wrenching on a PW150-1 hydraulic excavator – whether you’re a home-garage guy who bought a used machine or a shop owner training a new operator.

Komatsu built these machines tough, but toughness doesn’t fix a neglected service interval. The manual covers everything from the day you take delivery through every 50-hour, 100-hour, 250-hour, 500-hour, 1000-hour, 2000-hour, and 4000-hour service. It also includes the “When Required” section for those jobs that pop up between schedules. No guessing, no third-party summaries – this is the same binder that sat in the cab when the machine was new.

SAFETY HINTS: Why This Manual Starts with Warnings

Page 4 opens with SAFETY HINTS. That’s not filler. Komatsu marks safety precautions with an ▲ symbol and technical notes with ★. You’ll find cautions about hydraulic oil temperature, battery gas explosive potential, and proper lifting techniques for the boom. I’ve seen what happens when someone bypasses those – a ruptured hose at 3000 psi doesn’t care how many years you’ve been turning wrenches. Read that section before you even crank the engine.

BREAKING IN YOUR NEW MACHINE – The First 100 Hours

Page 3 lays out the break-in period bluntly: let the engine idle five minutes after start, avoid heavy loads or high RPM, and check oil filter elements for debris after replacement. That last one catches a lot of guys – if you find metal in the filter after the first change, you need to investigate before you keep running. The manual even tells you to flush the radiator with clean water if the machine arrived dry. That’s the kind of specific step that prevents a blown head gasket later.

Periodic Maintenance: Every 50, 100, and 250 Hours

The table of contents lists EVERY 50 HOURS SERVICE, EVERY 100 HOURS SERVICE, and EVERY 250 HOURS SERVICE as separate sections. Each one tells you exactly which grease fittings to hit, which fluid levels to check, and which filters to replace. For example, at 50 hours you’re checking the engine oil level, coolant level, and hydraulic oil level. At 100 hours you grease the bucket linkage pins. At 250 hours you replace the fuel filter. If you’re a DIY mechanic running a small excavator, these intervals are your best insurance against premature wear on the swing gear or travel motors.

Cold Weather Operation and Transportation – What the Manual Covers

The manual includes a dedicated COLD WEATHER OPERATION section – crucial if you’re working in the north during winter. It covers battery care, fuel gelling, and hydraulic oil viscosity changes. There’s also a TRANSPORTATION chapter that tells you how to secure the boom, counterweight, and travel pedals for hauling. I’ve seen guys lose a machine off a trailer because they didn’t follow the tie-down points shown in the factory illustration. That’s a $50,000 mistake you can avoid with this PDF.

Why You Need OEM Documentation – Not a Third-Party Summary

Aftermarket manuals for excavators often skip the little details, like which side of the dozer blade to grease first or how to check the travel posture before loading. This Komatsu PW150-1 Operators Manual is a direct scan from the original factory binder, including the FOREWORD that explains why Komatsu expects you to read it thoroughly before operating. The page numbers match the original – if I tell you to open to page 2 for the foreword, that’s exactly where you’ll find it. No reprints, no edited-out warnings, no generic diagrams.

If you’re also working on other Komatsu models, check out the Komatsu PW150-1 Shop Manual for deeper repair procedures, or the Komatsu WH609-1E0 – WH716-1E0 Operators Manual | 272 Pages OEM and Komatsu WD900-3 2004 Operators Manual – Factory OEM Specs for similar machines.

For additional background on transmission systems in heavy equipment, see the Manual Transmission article, and if you’re comparing gearbox designs, the Manual Transmission page provides useful theory. But for this specific machine, stick with the factory book.

FAQ – Common Questions About This Manual

What models does this manual cover?

Specifically the Komatsu PW150-1 Hydraulic Excavator with serial numbers 1001 and up.

Is this a service manual or an operator’s manual?

This is an Operators Manual – it covers safe operation, daily checks, periodic maintenance, adjustment, troubleshooting, and storage. It does not cover engine overhaul, hydraulic pump rebuild, or transmission disassembly. For those, you need the separate Shop Manual (which we also carry – see the link above). The operator manual gives you everything required to keep the machine running reliably between major repairs.

Does it include torque specs?

Yes, for components like wheel nuts (common on the PW150-1’s tire handling section) and some adjustment procedures. The ADJUSTMENT chapter lists specific torque values for track tension and blade alignment. For internal engine fasteners, you’ll need the shop manual.

How do I access the file after purchase?

Your access link is delivered immediately after payment. The file is a searchable PDF with bookmarks that match the printed table of contents – jump to any section in seconds.

If you own or work on a PW150-1, stop relying on memory or a grease-smudged copy of the quick reference card. Access the Factory Manual now and put the real specs on your tablet or print a clean copy for the job box. You’ll thank yourself the first time a hydraulic hose blows at 2 PM on a Friday.
