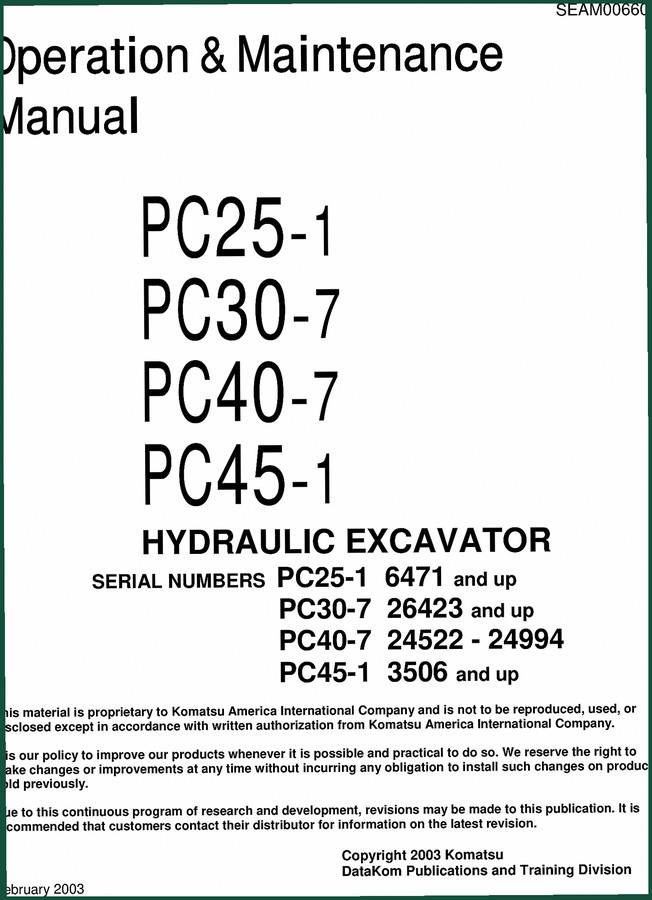

Komatsu PC25-1, PC30-7, PC40-7, PC45-1 2003 Operators Manual

You are looking at the 2003 Komatsu Operators Manual for the PC25-1, PC30-7, PC40-7, and PC45-1 hydraulic excavators. 213 pages of OEM documentation, not some aftermarket photocopy that fades after one coffee spill. This is the same binder that Komatsu shipped with the machine. If you are running one of these mini excavators, you need this on the workbench, not a PDF on your phone that you can’t read in the sun.

Safety Information: More Than a Warning Label

Every operator and mechanic I’ve seen get hurt ignored the safety section. This manual devotes sections 6 through 9 to precautions during operation and maintenance. Section 7 alone covers before starting the engine, operating, transporting, battery handling, towing, and using a bucket with hook. Section 8 tells you what to do before and during maintenance. If you are planning to lift the machine, read section 13.2 ‘Method of Lifting Machine’ – that is not a guess.

Operation Procedures: Starting, Stopping, and Swinging

Operators who skip the check before starting (section 12.1) are the ones who crack a block. Section 11 explains every control lever, pedal, and switch. The machine monitor (11.1) tells you what is happening. Section 12 walks you through starting the engine (12.2), moving off (12.4), steering (12.5), stopping (12.6), and swinging (12.7). Page 1 lists the serial number ranges for each model: PC25-1 6471 and up, PC30-7 26423 and up, PC40-7 24522-24994, PC45-1 3506 and up. Make sure your machine falls in range. Unlike a car with a Manual Transmission, this excavator uses hydraulic joysticks for steering.

Torque Specs and Fluid Capacities

Section 21 is what you came for. ‘Standard Tightening Torques for Bolts and Nuts’ on page 21 includes a torque list and necessary tools (21.1). Aftermarket manuals often skip the torque values or print generic numbers. This gives you Komatsu’s actual specs in foot-pounds. Section 20 covers fuel, coolant, and lubricants according to ambient temperature. Do not mix weights – read the chart.

Maintenance Schedule: 250-Hour Service and Beyond

The maintenance schedule chart in section 23.1 tells you when to do everything. Section 24.1 includes the initial 250 hours service: check engine valve clearance and adjust. Section 24.2 covers when-required tasks like cleaning the cooling system, draining water from the fuel tank, checking electric wirings, and adjusting track tension. If you use a hydraulic breaker, section 23.2 gives a different interval. This is not a suggestion – it is the factory schedule.

Why the Factory Operators Manual Beats Aftermarket Reprints

Aftermarket reprints often crop the images, skip the safety labels, and reprint old revisions. This is a genuine 2003 Komatsu publication. The serial number ranges are specific. The torque values are verified. If you need the full repair procedures, pair this with the Komatsu PC25-1 PC30-7 PC40-7 PC45-1 1996 Workshop Manual. For a different machine, check the Komatsu WH609-1E0 – WH716-1E0 Operators Manual | 272 Pages OEM. The Komatsu PC25-1 PC30-7 PC40-7 PC45-1 2003 Operators Manual is the document you see here.

What About the Engine?

The engine serial number plate location is in section 4.2. Section 3.3 covers breaking in the machine. Section 24.1 includes valve clearance adjustment at 250 hours. The engine oil level check is in section 24.3.2. This manual does not provide internal engine rebuilding steps – that is what a service manual is for. But for daily operation and maintenance, it has everything.

FAQ

Does this manual cover the PC45-1?

Yes. Serial numbers 3506 and up.

What torque specs are included?

Section 21, starting on page 21 of this 213-page operators manual, provides the factory standard tightening torques for bolts and nuts used on the PC25-1, PC30-7, PC40-7, and PC45-1. This is not a generic chart – each fastener grade and size has a specific torque value in foot-pounds. If you are rebuilding the undercarriage or attaching a bucket, using the wrong torque can strip threads or cause joint failure. The manual also includes a list of necessary tools in subsection 21.1. Aftermarket reprints often copy these numbers incorrectly or omit the tool list. With this OEM manual, you get the exact specifications Komatsu tested. Page 21 is where you go before you pick up a torque wrench.

Stop relying on memory or generic tables. Get the actual factory data. Access the Factory Manual from AutoRepairManuals. Put it on your bench and use it. And if you need to learn about a Manual Transmission for another vehicle, get the right manual.
