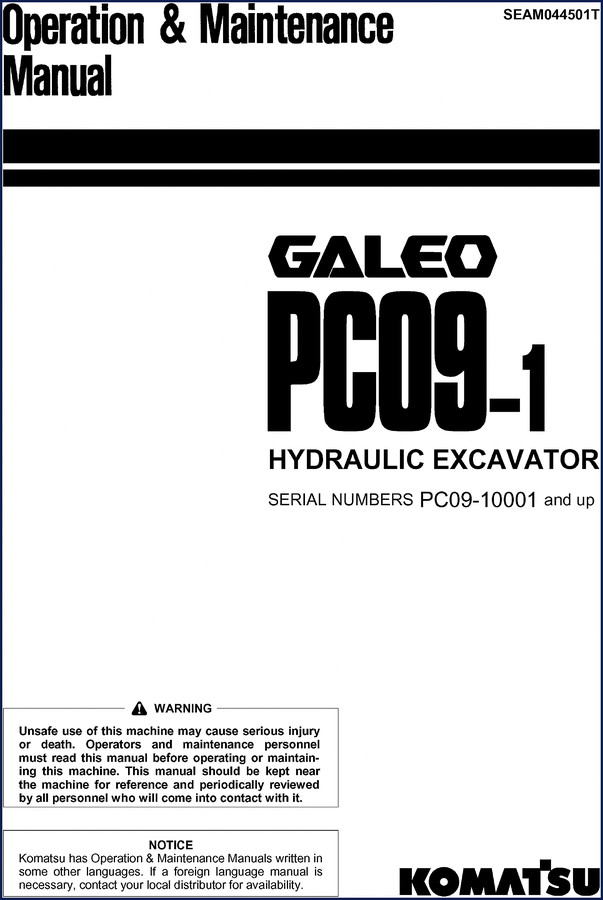

Komatsu PC09-1 2004 Operators Manual

If you own a Komatsu PC09-1 2004 Operators Manual, you already know that little excavator can get into tight spots. But if you’re running it without the factory book, you’re gambling with your machine and your safety. I’ve been turning wrenches for 28 years, and I’ve seen what happens when someone uses a third-party re-hash or a photocopy of a photocopy. A wrong starting procedure in cold weather can wipe out a glow plug system. A missed torque spec on the track adjuster can blow a grease seal. That’s why you get the real thing – 207 pages of Komatsu’s own words, laid out the way they intended.

What’s Inside This Operators Manual

This isn’t a repair manual – it’s the operator’s bible for daily use, safety, and basic maintenance. It starts with a full safety section that covers everything from “Burn Prevention” to “Asbestos Dust Hazard Prevention.” Look at the table of contents: you get a clear breakdown of machine directions, product identification numbers (PIN), engine serial number plate location, and emission control labels. Then comes the operation chapter – 30+ pages on starting, stopping, swinging, steering, traveling on slopes, and even lifting objects with the bucket. The troubleshooting section (page 73) tells you what to do when the battery dies or the machine runs out of fuel. The maintenance section covers periodic checks and fluid recommendations. No fluff – just factory procedures.

Why OEM Documentation Matters

Aftermarket manuals love to skip the warning labels or rewrite the safety rules. This one doesn’t. The “SAFETY INFORMATION” chapter includes California Proposition 65 warnings for diesel exhaust and battery posts – the actual text from Komatsu. The “STARTING ENGINE IN COLD WEATHER” procedure is straight from the factory test lab. When you need to know the correct way to use booster cables, it’s on page 40 of the safety section. OEM documentation also gives you the exact location of every safety label on the machine, so you can verify they’re still legible. Aftermarket reprints? They copy the text but lose the diagrams and block numbers. That’s not acceptable when you’re dealing with hydraulic lines at 3,000 psi.

Who Needs This Manual

This manual is for the owner-operator who runs a PC09-1 at home, on a farm, or in a small excavation business. It’s also for the weekend guy who bought a used machine from an auction and has no idea what the switches do. If you’ve never worked on heavy equipment before, the “MOUNTING AND DISMOUNTING” rules might seem basic – but they’ll keep you from a fall. The “WORKING ON LOOSE GROUND” section is a must-read for anyone operating on dirt or gravel. Even experienced operators should review the “DISTANCE TO HIGH VOLTAGE CABLES” table. I’ve seen two incidents where guys got too close to power lines because they guessed the distance. This manual gives you the number.

3 Reasons to Choose This OEM Operators Manual

First, it’s the exact manual that came with the machine from Komatsu – same layout, same page numbers, same warnings. Second, it covers the engine serial number location and emission control label info, so you can verify your machine’s compliance. Third, the 207 pages include a detailed “COLD WEATHER OPERATION” section with steps for after-daily-work completion and long-term storage. You won’t find that level of detail in a generic guide. For deeper repair work, grab the KOMATSU PC09-1 Shop Manual – that one covers rebuilds. But for day-to-day operation and basic maintenance, this operators manual is the tool you need on the seat.

How to Use This Manual on the Job

Keep a copy in the cab or on your phone. When you see a warning light, flip to the “METERS, LAMPS” section. Before you start the engine after a cold night, follow the “STARTING ENGINE IN COLD WEATHER” checklist. When it’s time to transport the machine, the “LOADING AND UNLOADING WITH TRAILER” procedure gives you step-by-step – including the hand signals from the Signalman’s Signal section. And if you ever have to tow the PC09-1, read the “SAFETY RULES FOR TOWING” first. It’s different from towing a car with a Manual Transmission – the excavator’s hydrostatic system has its own lockout procedures. For wheeled model variants, see the Komatsu GALEO PC09-1 Hydraulic Excavator O&M Manual. And if you operate a larger Komatsu wheeled excavator, the Komatsu WH609-1E0 – WH716-1E0 Operators Manual | 272 Pages OEM covers those.

Does this manual cover the engine?

Yes. It includes the engine serial number plate location, starting and stopping procedures, cold weather operation, and after-start checks.

Is this a printed book or a digital PDF?

You get a digital PDF – instant access, searchable, printable. No waiting for shipping.

Will this work for the PC09-1 with rubber tracks?

Yes. There’s a dedicated section “RUBBER SHOES (MACHINE WITH RUBBER SHOES ONLY)” covering operation and care.

What if I need help interpreting the safety labels?

That’s exactly why you want the OEM manual. The “LOCATION OF SAFETY LABELS” section gives you a diagram showing every decal – swing lock, pinch points, hot surfaces – and explains the hazard. The aftermarket copies often blur the images or skip the placement details. With this manual, you can verify each sticker is present and readable. If one is missing, you can order the exact Komatsu replacement part number from the label list. I’ve used that list myself to get the right decal for a customer’s machine instead of guessing which generic sticker to buy.

Look, I don’t sell manuals for a living – I fix equipment. But when a customer brings in a PC09-1 that’s been abused because the previous owner never read the manual, it costs them real money. You can avoid that. Access the Factory Manual now, put it on your tablet, and read it once through before your next job. Your machine – and your wallet – will thank you.
