Kohler Engines LH630, LH660, LH775 Service Manual – The Factory Procedure for Liquid-Cooled Engines

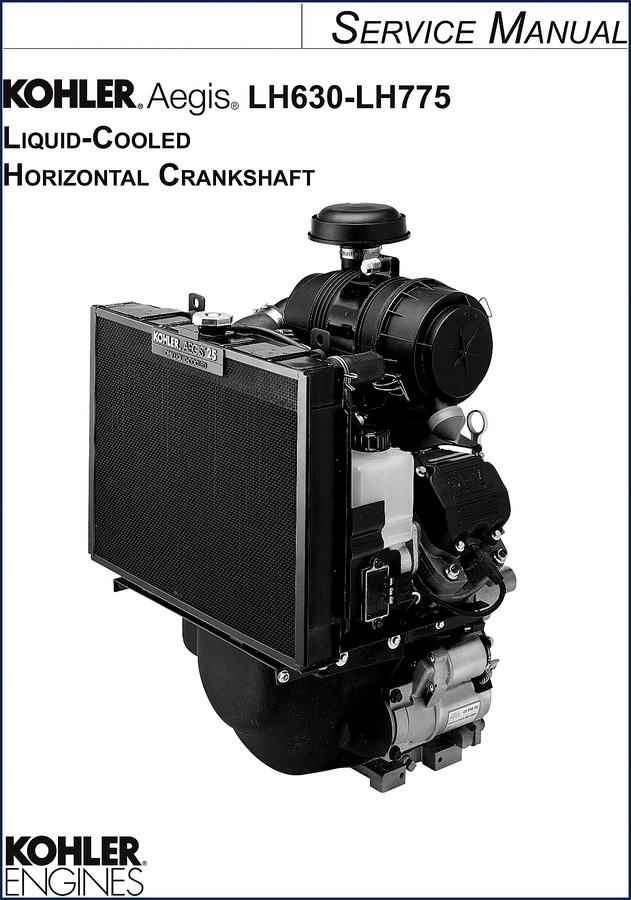

If you have ever had a Kohler liquid-cooled engine get stuck because you took a shortcut on the head bolt sequence, you know exactly what I am talking about. The guessing game costs you parts, time, and sometimes the whole engine. This manual is for the guy who wants the Kohler Engines factory procedure, not a third-party rewrite that leaves out the critical steps. The file runs 184 pages and covers the LH630, LH660, and LH775 models – horizontal crank, liquid-cooled, from the Aegis line. No fluff, no filler, just the OEM service data that the factory expected its technicians to use.

Kohler Engines LH630, LH660, LH775 Service Manual: What’s Inside

Section 1 kicks off with Safety and General Information. Read it. These engines run hot coolant and high-pressure fuel. The manual tells you the specific PPE and ventilation requirements before you crack open the cooling system. Section 2 lists the Tools & Aids you need – nothing exotic, but things like a pulley puller and a torque wrench that reads in inch-pounds for the smaller fasteners. You will find the exact part numbers for the special tools if you want the factory ones, but the manual also tells you acceptable substitutes.

Troubleshoot Before You Wrench

Section 3 – Troubleshooting – saves you time. It breaks down symptoms like hard starting, overheating, or low oil pressure. For each symptom it gives a cause tree and a test sequence. You do not start replacing parts until you confirm the diagnosis. This is where most aftermarket guides fall apart – they list symptoms but skip the step that tells you where to put the multimeter leads. The factory manual does not do that.

Fuel System and EFI: Two Separate Sections for a Reason

Section 5 covers the Fuel System and Governor (carbureted models). Section 5B goes into the Electronic Fuel Injection (EFI) Fuel System. If you have the EFI version, do not use the carb section. The EFI section includes the diagnostic trouble code list, the fuel pressure test procedure, and the idle air control motor reset. Both sections give you the high-idle speed and governor adjustment specs that are engine-specific. Aftermarket manuals often mash these together and you end up with the wrong idle screw setting. Not here.

Cooling System and Electrical: The Two Systems That Bite Back

Section 7 is the Cooling System. It covers the water pump, thermostat, and the entire routing of the coolant hoses. The belt tension spec for the water pump drive is included, along with the bleeding procedure for the closed system. Skip the bleed sequence and you get an air pocket that overheats the rear cylinder. Section 8 – Electrical System and Components – gives you the starter circuit, charging system, and the kill switch logic. The wiring diagrams are color-coded and broken down by harness branch. You can trace a short circuit without lifting a single wire if you follow the diagnostic tree. I have used this section more times than I can count. The Manual Transmission side of things is a different world, but for these engines the electrical section is gold.

7 Sections from Disassembly to Reassembly

Section 9 – Disassembly, Section 10 – Inspection and Reconditioning, Section 11 – Reassembly. Together they run about 90 pages. The disassembly order is critical for the LH series because the lower crankcase cover has the oil pump drive. If you pull the screws in the wrong sequence you warp the cover. Section 10 gives you the wear limits for the cylinder bore, piston ring end gap, and valve stem clearance. These specs come straight from Kohler Engines. You will not find them in any parts catalog. Section 11 gives the torque sequences for the head, the main bearing caps, and the flywheel. The manual tells you the thread locker to use on the flywheel bolts – Loctite 272, not the generic stuff.

After you finish these engines, you might need to move on to other equipment. Check out the White Outdoor LT-5 – 700 Series Rider Service Manual for a completely different drivetrain. For wiring diagnostics on another machine, the Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D covers a detailed harness. And if you work on hydraulic attachments, the HUSKIE Hydraulic Hammers Service Manual has the pressure specs you need. For general Manual Transmission theory, the factory manuals are the only source I trust.

Does the manual include torque specifications?

Yes. Section 10 and Section 11 list all torque values for the cylinder head, main bearings, connecting rods, flywheel, and every threaded fastener that matters. The values are given in foot-pounds and inch-pounds with the correct tightening sequence.

What does Section 5B cover exactly?

Section 5B covers the Electronic Fuel Injection system. It walks you through the ECU trouble codes, fuel pressure test, injector cleaning procedure, and the governor actuator calibration. It also includes the wiring diagram for the fuel pump relay and the throttle position sensor adjustment. If you have an EFI model, this section alone is worth the price of the manual.
