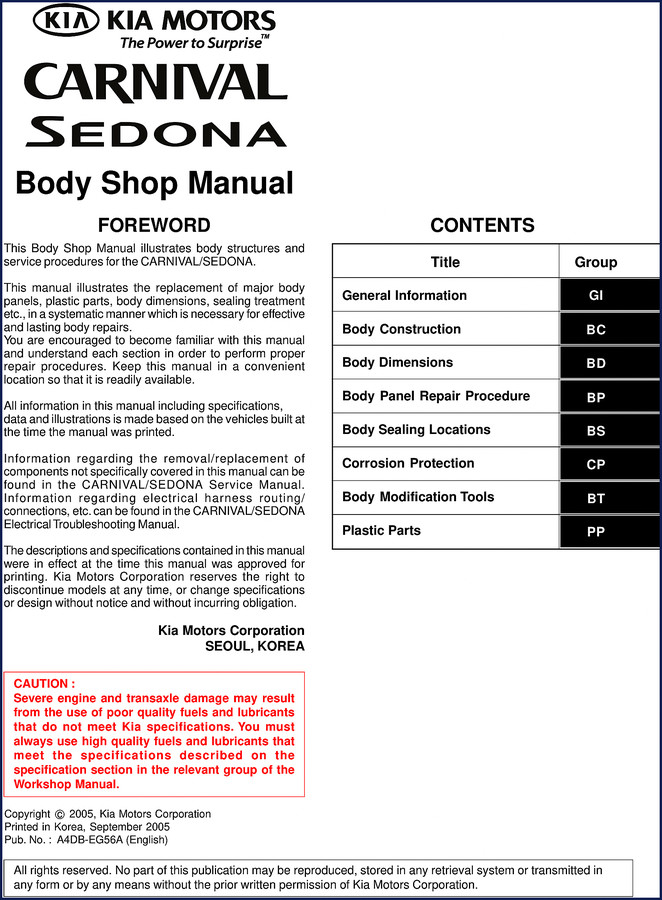

KIA Motors CARNIVAL, SEDONA 2005 Workshop Manual

Look, I’ve seen too many body jobs come into my shop that were done using aftermarket manuals with wrong dimensions and modified panel specs. That’s why when you’re working on a 2005 CARNIVAL or SEDONA, you want the actual factory document: the KIA Motors CARNIVAL, SEDONA 2005 Workshop Manual. This is the 128-page body shop manual Kia gave its dealerships, not a reprint from some third-party that scanned it crooked. I’m Mike Callahan, and I’ve been torquing bolts since before some of you were born. Let me tell you what’s inside and why you shouldn’t skip this.

General Information: Fundamental Procedures and Safety Warnings

Every body repair starts with the right prep, and this manual covers it on page 1: vehicle protection, welding procedures, and electrical disconnection steps. The section on FUNDAMENTAL PROCEDURES (GI-2) includes a word about safety that applies to every job. I’ve watched techs ignore the “disconnect battery” warning and fry a body control module. That page 2 warning about using correct fuels and lubricants applies to engine work, but the discipline carries over. Don’t skip the rustproof treatment specs on GI-8 either—I’ve seen panels rot out six months later because someone used the wrong sealer. If you need engine management training alongside this, check the Kia Engine Management System Diagnosis I Course Guide.

Body Dimensions (BD) – Why Aftermarket Repros Fail

The BD chapter lists the exact factory measurements for the CARNIVAL/SEDONA unibody. Aftermarket manuals often compress or misalign these numbers because they’re traced from damaged vehicles. This manual gives you the as-built dimensions from the jig. When you’re pulling a front rail, those numbers are what keep the wheel alignment within spec. I had a guy bring in a car last month that pulled right after a front-end repair. He’d used a generic measurement chart. We re-pulled to the factory numbers from page 2 of the BD section—problem gone.

Body Panel Repair Procedure (BP) – Step-by-Step Removal

BP walks through replacing major panels like the door outer skin, quarter panel, and roof panel. It tells you which joints to cut and which to leave intact. No guessing—you get the exact cutting line and weld sequence. Kia even specifies the type of weld (plug vs. spot) and the required number of welds per joint. The section on plastic parts (PP) covers bumper repair and bonding adhesives. That’s critical for any shop touching modern vehicles. For more on body repair for other Kia models, see the Kia Soul 2009 Body Repair Manual.

Corrosion Protection and Body Sealing Locations

The BS and CP groups are where most shortcut-takers get burned. The manual shows exactly where factory seam sealer goes, the type of sealer (PVC, urethane, etc.), and the corrosion inhibitor application after welding. Use the wrong sealer and you’ll be redoing the job inside two years. The CP chapter also lists the approved cavity wax injection points. I’ve seen techs skip this and have the customer complain about rust bubbles before the warranty expired. Don’t be that guy. The manual’s corrosion data aligns with Automotive Industry Overview best practices on salt-belt durability.

Body Modification Tools and Plastic Parts (BT & PP)

This might be the least-read chapter, but it’s vital if you’re working on modern plastics. The BT section lists the specific body frame straightener setup and the required adapter pins for the CARNIVAL/SEDONA. The PP section covers plastic identification codes and the correct repair method (heat welding, adhesive bonding, or replacement). I’ve had guys try to weld polypropylene with the same settings as ABS—ends in a melted mess. The manual tells you the correct plastic welding temperature and filler rod type. If you’re dealing with smart key issues on newer models, the Kia Smart Key System Training Manual 2012 is a good supplement.

Follow the Factory Welding Procedures

Welding is where safety and quality meet. The GI chapter gives you the Kia-approved weld settings for MIG and spot welding on the CARNIVAL/SEDONA. It also covers weld-through primer requirements. Don’t think you can use a generic chart—I’ve had techs burn through a roof panel because their machine was set too hot. The manual even specifies the body frame straightener hold-down positions (GI-3) and the correct jack and safety stand positions (GI-9). That’s the kind of detail you don’t get in a PDF thrown together in someone’s garage. For reference on manual transmission removal unrelated to body work, you can look up Manual Transmission guides, but that’s not in this book.

Does this manual include engine torque specs?

No – this is a body shop manual only.

What is the difference between this factory manual and an aftermarket version?

Aftermarket body manuals often omit the specific weld locations, panel gap dimensions, and corrosion protection steps that Kia engineered. This factory manual includes the exact body dimensions from the factory jig, the sequence for panel removal to avoid structural warping, and the approved seam sealer types. I’ve seen cars that had to be reworked because a tech used a generic diagram. The manual also lists the specific plastic repair adhesives and modification tools Kia authorizes. That matters when you’re bonding a plastic bumper cover. Using the wrong adhesive can cause failure at highway speed. This manual eliminates guesswork. It’s 128 pages of procedures that have been tested on the assembly line. You won’t find that in a $20 PDF from some reseller.

End of story. If you’re serious about body repair on a 2005 CARNIVAL or SEDONA, stop wasting time on generic information. Access the Factory Manual and get the real specs that keep your work straight and safe.
