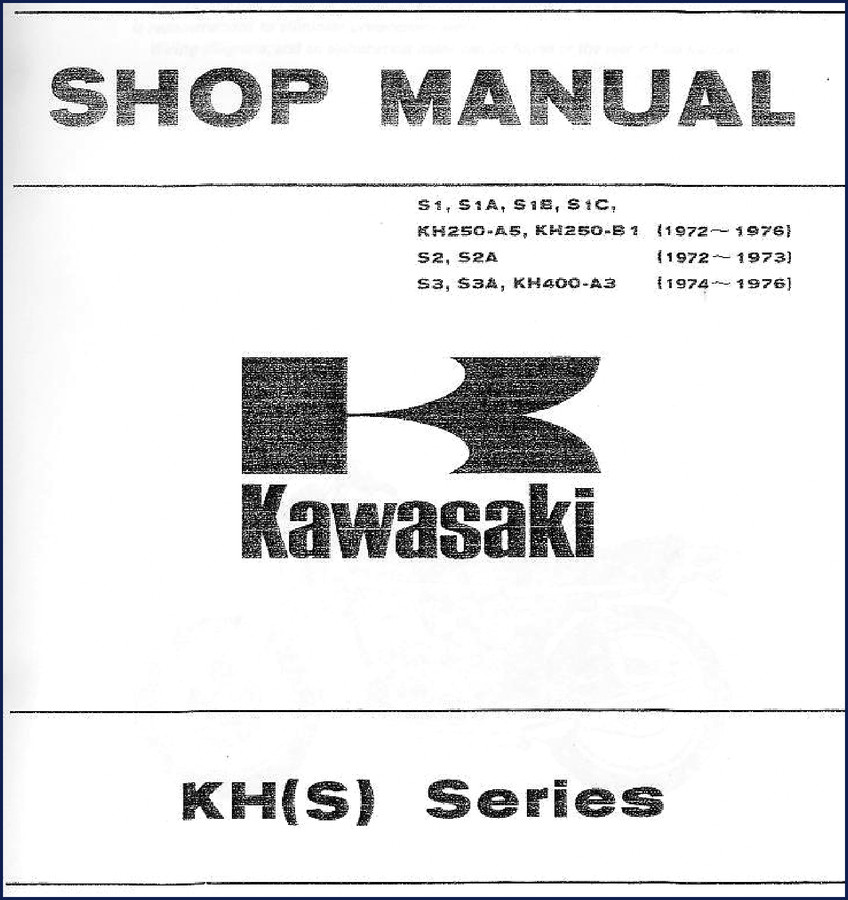

Kawasaki S1, S1A, S1B, S1C, KH250-A5 Workshop Manual 129 Pages

Description

If you’re pulling a Kawasaki S1 or KH250-A5 engine out of the frame and you don’t have the factory specs in front of you, you’re working blind. This 129-page Workshop Manual is the one Kawasaki issued to their own dealers — not a reprint, not a third-party summary. I’ve torqued enough cylinder heads to know that aftermarket manuals love to round torque values. This one prints the exact OEM numbers. The Kawasaki S1, S1A, S1B, S1C, KH250-A5 Workshop Manual is the only source I trust for a 1970s triple rebuild. No exceptions.

Cylinder, Piston, and Rings: Factory Disassembly Sequence

The detailed maintenance section starts at page 18 with the cylinder and cylinder head. It walks you through removing the head, checking the gasket surface, and honing the cylinder bore. Page 21 covers piston and piston pin removal — including the snap ring orientation that aftermarket diagrams always get wrong. Piston ring gap measurement is on page 24. If you skip the ring end gap check, you’ll have a smoking engine by 500 miles. Don’t guess. Follow the manual.

Does This Manual Cover Both Contact Breaker and CDI Models?

Yes. The electrical section is split into two sub-sections: one for contact breaker models (S1, S1A, S1B, early S1C) and one for CDI (KH250-A5, KH250-B1, later S1C). Each has its own wiring diagram and troubleshooting procedure. If you’re swapping an ignition system, you need the correct section. The CDI subsection includes capacitor discharge ignition testing voltages — critical for the KH250-A5 models with the first electronic ignitions. Mixing those up will fry a coil.

Get the Right Torque Specs – Page 73

The torque specifications section on page 73 lists every fastener you’ll touch: cylinder head bolts (8-10 ft-lbs on the 6mm studs), crankcase bolts, clutch hub nut, primary gear bolts, and fork pinch bolts. It also includes the tightening sequence for the cylinder head — a three-step pattern that prevents warping. I’ve seen a lot of cylinder head gaskets fail because someone tightened in a circle instead of the cross-pattern listed here.

Engine: General Maintenance vs. Detailed Maintenance

Kawasaki split the engine section into two parts. General maintenance (starting page 9) covers minor disassembly, removal, mounting, and adjustments — idle, oil pump, clutch, shift linkage. Use this section if you’re doing a top-end refresh or carb sync. Detailed maintenance (page 17) is for full teardown: splitting the crankcase, pulling the transmission, pressing out the crankshaft. If you’re chasing a transmission issue, go straight to page 41. The Manual Transmission section there gives bearing tolerances and shift fork clearance. The Kick Starter assembly is on page 45 — spring preload matters. That alone is worth the price.

Kawasaki S1, S1A, S1B, S1C, KH250-A5 Workshop Manual: Key Chapters at a Glance

The frame section (page 56) covers everything from swing arm bushings to disc brake bleeding. For the KH250-A5 with the disc front brake, the manual gives the exact pad thickness limit and master cylinder rebuild procedure. The fuel and oil tank chapter (page 97) includes the oil pump flow testing steps — critical on the S series because the pump is what feeds the rotary valve. If you’re restoring one of these triples, you need the Kawasaki Zx7R Rr Workshop Manual – 343-Page Factory OEM for a modern comparison, or the Kawasaki ZX-6R ZX-6RR Workshop Manual 564 Pages OEM Specs for later sportbike knowledge. For a bigger triple, the Kawasaki ZEPHYR 1100 Workshop Manual – 268 Pages of Factory Specs is also available. The Manual Transmission section in this manual follows the same logic Kawasaki used for decades.

One last thing: the troubleshooting section at page 117. It lists symptoms like “Engine bogs at high speed” and gives a step-by-step diagnostic path. Most guys jump straight to the carburetor section, but the manual tells you to check the spark plug heat range first. That’s the difference between a factory document and a generic repair book.

Does this manual cover the KH250-B1 European model?

Yes, it’s listed in the model application chart.

What torque specs are included?

Torque specifications are listed on page 73 of the manual. They cover cylinder head bolts (8-10 ft-lbs for 6mm), crankcase bolts, clutch hub nut, and many others. Also includes front fork pinch bolts and rear shock absorber fasteners. Using factory values prevents stripped threads, oil leaks, and seized fasteners. Do not rely on aftermarket charts — they often round values. The manual also gives tightening sequences for critical assemblies like the cylinder head and crankcase. Follow them exactly to avoid warping gasket surfaces.

How are the wiring diagrams arranged?

Wiring diagrams are at the rear of the manual, right before the index. They are model-specific for both contact breaker and CDI electrical systems. If you are troubleshooting an electrical fault, start there.

Can I use this manual for a 1977 model?

This manual covers up to 1976. For later models, check our other Kawasaki manuals like Kawasaki Zx7R Rr Workshop Manual – 343-Page Factory OEM.

If you’re serious about keeping a 1970s triple on the road, grab this manual. Access the Factory Manual from AutoRepairManuals and stop guessing.
