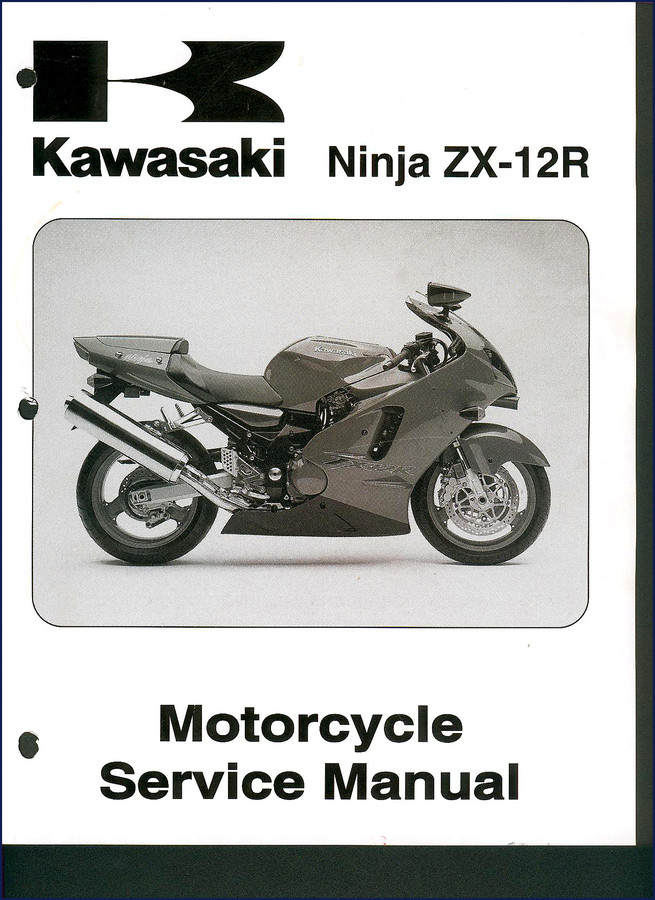

Kawasaki Ninja ZX-12R 2000 Service Manual

Twenty-eight years of turning wrenches in San Antonio has taught me one thing: the difference between a job that stays done and a job that comes back on a tow truck is the manual you use. I’ve seen guys blow a perfectly good 2000 Ninja ZX-12R engine because they trusted some aftermarket PDF with a torque spec that was off by 10 lb-ft on the crankshaft bearing caps. Don’t be that guy. The Kawasaki Ninja ZX-12R 2000 Service Manual is the only thing between you and a solid rebuild. This is the factory document – 434 pages, direct from Kawasaki Heavy Industries. No reprints, no third-party interpretations.

Period.

Fuel Injection (Ch-2) and Cooling (Ch-3): Factory DFI and Radiator Specs

The digital fuel injection system on the ZX-12R is touchy. Aftermarket manuals skip the pressure regulator test sequence and the exact resistance values for the injectors. This manual devotes an entire chapter – Ch-2 – to the DFI system, including the throttle body synchronization procedure that most home garage guys mess up. Ch-3 covers the cooling system: thermostat opening temperature, coolant capacity, and the specific torque for the water pump impeller nut. Need the charge pressure? Page 73. That’s a real page number from the real book.

Engine Top End (Ch-4) and Crankshaft/Transmission (Ch-8): What the Manual Covers

Engine top end work – that’s where the money is. Ch-4 gives you the head bolt torque sequence (always use the factory pattern, not the one from a forum) and the exact valve clearance specs. But the real gold is Ch-8: Crankshaft/Transmission. You get shimming charts for the crankshaft bearings, gear engagement specs, and the clutch hub nut torque that prevents oil leaks. I’ve used this chapter to rebuild three ZX-12R bottom ends without a single come-back. The transmission section alone saves hours of trial-and-error with shift fork alignment. For a deeper dive into how Manual Transmission theory applies to these sequential gearboxes, check the external resource – but on the bench, you need the factory numbers from this manual.

Suspension (Ch-12) and Electrical (Ch-15): Accuracy Matters

Suspension setup on the Ninja ZX-12R requires precise spring preload and damping rod assembly torque. Ch-12 breaks down the fork oil volume and air gap specs. And Ch-15 – Electrical System – is where most DIY guys get lost. This chapter includes the entire wiring diagram with color codes and connector pinouts. You can trace a no-start condition to the ECU ground circuit without guessing. Another external resource on Manual Transmission basics won’t help here – you need the OEM wiring logic. The manual also lists the exact resistance for the ignition coils and the starter relay test procedure.

434 Pages of Verified Data: How This Manual Saves Time

Every spec in this book came from Kawasaki’s own engineering department. The coolant capacity? 2.4 L. The crankshaft journal clearance? 0.020–0.044 mm. These are numbers you stake your reputation on. The manual includes the appendix with standard torque values and a list of abbreviations so you don’t confuse PS with psi. I’ve watched a garage owner burn two billable hours because his tech used a generic torque chart on a ZX-12R cylinder head. This manual prevents that.

Does This Manual Cover the Clutch and Brakes?

Yes – Ch-5 is the clutch chapter, and Ch-11 covers the brakes. The clutch includes the basket removal procedure and the spring free length spec. Brakes include the ABS system (if equipped) bleeding sequence and the caliper piston retraction tool size. If you are a beginner doing your first brake pad swap, read the section on master cylinder disassembly before you pull anything apart. The manual warns you about fluid contamination and how to protect the paint – real workshop tips that save you a repaint.

For related factory manuals, check out the Kawasaki Ninja ZX-12R Service Manual (same product), the Kawasaki Ninja 250R Service Manual – 428 Pages of Factory Specs for smaller displacement work, or the Kawasaki KLX250 D-TRACKER X Service Manual – 558 Pages for dual-sport coverage. All are genuine OEM documents, no aftermarket copies.

Can I use this manual for a 2001 Kawasaki Ninja ZX-12R?

No. This manual covers only the 2000 model year.

What tools are required to follow the engine removal procedure in Ch-7?

The manual’s General Information chapter lists required tools including a torque wrench (lb-ft and in-lb), clutch hub holder, flywheel puller, piston ring compressor, and a set of JIS screwdrivers. For the crankshaft removal you also need a bearing puller set and a dial indicator. The manual specifies each tool by its Kawasaki part number where applicable. Don’t substitute a standard puller if the manual calls for the OEM one – the crank is sealed with Loctite and you can crack the case. Beginners should read the entire chapter before touching the engine.

If you want to avoid the headache of stripped threads, misaligned timing chains, and electrical gremlins, get the real documentation. Access the Factory Manual now.
