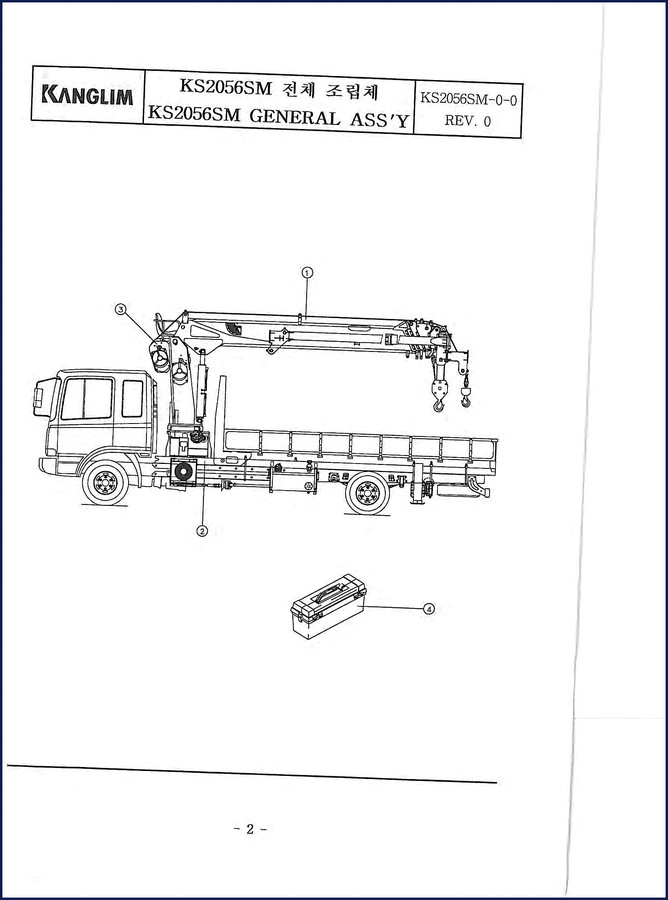

Kanglim KS2056SM Parts Catalog – Factory Assembly and Part Numbers

If you’re tearing down a Kanglim KS2056SM and you don’t have the factory parts catalog sitting on your bench, you’re gambling. I’ve seen guys order the wrong boom cylinder seal kit because they guessed the part number from a blurry photo. That costs time and money. This 198-page PDF gives you the actual OEM breakdown – every nut, every seal, every subassembly drawn the way the manufacturer intended. None of that aftermarket nonsense where they combine multiple models into one fuzzy diagram. This is the original file: KANGLIM_KS2056SM_Parts_Catalog_ko-en-103514018063.pdf. No reprints, no redraws.

Now, the table of contents runs 198 pages – each page labeled KS2056 (1) through KS2056 (198). Inside, it’s split into four main subdivisions: Crane Part Subdivisions (KS2056SM-1-0), Crane Mtg. Part Subdivisions (KS2056SM-2-0), Option (KS2056SM-3-0), and Spare Parts (KS2056SM-4-1). I’ll walk you through what each one covers so you know exactly what you’re getting.

Crane Part Subdivisions: Boom, Column, Base

The core of this catalog is the Crane Part Subdivisions section (KS2056SM-1-0). It starts with the Boom Assembly (KS2056SM-1-1) and the telescope cylinder assemblies. There are three stages: 1st, 2nd, and 3rd telescope cylinder assemblies (KS2056SM-1-3, -1-4, -1-5). Each has its own counter balance valve (KS2056SM-1-6). If you’ve ever had a boom drift because the wrong counterbalance valve was installed, you know why having the correct part number matters. Page 4 of the PDF (bookmark KS2056 (4)) shows the exploded view of the entire crane subdivision layout – that’s your road map.

Column Assembly: Winch Reduction Gear and Derrick Cylinder

Next is the Column Assembly (KS2056SM-1-7). Inside you’ll find the Winch Reduction Gear Assembly (KS2056SM-1-8) and the Derrick Cylinder Assembly (KS2056SM-1-9) with its dedicated counter balance valve (KS2056SM-1-10). The derrick cylinder is a high-pressure component – getting the wrong seal kit there can cause a catastrophic failure. The catalog gives you the OEM part numbers for every o-ring, piston seal, and rod wiper. Pair it with a service manual for torque specs, but use this catalog to order the right parts.

Base Assembly: Slewing and Rotary Joint

The Base Assembly (KS2056SM-1-11) ties everything to the chassis. It includes the Slewing Reduction Gear Assembly (KS2056SM-1-12) and the Rotary Joint Assembly (KS2056SM-1-13). The rotary joint is what allows fluid to pass through the rotating connection – a common failure point on any crane. The exploded diagram on page 5 (bookmark KS2056 (5)) shows every seal and bearing. If you’re rebuilding the slewing gear, the parts breakdown lets you order the correct bearings and shims without disassembling first to measure. That saves a full day of downtime.

Why OEM Documentation Over Aftermarket?

I’ve been burned by aftermarket parts catalogs that mix up KS2056SM and KS2605 parts. The KANGlim Crane Part Subdivisions K1003412 might look similar, but the hydraulic fitting threads are different. This catalog is the original Kanglim release – Korean and English side by side. You get the exact part numbers, not re-indexed numbers that don’t cross-reference with any dealer. The KANGLIM Crane Part Subdivisions Catalog KS734N is a different platform altogether. Stick with the model-specific file. For broader context on why factory documentation matters in heavy equipment, see the Automotive Industry Overview and Automotive Industry Overview.

Assembly Breakdowns by Section

Each subdivision in this catalog is broken down further into subassemblies with exploded views. The Crane Mtg. Part Subdivisions (KS2056SM-2-0) covers how the crane mounts to the carrier. If you’re swapping a KS2056SM onto a different truck chassis, you need those mounting plate and bolt patterns. The Option section (KS2056SM-3-0) lists add-on kits like auxiliary winches or remote control packages. The Spare Parts section (KS2056SM-4-1) is the most used – it gives you the individual part numbers for commonly replaced items like filters, hoses, and electrical components.

Will this catalog tell me how to fix a hydraulic leak?

No. This is a parts catalog, not a service manual. It shows you what part goes where and gives you the OEM number. For repair procedures and torque specs, you need the service manual. But you can’t order the right part without this.

Does it cover the entire KS2056SM model range?

Yes. The PDF covers all revisions up to REV. 0. If your machine has a later revision, some parts may have changed. Check the revision block on page 1.

Can I use this catalog to cross-reference parts with aftermarket brands?

You can, but cross-referencing is your responsibility. The catalog lists Kanglim OEM numbers only. Aftermarket brands like KANGLIM KS2605 Crane Part Sub-Divisions Catalog use different numbering. Use the OEM number as your starting point.

How many pages and what file format?

198 pages, PDF. The file is the original factory scan with Korean and English text. It’s not a reprint or a third-party compilation.

Bottom line: if you’re maintaining or rebuilding a Kanglim KS2056SM, this parts catalog is the only reliable source for ordering the correct components. Aftermarket catalogs mix up parts across models, and guessing from a photo costs you double. Access the Factory Manual now and keep it on your shop tablet – you’ll reference it every time you place a parts order.
