JCB 803 Technical Manual – Factory Bulletin Index for Mini Excavators

Mike Callahan here. I’ve lost count of the heads I’ve torqued, but I know a real manual when I see one. This JCB 803 Technical Manual isn’t some aftermarket knock‑off – it’s the factory bulletin index, straight from JCB, 547 pages of the kind of data that keeps a machine running. If you’re wrenching on a JCB 803 mini excavator and you don’t have this PDF on your tablet, you’re guessing. And I don’t guess.

Bulletin Index: What’s in Those 547 Pages?

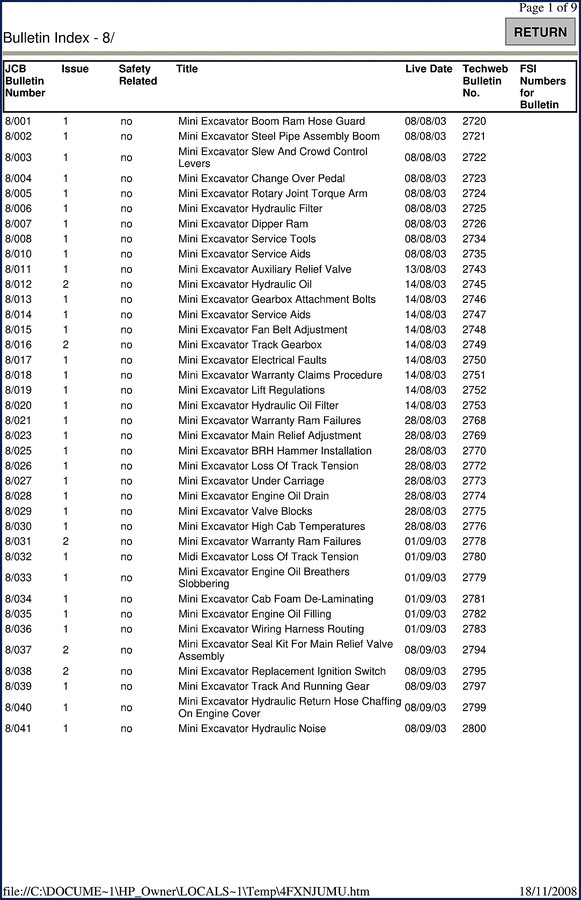

This manual is organized by numbered bulletins – 273 of them, covering everything from the boom ram hose guard (bulletin 8/001) to the engine oil breathers slobbering (8/033). Each bulletin gives you the live date, techweb bulletin number, and whether it’s safety‑related. You’ll find sections like Service Information, Service Procedure, Parts Information, and Machines Affected. That means you get the exact steps JCB issued to dealers. No fluff, no translation loss.

Service Information and Procedures: Not Your Average Shop Manual

Each bulletin drills down. For instance, bulletin 8/012 covers hydraulic oil specs – volume, viscosity, replacement intervals. Bulletin 8/016 gives you the track gearbox procedure, complete with torque values for the attachment bolts (bulletin 8/013). You want the torque for the gearbox bolts? It’s in there – factory spec, not a third‑party estimate. The manual also includes Cold Start Procedure (bulletin 219.pdf) and Software Changes (bulletins 223.pdf, 226.pdf) – critical when you’re chasing intermittent electrical faults.

Does This Manual Cover Track and Hydraulic Systems?

Yes – and then some. Bulletins 8/039 (Track And Running Gear), 8/040 (Hydraulic Return Hose Chaffing On Engine Cover), and 8/042 (Hydraulic Tank Weld Failure) give you the factory fix. The track gearbox bulletin references procedures that mirror a Manual Transmission overhaul – same principles of gear alignment, seal replacement, and shimming. If you’ve ever rebuilt a transmission, you’ll recognize the logic. The manual also covers the auxiliary relief valve (8/011) and main relief adjustment (8/025) – both require precise gauge hookups, and the manual tells you which service tools (bulletin 8/008) you’ll need.

Cold Start Procedure and Engine Oil Drain – Factory Specs

Bulletin 219.pdf is dedicated to cold start procedure. That’s a whole page on how to get the engine lit when ambient temps drop – glow plug sequence, fuel priming steps, ether injection limits. Bulletin 8/028 (Engine Oil Drain) spells out the drain interval, oil grade (10W‑30 or 15W‑40 depending on ambient), and the torque for the drain plug – 25 lb‑ft, cast in a steel pan. Don’t overtighten. I’ve seen cracked pans from guys who thought “German torque” was good enough. No. Factory number or back to the toolbox.

Parts Information and Warranty Claims – What to Watch For

Every bulletin that involves parts lists two sections: Parts Information and sometimes separate Parts Information 8052 and 8060 (bulletin 225.pdf). That means you get the correct part numbers for different machine serial ranges. And warranty? Bulletins like 8/019 (Lift Regulations) and 8/021 (Warranty Ram Failures) remind you what JCB will and won’t cover. If you’re a shop owner, this saves you from writing off a claim because the tech didn’t follow the bulletin. The manual includes Warranty Information sections throughout – don’t skip them.

One more thing: the wiring harness routing bulletin (8/036) and the electrical fault bulletin (8/017) are gold. The electrical section walks you through a step‑by‑step test of the horn and swing switches, ignition switch replacement (8/038), and grounds checking. If you’re chasing a no‑crank on a 2003 803, start with bulletin 8/017. You’ll save an hour of diag time.

Why choose OEM over aftermarket? Because aftermarket manuals re‑write the procedures, skip details, and often have wrong torque values. This is the same binder JCB dealers use. No third‑party interpretation. That’s why I only use OEM documentation – like this Manual Transmission guide I keep on my bench for reference; I want the original specs, not someone’s summary.
