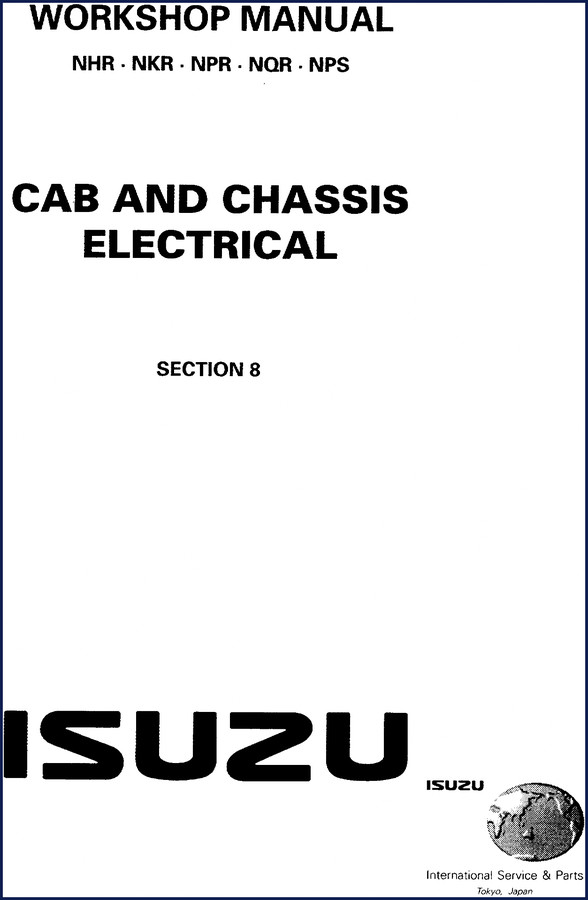

Isuzu NHR55, NHR69, NKR55, NKR66, NKR69 Workshop Manual – Factory Electrical Section

I’ve been twisting wrenches for 28 years, and I can tell you the difference between a job that goes smooth and one that turns into a three-day nightmare is the manual you’re holding. Aftermarket reprints? I’ve seen fuse locations mislabeled, wire colors swapped, and torque specs that would snap a bolt in half. This Isuzu NHR55, NHR69, NKR55, NKR66, NKR69 Workshop Manual is the original factory document from Isuzu Japan. 305 pages, single section – Cab and Chassis Electrical. That’s it. No fluff, no copy-paste garbage.

Every time I see a tech open a third-party PDF and start guessing at wire colors, I want to throw a wrench. You don’t guess when you’re dealing with 24-volt systems, glow plug controllers, or exhaust brake solenoids. One wrong splice and you’re chasing a short for a day. This manual gives you the actual connector views, pinouts, and grounding point locations from the factory. The wiring diagrams start on page 8-11 – they show each circuit with component symbols that match the Japanese engineering standard. If you’ve ever stared at a blurry photocopy of a wiring diagram and wondered which line is the power feed, you need this.

Notes for Working on Electrical Items – Page 8-3

Page 8-3 opens with the cautions that save your harness. Disconnect the battery before any connector work. Use the specified test probes – not a screwdriver. Don’t pierce wire insulation because that invites corrosion. The manual spells out exactly how to handle fusible links, relays, and diodes. I’ve had guys swear they knew all this, then melt a fuse block because they didn’t check the circuit breaker rating. The manual gives you the reference table – fuse values, circuit breaker amperage, and the location of every relay and diode in the chassis. That table is on page 8-12 in the “Fuse and Fusible Link Location” subsection.

Reading the Circuit Diagram – Factory Symbols Explained

The symbols section (pages 8-9 to 8-10) covers every icon Isuzu uses – from ground symbols to joint connectors. If you’ve ever seen a weird arrow inside a circle and guessed it was a resistor, you’re wrong. The manual defines it. Connector symbols show male and female terminals, cavity numbers, and wire color codes. The joint connector diagrams (page 8-19 or so) show where multiple circuits splice. This is the stuff aftermarket manuals leave out. When you’re tracing a power door lock failure on a NKR66, knowing where that joint connector lives saves an hour of probe work.

3 Critical Systems Covered: Exhaust Brake, QOS, and Power Door Lock

The System Repair section dives into the subsystems that give DIYers fits. The QOS (Quick On Start) system – that’s Isuzu’s intake air heater strategy for cold starts. The manual walks you through relay logic and glow plug resistance checks. The exhaust brake system interacts with the engine control unit; the wiring diagram shows the vacuum solenoid circuit and the switch inputs. Power door lock? The manual includes the door lock actuator wiring, the relay position, and the splice locations. You don’t get that from a generic wiring diagram book.

What the Fuse Block Circuit Tells You

FUSE BLOCK CIRCUIT – that’s the table that lists every fuse position, its amperage, and what it protects. Combined with the RELAY LOCATION table, you can pinpoint a dead circuit in minutes. For example, if your dome light and backup buzzer are both dead, you check fuse position X. The manual tells you which circuits share a feed. That kind of diagnostic shortcut is pure gold when you’re billing by the hour. For background on how automotive electrical systems evolved, check the Automotive Industry Overview.

Wiring Harness Routing and Grounding Points

The last part of the MAIN DATA AND SPECIFICATIONS chapter covers cable harness routing and grounding point locations. This is the difference between a professional repair and a hack job. The manual shows exactly where each harness clips to the frame, where the grounds bolt to the chassis, and what size ring terminal to use. If you’re swapping a cab on a NHR55, you need those routing diagrams. Otherwise you’ll pinch a wire and short the entire instrument cluster. The ISUZU Intermediate-1 Training Manual complements this manual if you’re learning the engine side.

Does This Manual Cover the Fuel and Engine Systems?

This particular manual is Section 8 only – Cab and Chassis Electrical. It does not include engine mechanical, transmission, or chassis sections. For the 4JJ1 or 4JK1 engines, you want the Isuzu AI-4JJ1X, AJ-4JJ1T, BJ-4JJ1X, BU-4JJ1T Workshop Manual – 278 Pages or the Isuzu 4JK1, 4JJ1 2007 Workshop Manual – 644 Pages of OEM Specs. But if your problem is electrical – starting, charging, lights, wipers, heater, exhaust brake, glow system – this is the only manual you need. For general transmission theory, the Manual Transmission article has useful background.

Source Authenticity: Why OEM Matters Here

I’ve tested aftermarket wiring diagrams for these Isuzu N-series trucks. They often combine diagrams from different years, mismatch harness colors, or omit the QOS control module pinout. This manual is a scan of the original Isuzu International Service & Parts publication. The page numbers match the factory binding. Every fuse value, every connector cavity, every grounding point came from the Isuzu engineering department in Tokyo. You pay for the authenticity, not for a guessed-up reprint.

FAQ

What models does this workshop manual cover?

It covers NHR55, NHR69, NKR55, NKR66, NKR69, and also includes NPR66, NPR69, NPR70, NPR71, NPS71, NQR66, NQR70, NQR71. The primary focus is the NHR/NKR series cab and chassis electrical system.

Is this a complete vehicle repair manual?

No – this is Section 8 only (Cab and Chassis Electrical). 305 pages covering wiring diagrams, fuse locations, bulb specs, and system repair for 30+ electrical subsystems.

How is this different from a Haynes or Chilton manual?

Those aftermarket manuals often compress multiple years into one diagram and skip connector views. This factory manual shows every pin, every wire color, every splice as designed by Isuzu. If you want to fix an exhaust brake or QOS system without guessing, this is the one.

Can I access this immediately?

Yes – the PDF is available for instant access after purchase. 305 pages, searchable, printable.

You’ve got a truck that won’t start, lights that flicker, or a solenoid that clicks but doesn’t engage. You’ve pulled the fuse and it’s good. Now what? Stop working from photocopies and PDFs that skip steps. Access the Factory Manual and get the real wiring diagrams, the exact grounding points, and the Isuzu‑approved repair sequence. My shop runs on factory data – yours should too.
