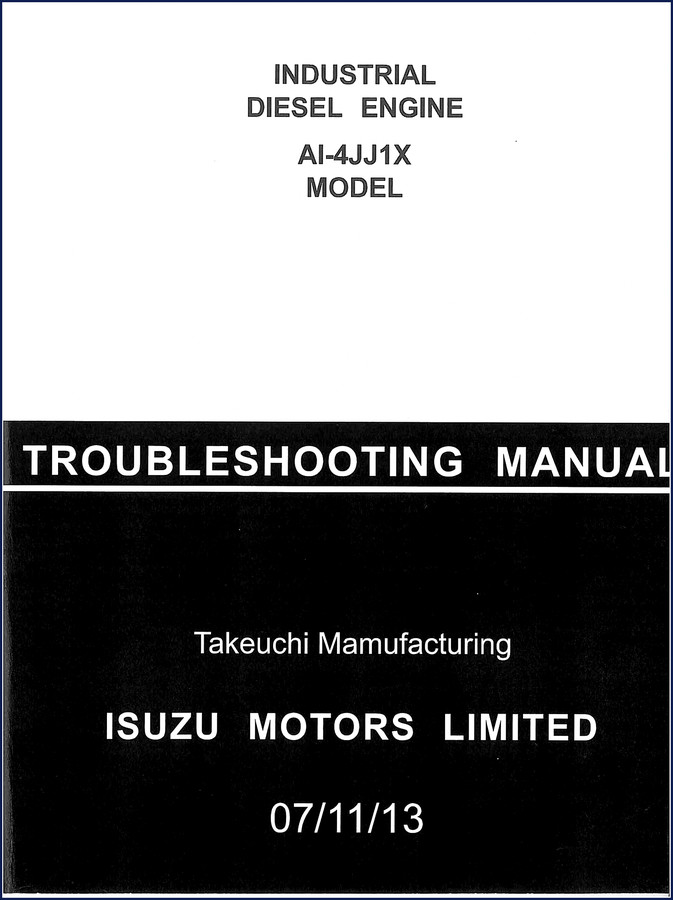

Isuzu 4JJ1X 2013 Troubleshooting Manual – Factory Diesel Diagnostics

If you are working on a Isuzu 4JJ1X 2013 Troubleshooting Manual and you are guessing at fuel pressure specs, you are about to learn a hard lesson. I have seen it too many times – a tech swaps a high-pressure pump without checking the DTCs first, then stands there scratching his head when the new pump grenades. This Isuzu 4JJ1X 2013 Troubleshooting Manual puts that nonsense to rest. 523 pages of factory procedure, from the common rail fuel system to the last pin on the ECM connector. No aftermarket shortcuts, no misspelled wire colors. This is the document the engineers wrote for the techs on the line.

Isuzu 4JJ1X 2013 Troubleshooting Manual: Scope and Content

This manual covers the electronic control fuel injection system (common rail type) on the 4JJ1X industrial engine. The table of contents starts with how to use it, abbreviation tables, conversion formulas, and wiring color codes. Then it dives straight into precautions on service work – specifically electrical precautions on page 1E-11. That section alone has saved me from frying an ECM. The fuel injection system section begins on page 1E-12, laying out the entire diagnostic flow. You get the interview step, pre-injection checks, and the full procedure for reading and clearing DTCs. If you have ever been stuck on a no-start with no codes, the diagnostic procedure chapter gives you a logical order to follow.

3 Phases of Trouble Diagnosis: Interview, Pre-Injection, DTC Reading

Page 1E-14 starts with the interview – asking the operator what happened before the failure. Then pre-injection checks (page 1E-16). Then how to read DTCs (page 1E-16). That is the backbone of every common rail diagnosis. The manual lists flash check items and includes a DTC list that runs for dozens of codes. DTC P0087 (common rail pressure fault – no pressure feed) is a common one I have tackled. The manual walks you through the circuit test step by step, with the expected voltage or resistance at each pin. You do not guess; you measure.

Does This Manual Cover the Injector Balance Test?

Absolutely. Page 1E-34 gives the complete procedure for the injector balance test using either Tech2 or EMPSIII scan tools. That is the factory method to identify a leaking or stuck injector without pulling the rail. The manual also includes the breaker box inspection procedure starting on page 1E-35 – a way to test injector circuits and harness when you do not have a scan tool handy. If you are diagnosing a misfire or excessive smoke, that chapter pays for itself.

Wiring Diagrams and ECM Pin Layout: Critical Details

The engine control system chapter begins on page 1E-37, with the ECM wiring diagram on page 1E-69, pin arrangement on page 1E-70, and circuit diagrams starting page 1E-74. Every connector is listed, every wire color is spelled out. There is a full engine component location diagram so you can find the sensors and actuators physically. For anyone who has chased a ground fault in the engine harness, this section is a lifesaver. The manual also covers the OBD system check, diagnostic lamp circuit checks, and scan tool communication circuit check. You can verify that the scan tool is talking to the ECM before you start swapping parts.

Precautions on Electrical Work – A Section You Must Read

Page 1E-11 lists precautions on electrical work. Disconnect the battery before probing connectors. Use the correct breakout box for the ECM. Never back-probe a sealed connector. If you have ever seen a tech short a sensor supply wire to ground and smoke the ECM, you know why this section exists. The manual does not assume you know these things. It spells them out. And the wiring diagram color code table (page 1E-6) uses the standard Japanese color abbreviations – B for black, R for red, etc. No guesswork.

FAQ: Common Questions About This Manual

Is this manual specific to the 4JJ1X engine, or does it cover other Isuzu engines?

It is specific to the 4JJ1X industrial engine. The fuel system and ECM calibration differ from the 4JJ1 base engine. Use this manual for the X variant only.

Does the manual include torque values?

Each service step has factory torque specs embedded in the procedure. For example, the injector installation torque is listed in the injector inspection section. There is a conversion formula on page 1E-5 if you need to convert to foot-pounds.

How many pages is it?

523 pages.

Can I use this manual for a 2012 4JJ1X?

Yes, the 2013 edition covers the same engine family. Minor calibration changes are noted in the DTC list. If your engine serial number falls within the range, it applies.
