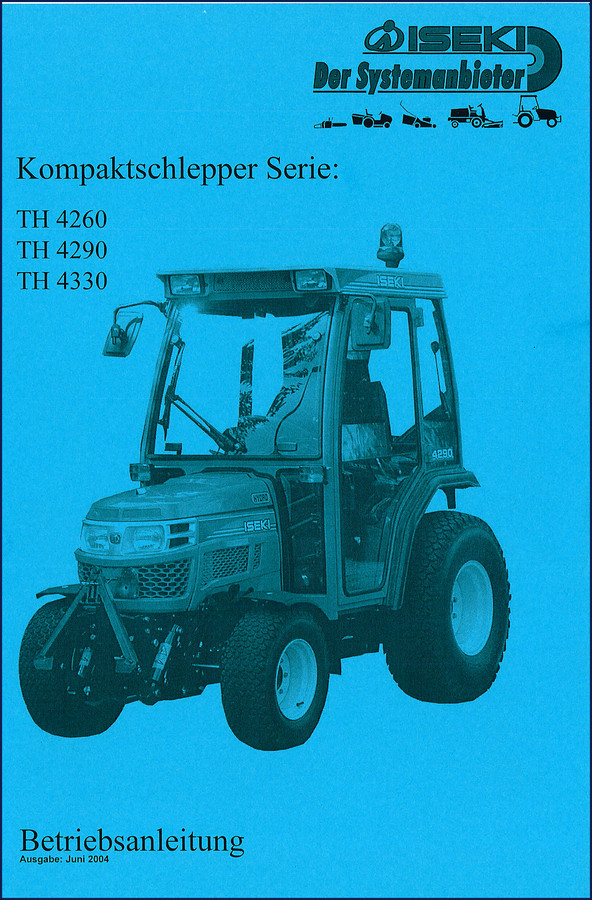

Iseki TH 4260, TH 4290, TH 4330 2004 User Manual

If you are wrenching on an Iseki TH 4260, TH 4290, or TH 4330 and relying on a generic aftermarket translation or a faded photocopy, you are asking for trouble. These compact tractors have specific safety interlocks, PTO engagement quirks, and hydraulic controls that vary between models. The 2004 User Manual – 68 pages of factory-issued instruction – is what you need on the workbench, not a third-party summary that leaves out the torque specs for the wheel lugs or the correct starting procedure in cold weather. I have seen too many guys strip a hydraulic fitting because they guessed the thread orientation from a bad PDF. Get the real thing.

What the TH 4260, TH 4290, and TH 4330 Manual Actually Covers

This is not a service manual, but the factory operator’s guide – the one that came with the tractor from the dealer. It covers safety decal locations, instrument panel functions, start-up and shut-down sequences, PTO operation, three-point hitch adjustments, and basic maintenance intervals. The table of contents starts with a full safety chapter (page 5) that includes warnings about stabilizer cables and battery handling. Chapter 4 (Instruments and Controls, starting page 18) breaks down every gauge, lever, and switch – from the fuel gauge to the differential lock lever. If you need to know which position the hydrostatic control pedal has to be in before the engine will crank, it is in there.

Get the Safety Data Before You Start

Page 5 of this manual lists the safety decals and their positions on the tractor. I have worked on enough tractors to know that a missing or faded decal is a lawsuit waiting to happen. The manual tells you where each one goes and what it warns about – rollover hazard, no riders, PTO entanglement. It also covers the correct way to jump-start the battery (page 10) without frying the ECU or sending acid everywhere. If you skip the safety section, you are not just being lazy – you are risking your fingers or your life.

Instrument Panel and Controls: Page 18

Turn to page 18 and you will find the full instrument panel layout. The manual identifies each warning light: charge indicator, coolant temperature, fuel level, and tachometer. It also explains the PTO switch, the hazard light switch, and the headlight high-beam control. There is a subsection on the hydrostatic transmission control lever (page 24) and the mechanical gear shift pattern (page 24-25). If you are swapping between a hydrostatic and a Manual Transmission model, the differences are spelled out step by step. Do not assume that the shift pattern on your neighbor’s TH 4290 is the same as yours – it depends on the transmission option.

Hydrostatic vs. Manual Transmission: Which One Is in Your Tractor?

The TH series came with two transmission choices: a mechanical gearbox with a clutch pedal and a hydrostatic drive with a single pedal control. This manual covers both. The section “Getriebeschalthebel und Bedienelemente (Hydrostatisches Getriebe)” shows the hydrostatic control pedal positions for forward, neutral, and reverse. It also explains the range shift lever for low/high speeds. If you have the mechanical transmission, the gear shift pattern is diagrammed on page 25. Knowing which transmission you have affects how you check the oil level, adjust the clutch, or troubleshoot a no-move condition. The manual also includes the differential lock lever and the four-wheel-drive engagement lever – both critical when you are stuck in mud or pulling a heavy load. For more on how manual transmissions work in general, check Manual Transmission basics.

Why You Need the OEM Manual – Not a Reprint

Third-party aftermarket manuals for these Iseki tractors often skip the safety warnings, omit the correct lubricant specifications, and use generic diagrams that do not match your model. This is the genuine 2004 factory release – 68 pages, original German/English layout, with all the decal positions and torque values that Iseki stamped on the line. The manual also includes the model/serial number locations (page 15) so you can confirm you have the correct one. I keep a copy of the OEM manual for every tractor I work on; it saves me from calling the dealer for a part number or a fluid capacity. If you want to avoid a mistake that costs you a weekend and a tow bill, get the factory document.

3 Critical Sections You Cannot Skip

First: the safety decal locations (page 5). If a decal is missing, order the correct one from the dealer using the part numbers listed in the manual. Second: the PTO engagement procedure (page 22). The manual tells you to disengage the PTO before starting the engine, and it shows which lever position locks the rear PTO versus the mid PTO. Third: the battery maintenance and jump-start procedure (page 10). I have seen a reverse polarity hookup fry the alternator diodes on a TH 4330 – the manual has a warning about that. Do not skip any of these unless you enjoy buying replacement parts.

Who Should Buy This Manual

If you own a TH 4260, TH 4290, or TH 4330 and want to operate it safely, maintain it correctly, and understand what every lever does, this is for you. It is also for the backyard mechanic who helps a neighbor with a non-starting tractor and needs the factory starting sequence (page 8). The language is German/English, but the diagrams are universal. I have used it to train a high-school helper on PTO safety. The 68 pages cover everything from how to engage the parking brake to how to read the fuel gauge. Do not buy a generic manual that leaves out the hydraulic filter change interval – buy this one.

Related factory manuals you should look at: Iseki TG5330, TG5390, TG5470, SSM72 User Manual – Factory OEM, Iseki SXG216 User Manual – Factory OEM Documentation, Iseki SL14H User Manual – OEM Factory Operator’s Guide.

Is this manual in English?

The original document is in German, but the same PDF includes an English translation section. The diagrams are universal.

Does it include torque specifications for the wheel lugs or engine bolts?

This is an operator’s manual, not a service manual. It covers controls, safety, and basic maintenance – oil change intervals, battery care, PTO operation. For torque specs on head bolts or wheel lugs, you need the factory service manual for the TH series. This manual does list tire inflation pressures and fluid capacities, but not fastener torque values. If you need those, look for the Iseki shop manual.

Stop relying on hearsay and faded photocopies. Access the Factory Manual and put it on your tablet or print it out. Keep it in the tractor toolbox. You will use it every time you start a new job or teach someone else how to operate the machine safely.
