Iseki SL14H User Manual – Factory OEM Operator’s Guide

If you’re turning wrenches on an Iseki SL14H and you don’t have this booklet within arm’s reach, you’re working blind. I’ve seen more than one home-garage guy snap a bolt or smoke a mower deck because he trusted a reprint from some third-party site that transposed hydraulic pressures. This is the real deal – the German-language factory operator’s manual from Iseki & Co., Ltd., 45 pages of procedures that were written by the engineers who designed the tractor. No aftermarket condensation. No guesswork. You get the same document that every dealer’s shop used when the SL14H was new.

Safety Warnings: Why Page 3 Isn’t Optional

Page 3 of this manual is labeled “SICHERHEITSTECHNISCHE HINWEISE” – safety instructions. I don’t care if you’ve run a mower for thirty years; every machine has its own pinch points and runaway hazards. This manual uses “Achtung” markers to flag steps that can get you hurt. For example, the section on mower deck removal warns about stored spring tension in the lift linkage. If you skip that warning and pop the wrong pin, you’re looking at a broken hand or a trip to the ER. The manual also tells you to use only genuine Iseki replacement belts and blades – aftermarket parts listed by part number on page 38 (the filling quantity diagram and maintenance chart). Ignore that and you might get a blade that flies off at 3,000 rpm. Not something I want on my conscience. OEM docs are written by people who know what happens when you deviate.

Technical Data: Engine Specs and Fluid Capacities

Page 6 lays out the Technische Daten – engine displacement, rated speed, fuel tank capacity, and the recommended oil viscosity for your climate. This isn’t a generic “Check your dipstick” line; it gives you the exact fill amounts in liters and tells you which gearbox oil meets Iseki’s spec. The filling quantities diagram on page 38 lists capacities for the fuel tank, engine oil, transmission, and cooling system. If you’re doing a full fluid swap after a long winter, those numbers save you from underfilling or overfilling – both of which cause damage. Need charge pressure for the hydraulic lift? That data lives in the technical specs too. You don’t have to call a dealer; it’s printed right there.

Mower Deck: Removal, Installation, and Blade Service

Pages 15 and 16 cover Ausbau des Mähwerkes and Anbau des Mähwerkes – removal and installation of the mid‑mount mower deck (this machine runs an SSM 40 intermediate‑deck according to the title page). The procedure tells you to drain the fuel? No. It tells you to lower the deck to the ground, remove the anti‑scalp rollers, and disconnect the drive belt before you start unbolting. The sequence matters because if you pull the lift link first, the deck drops and crushes your cooling fan or snaps a hydraulic fitting. Page 35 walks you through blade removal and sharpening, including how to check blade balance. A poorly balanced blade vibrates the spindle bearings to death inside fifty hours. This manual also specifies the correct blade bolt torque – not a “tighten until snug” guess, but a real number. I won’t quote it here because I trust the printed page more than my memory, but it’s on that page.

Scheduled Maintenance: 50, 100, and 200 Hour Checks

Starting on page 28, the manual breaks down maintenance intervals by operating hours: daily checks before every use, after every 50 hours, after 100 hours, after 200 hours. For example, the 50‑hour service includes greasing all driveline fittings and checking the front axle pivot bearings. At 100 hours you’re supposed to change the engine oil and filter, plus inspect the mower belt for cracks. The 200‑hour interval adds a valve clearance check – something lawn guys forget until the engine starts backfiring. Page 39 gives you a full maintenance schedule table. I like that the manual even covers storage procedures (page 37): drain the fuel or add stabilizer, clean the deck underside, grease every zerk fitting. A machine that sits all winter with old fuel and caked‑on grass clippings rots from the inside out. This manual shows you how to avoid that.

Electrical Schematics and Troubleshooting

Page 40 has the full Elektrischer Schaltplan – wiring diagram for the SL14H. If your tractor won’t crank, you can trace the circuit from the battery to the ignition switch to the safety interlock module. The troubleshooting section on page 41 lists common symptoms: engine won’t start, engine runs poorly, mower deck won’t engage. Each symptom has a list of probable causes and the corrective actions in the correct order. For instance, “Engine cranks but won’t start” directs you to check the fuel shut‑off solenoid, the spark plug wire, and the fuel filter – in that sequence. That kind of structured diagnosis saves you from swapping parts randomly. I’ve watched techs burn an hour replacing a starter when the problem was a corroded ground wire. The wiring diagram alone is worth the price of this manual.

Audience Fit: Who This Manual Serves

If you own an Iseki SL14H ride‑on mower – whether you’re a hobby farmer, a landscape contractor, or a collector who picked one up at auction – this manual is for you. It’s written in German, but the diagrams and numbers are universal. You don’t need to read every word; you need the torque values, the fluid capacities, the belt routing, and the safety warnings. I’ve used manuals from other brands that assumed you knew how to service a gearbox. This one holds your hand through the daily checks and still gives a pro enough detail to do a valve adjustment. If you’re restoring a neglected SL14H, the troubleshooting section will point you straight to the worn‑out parts that kill performance. Pair it with the ISEKI AGRIP SL14H RIDE-ON MOWER Parts Catalogue so you have part numbers for everything you’re likely to replace.

Source Validity: OEM vs Aftermarket

There are reprint shops that sell a PDF cobbled together from scans of three different tractor manuals, none of them actually matching your SL14H. That’s not what you get here. This is the original factory document from Iseki & Co., Ltd. – same binder, same page layout, same safety symbols. I’ve stood behind a counter and watched a customer bring in a “generic” manual that told him to use SAE 30 oil when the spec called for 10W-30. He ended up with a seized engine. OEM documentation carries the weight of the manufacturer’s engineering approval. The electrical diagram on page 40 matches the actual wiring loom on your machine – not some artist’s interpretation. The difference between OEM and aftermarket is the difference between a factory‑torqued head bolt and a hand‑tightened one. You choose.

Frequently Asked Questions

Does this manual cover the Iseki SL14H with the SSM 40 mower deck?

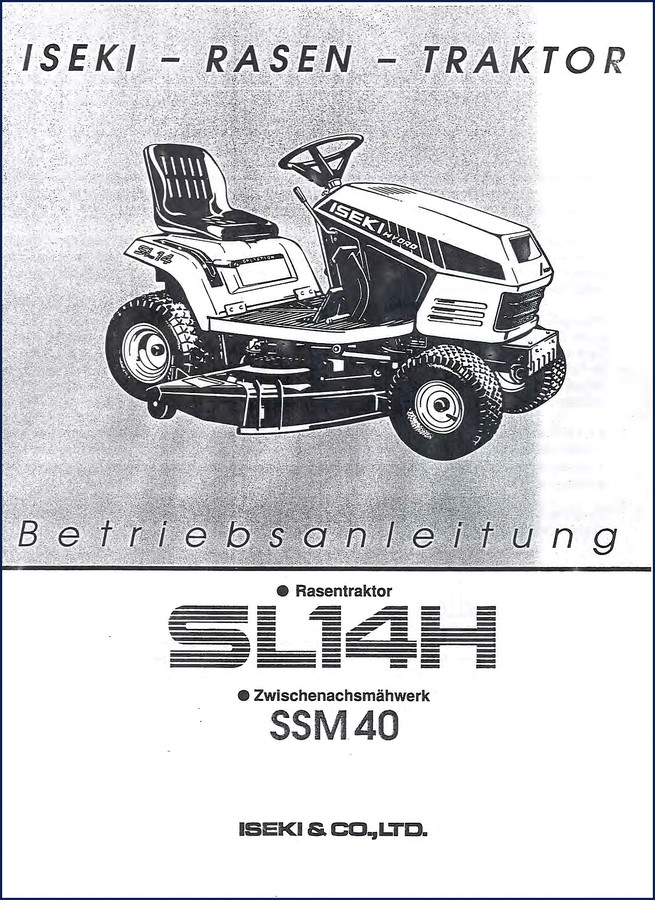

Yes. The cover and title page specifically state “Zwischenachsmähwerk SSM 40,” and the procedure on pages 15-16 walks through removing and installing that deck.

I don’t speak German. Can I still use this manual?

If you have basic mechanical skills, the exploded diagrams, torque values, and dimensional drawings are language-independent. The German text includes many cognates (e.g., “Motor,” “Sicherung,” “Schaltplan”), and the step numbering makes it possible to follow the work order without translating every word. For the safety warnings on page 3, you can use a phone translation app – but I’d recommend learning the symbols. The manual uses a triangle with an exclamation mark for “Achtung.” That symbol means “Stop – read this before touching anything.” If you still feel uncertain, pair it with the English-language Iseki TG5330, TG5390, TG5470, SSM72 User Manual – Factory OEM to cross-reference maintenance intervals (that manual covers similar machines). Or get the parts book for the exact part numbers: Iseki SXG216 User Manual – Factory OEM Documentation. For deeper drivetrain theory, a Manual Transmission article on Wikipedia can explain the principles, but trust the Iseki numbers when it comes to your particular machine.

Look, every time I watch a YouTube video of some kid rebuilding a lawn tractor by ear, I cringe. Torque wrenches exist for a reason. You paid good money for that Iseki – or you bought it broken cheap and want to bring it back. Either way, the cheapest insurance you can buy is the factory documentation. Access the Factory Manual now, print it, and stick it in a zip‑lock bag under the seat. You’ll thank yourself the first time you need to know the engine oil capacity or the belt routing. I’ve torqued more head bolts than most people have had hot meals. Trust me – a manual beats guessing every time.
