Iseki SXG216H Parts Catalog – No Guesswork on Parts Orders

If you’ve ever ordered a part that didn’t fit—or worse, one that put the machine down an extra week—you know the frustration. That’s what this Iseki SXG216H Parts Catalog was built to kill. Printed from the OEM factory file, 122 pages of diagrams, part numbers, color codes, and serial number layout. Not a reprint, not a third-party scan—original factory documentation that tells you exactly what goes where and how to order it right the first time. No hunting through online forums hoping someone posted a screenshot.

I’ve been torquing bolts in San Antonio since the 80s, and I tell you: if you’re working on an Iseki SXG216H and you don’t have this catalog open on the bench, you’re guessing. Guessing costs time. Time costs money. And if the part shows up wrong, you’re eating the return shipping. This catalog covers every component and option part used for SXG216H lawn & garden tractors, broken down by model type (HST, WITH SEAT) and area code (EUROPE).

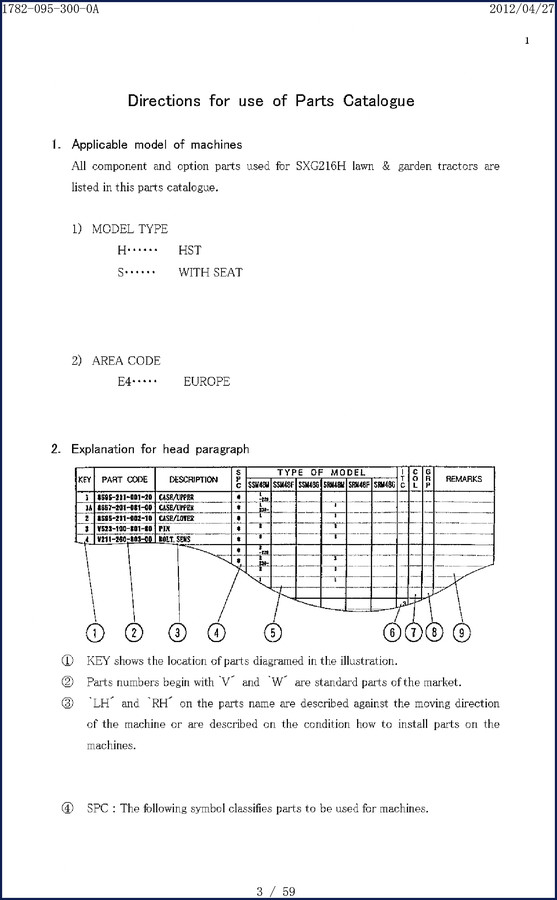

Directions for Use of Parts Catalogue – Real Structure

The manual opens with a section titled “Directions for use of Parts Catalogue.” That’s not filler. It tells you how to read the key, part numbers, and the columns for QTY, ITC (interchangeability), and COL (color code). For example, a part number starting with V or W means it’s a standard market part. The key number in the diagram points to a line in the table. Sounds basic, but get it wrong and you order a CASB/OFFEE instead of a CASB/SEAT. The catalog explains that LH and RH are described against the moving direction of the machine—critical when you’re ordering steering components or body panels.

Model Type and Area Code – Why They Matter

Under “Applicable model of machines,” you’ll find the breakdown. Model type: H = HST, S = WITH SEAT. Area code: E4 = EUROPE. These letters determine which variation of a part fits your machine. If you skip this step, you might end up with a seat bracket meant for a non-HST tractor. The catalog lists each part with the model types it fits, so you compare your machine’s code before ordering.

Serial Numbers: Where to Find Them

On page 3 (and referenced at the start of the manual), the serial number locations are given. For the engine, the serial number is stamped on the CYLINDER BLOCK ASSY. For the chassis, it’s on the label. Without that number, you can’t tell if your machine falls before or after a production change. The catalog uses serial number ranges in the lower column of each entry—e.g., “–229” means up to serial 229, “230–” means from 230 onward. If you ignore that, you get a part that doesn’t match the revision.

Color Codes and Paint Matching

One section you won’t find in aftermarket parts lists: the color code table. The catalog lists spray type paints, 4K drum paints, and 16K drum paints with their Iseki part codes. Colors like 6G SUMMER WHITE, 4L NEO BLUE, and 7F MIRROR BLACK. If you need to paint a fender or hood after replacement, this page saves you from buying five different rattle cans. The catalog notes that color code is signified only for parts assigned by the maker as color parts—so not every bracket gets a paint code.

Parts Order Rules – Do It Right the First Time

The “Parts Order” section lists three rules. One: when you order, make sure of correct numbers. Two: if a substitute part exists, the old part number automatically turns into the new one when ordered—you don’t get a choice. Three: use ISEKI GENUINE PARTS. That’s not a sales pitch—it’s because aftermarket parts often have different specs, and the catalog’s interchangeability column (ITC) tells you if an old part supersedes a new one (1), new supersedes old (2), or they’re not interchangeable (3). You want to guess that? I didn’t think so.

Why OEM Documentation Beats Aftermarket

Aftermarket parts catalogs for the SXG216H often leave out the serial number ranges, the paint codes, and the “key” explanations. They might copy the diagram but delete the footnotes. This Automotive Industry Overview points out that OEM documentation is the only source that matches the production line specs. The catalog you’re looking at came directly from Iseki’s own file—no editing, no reformatting. That’s why we carry it at AutoRepairManuals. We stock the ISEKI SXG216H Lawn & Garden Tractor Parts Catalogue and related factory manuals like Iseki TS3110 Parts Catalog – Factory OEM Parts Breakdown and Iseki TXG23 TXG23FH TXG23TH TXG23E 2003 Parts Catalog. All OEM, all original.

Can I use aftermarket parts instead of Iseki genuine parts?

You can, but the catalog’s interchangeability column won’t match. Genuine parts have known specs. Aftermarket parts often require modification or don’t fit at all.

Does this catalog include torque values?

No. This is a parts catalog, not a repair manual. It lists part numbers, diagrams, color codes, and ordering rules. For torque specs you need the service manual.

What is the ITC column for?

ITC stands for interchangeability. If it shows “1”, old part can be replaced by new. “2” means new can be replaced by old. “3” means they are not interchangeable—you must order the correct revision for your serial number range.

Where do I find the serial number on my SXG216H engine?

On the cylinder block assy. The manual points you to Fig. 201-1. If you can’t see it, clean the block around the left side near the oil filter.

This catalog is 122 pages, digital, no watermarks. Open it on your tablet or print the pages you need. Access the Factory Manual now and stop chasing wrong parts. Your Iseki SXG216H waits for no one.
