Iseki SF200M, SF230M Parts Catalog – Factory OEM Parts Breakdown

You ever order a part for an Iseki SF200M, SF230M Parts Catalog mower and get the wrong one because the aftermarket listing was vague? I have. These mowers have four-wheel drive, two-wheel drive, HST, and power steering variants – each with different parts. This factory Iseki SF200M, SF230M Parts Catalog is 248 pages of OEM exploded views and part numbers. It tells you exactly what goes where and which serial numbers are affected. No guesswork.

Model Codes Explained: F, T, H, U

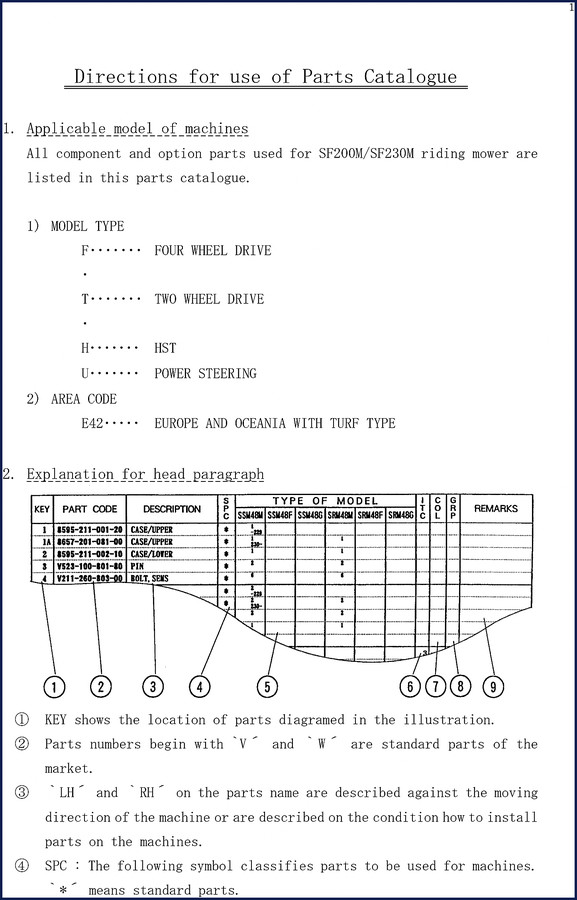

The catalog starts by breaking down the model type. ‘F’ means four-wheel drive, ‘T’ two-wheel drive, ‘H’ hydrostatic transmission, ‘U’ power steering. Then area codes like ‘E42’ for Europe and Oceania with turf tires. You see why a generic parts list won’t cut it? You need to know which drivetrain you have before ordering a transmission seal.

Reading Part Numbers and Interchangeability (ITC)

Every part number is prefixed with ‘V’ or ‘W’ for standard market parts. The catalog uses a three-digit interchangeability code: ‘1’ means new part replaces old, ‘2’ means old works in new, ‘3’ means they’re not compatible. Miss that number and you’re buying a part that doesn’t fit.

Take the steering column bracket assembly in the ‘Steering’ chapter. The exploded view shows each bolt, washer, and spacer with its own part number. The quantity column tells you how many per unit – ‘M’ for meter length of hose, ‘l’ for liter, ‘AR’ for adjust as required. The lower column gives the serial number range: for example, -229 means parts for machines up to serial 229; 230- means from 230 onward. If you ignore that range and order a bracket for a later serial machine, the mounting holes might be off by 5mm. I’ve seen that happen.

The notation ‘LH’ and ‘RH’ refer to the direction of travel – not the operator’s perspective. I’ve seen guys flip a steering arm because they didn’t read that. The catalog saves you that headache.

Color Codes and Paint Matching

Parts that are painted get a color code – examples from the catalog: 4L Neo Blue, 7F Mirror Black, 6G Summer White. Each color has a spray can and drum part number. If you’re restoring an old SF200M, you’ll find the exact paint code here. No mixing guesswork.

Serial Number Locations – Find Your Build Range

The catalog tells you where to find the engine serial number (stamped on the cylinder block assy, see Fig. 8-1,1A,1B) and the chassis serial number on the label. These serial numbers determine which revision parts you need. Order a part for serial 229 versus 230 and you might get the wrong bracket.

3 Reasons to Stick with Factory OEM Parts Data

One: aftermarket parts catalogs often reuse images from other models. Two: they omit the interchangeability codes. Three: they don’t show optional parts (marked ‘T’) or replacement parts (‘R’). This catalog lists all of that with the factory ‘SPC’ symbol. You’re paying for accuracy.

If you want to see how OEM documentation standardizes the industry, read the Automotive Industry Overview on quality control. Then compare any aftermarket website to this 248-page document. The difference is night and day.

Factory Original vs Aftermarket – What You Get

This is an original factory scan from Iseki, not a third-party reprint. The parts numbers are registered in Iseki’s on-line computer system. When you call the dealer, you read them the number from this catalog. That works. Aftermarket catalogs sometimes transcribe numbers wrong – I’ve seen ‘1300-985-001-10’ become ‘1300-985-011-00’ in a pirate copy. That extra digit costs you a week.

For other Iseki machines, check the Iseki TS3110 Parts Catalog – Factory OEM Parts Breakdown and the Iseki TXG23 TXG23FH TXG23TH TXG23E 2003 Parts Catalog if you work on those models. Also the Iseki TXG23 Parts Catalog – Factory OEM Parts Breakdown might cover your other mower.

For additional context on why OEM data matters, review the Automotive Industry Overview on manufacturing standards.

FAQ

Does this catalog cover the SF200M and SF230M separately?

Yes – both models are listed together in one catalog.

What is the difference between ‘standard parts’ and ‘optional parts’ in the catalog?

Standard parts are noted with ‘*’ (SPC). Optional parts are marked ‘T’ and can be installed at the dealer; replacement parts marked ‘R’ can substitute originally equipped parts. The catalog also shows interchangeability – if you have an older version, the ITC column tells you whether the new part fits. That’s crucial for models with serial number cutoffs. You might need a part for serial 230 and up, and the catalog shows that in the ‘Lower column’ of the quantity table. Don’t skip that line.

How many pages is the catalog?

248 pages of exploded diagrams, parts lists, and color references.

Can I use this catalog to order parts for my 1980s Iseki mower?

As long as your mower is an SF200M or SF230M, the catalog covers serial numbers from the original production run. Check the serial number section – the catalog includes engine and chassis serial ranges. If you have a later revision not listed, you might need a supplement, but this is the factory baseline.

If you’re tired of returning wrong parts and waiting on backorders, get the data that the factory uses. Access the Factory Manual and keep it on your workbench next to your torque wrench. Your parts counter will thank you.
